18V 24 Volt High Torque DC Planetary Gearbox Gear Motor 20rpm 60rpm 200rpm 700rpm Brushed DC Motor

Product Description

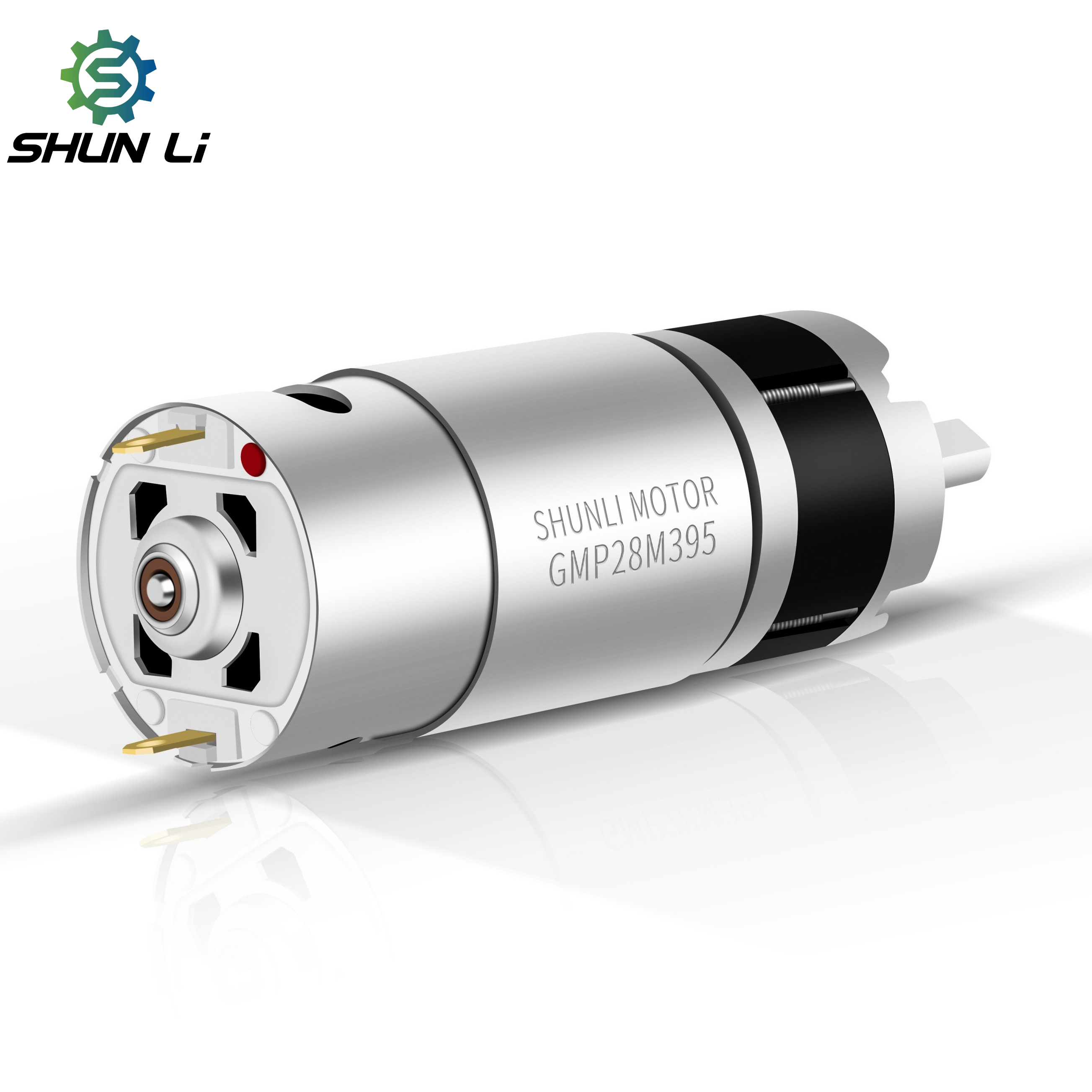

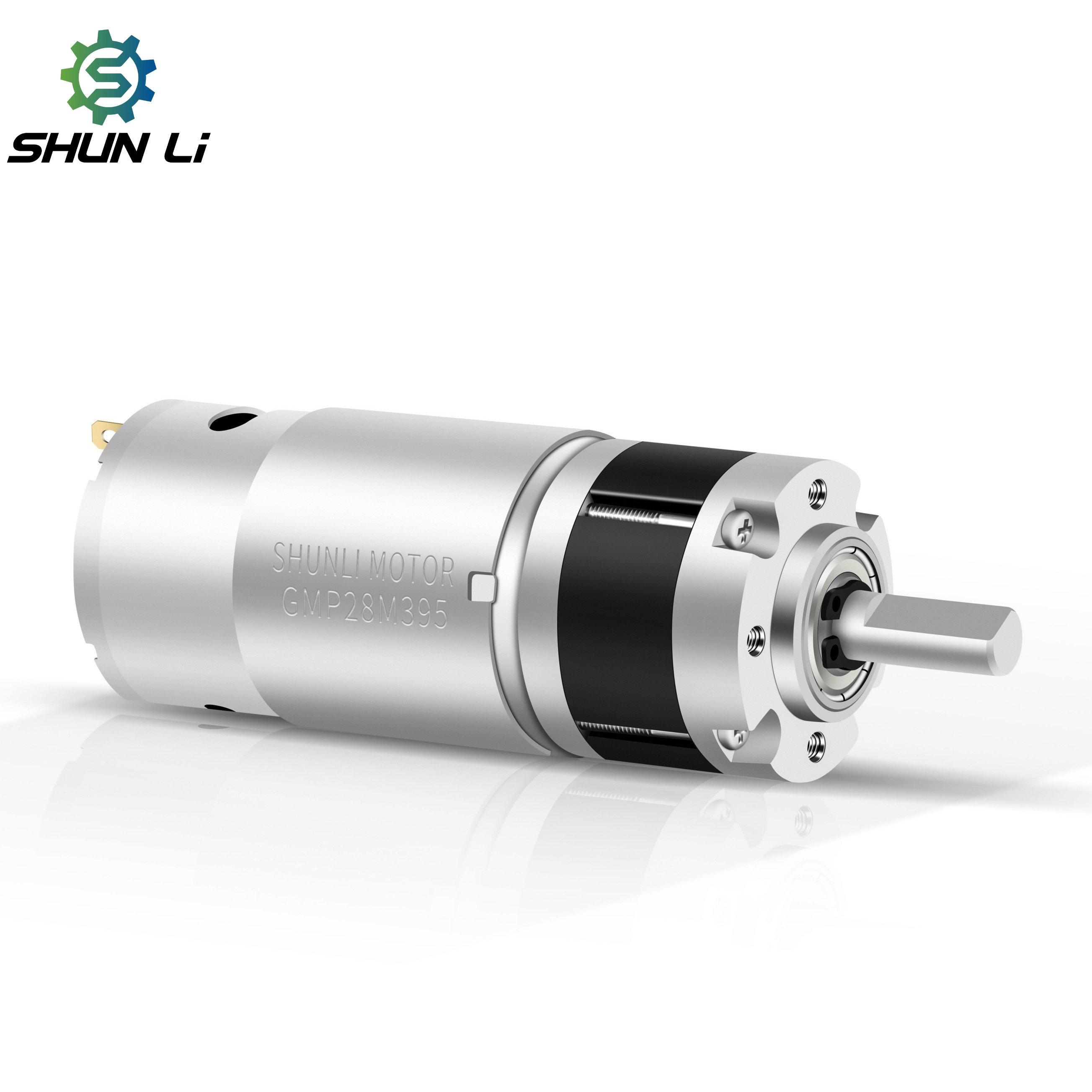

Product Image

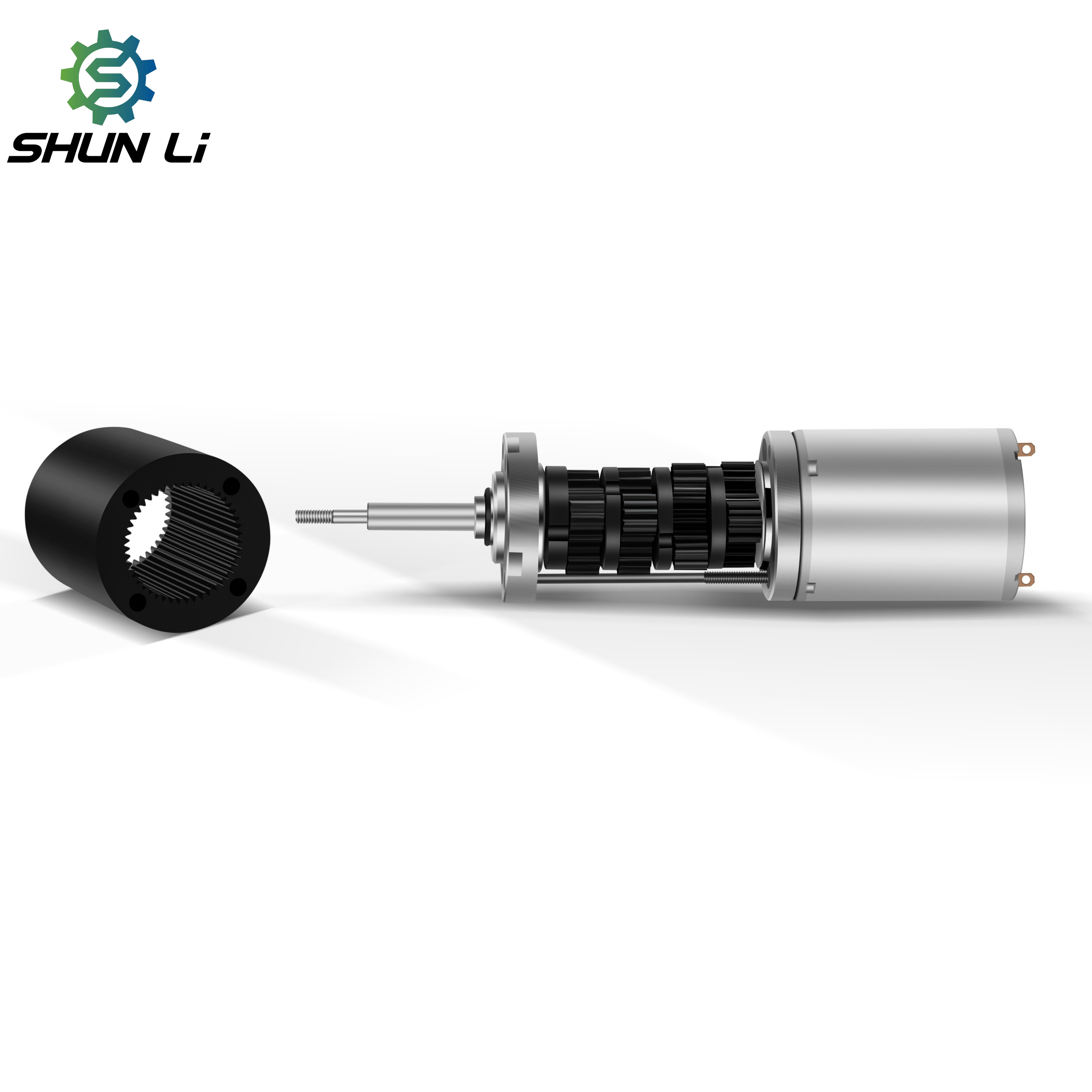

Product Layout

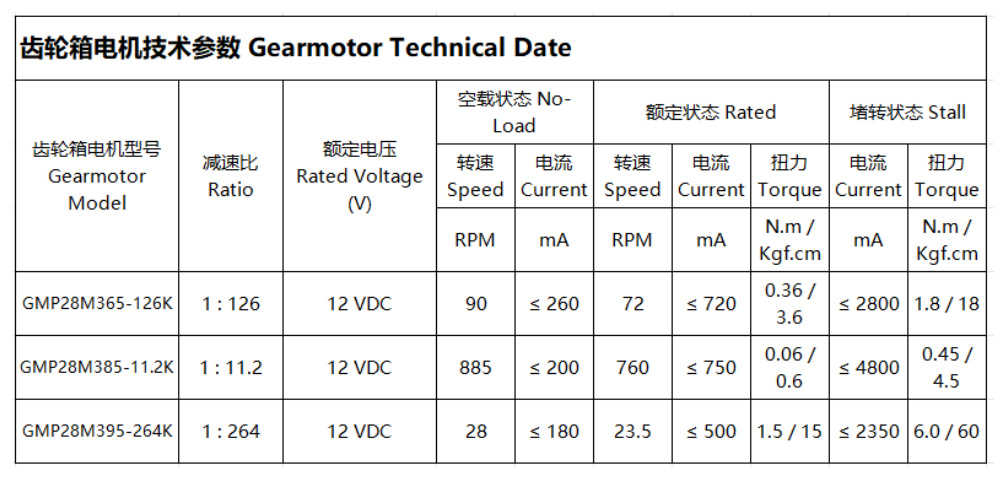

Product Model GMP28M365/385/395
Gearbox Length 21.7~44.8mm
Speed 23.5RPM-885RPM
Voltage 12V
Torque 0.36 N.m/0.06 N.m/1.5 N.m
Support customization The Transmission Dimensions And Motor Parameters Can Be Customized
Product Details

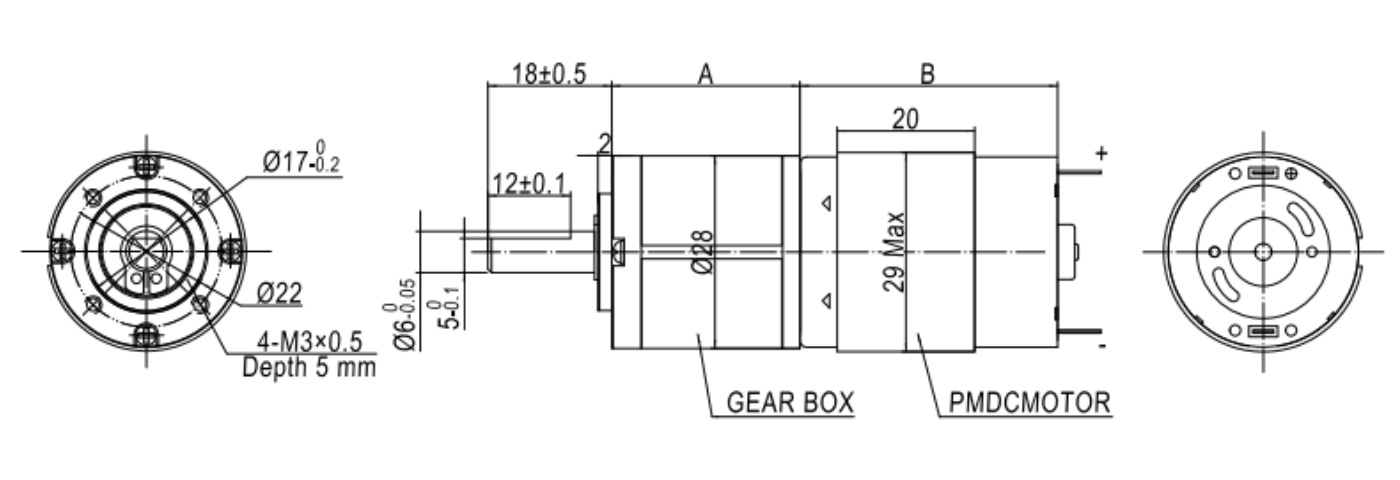

Dimension Drawing
Frequently Asked Questions (FAQ)

QAre you a trading company or a manufacturer?

We are a factory. We specialize in micro DC motors and DC gear motors.

QWhat is the payment term for a new customer?

We can draw up an Ali Assurance Order Online for our new customers, which allows payment online with MasterCard, Visa, etc. Customers can also choose to pay via PayPal, TT, or other convenient methods.

QIf I cannot find a suitable motor on the website, can you customize it for me?

Yes, we can customize a suitable motor according to our customers' specific requirements.

QDo you have certificates for the motors?

Yes, we have CE, FCC, ISO, and other relevant certifications. If you require other specific certificates, we can apply for them for you.

QHow is your Quality Control managed?

We have professional inspection staff on every production line process. Once the complete motor is assembled, we use specialized quality testing machines, such as a Hardness Tester, 2.5D Image Tester, Salt Spray Chamber, Life Tester, Temperature Test Machine, and Noise Tester, to guarantee product quality.

QCan the transmission dimensions and motor parameters be customized?

Yes, we support full customization. Both the transmission dimensions and the motor parameters can be customized according to your project requirements.

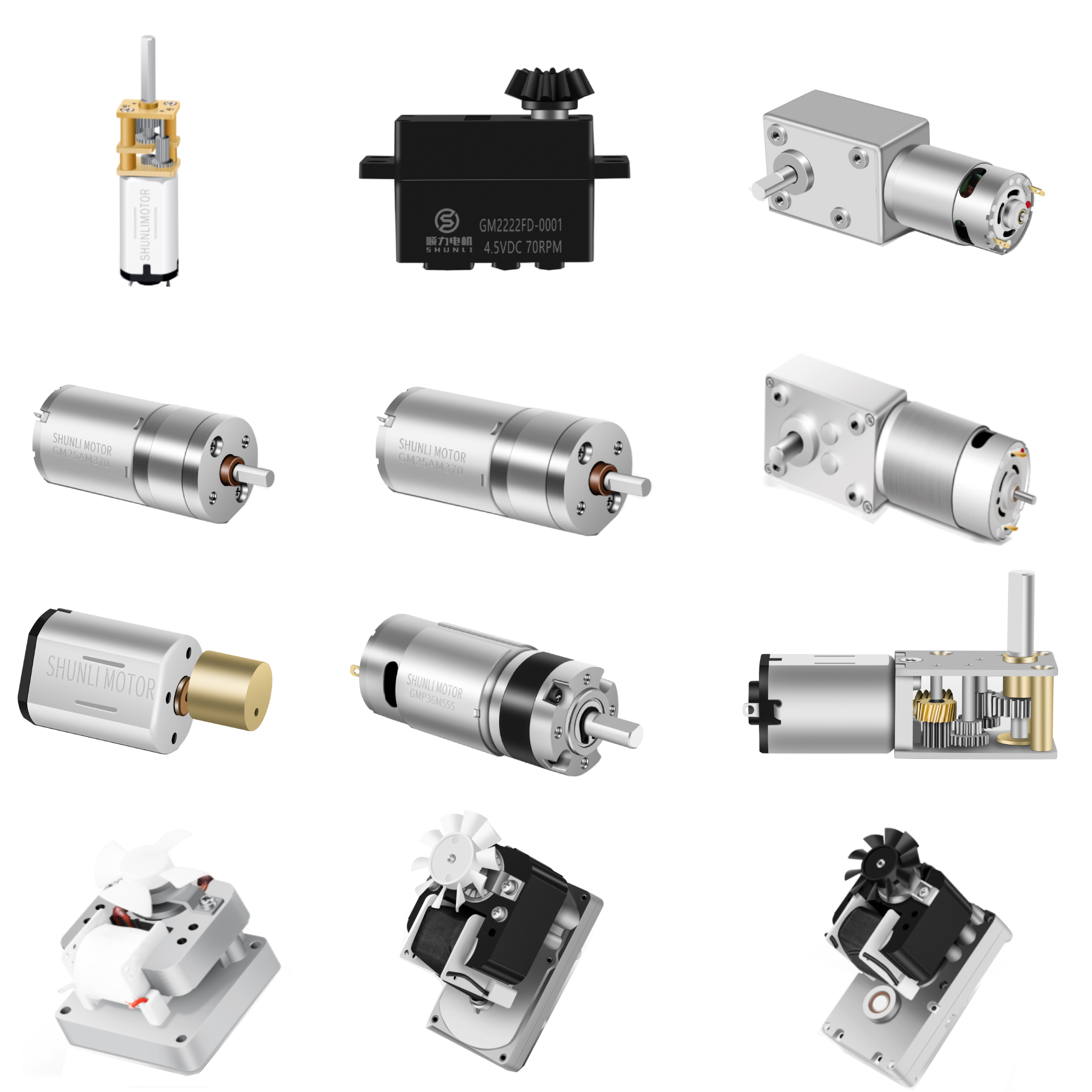

Related Products
