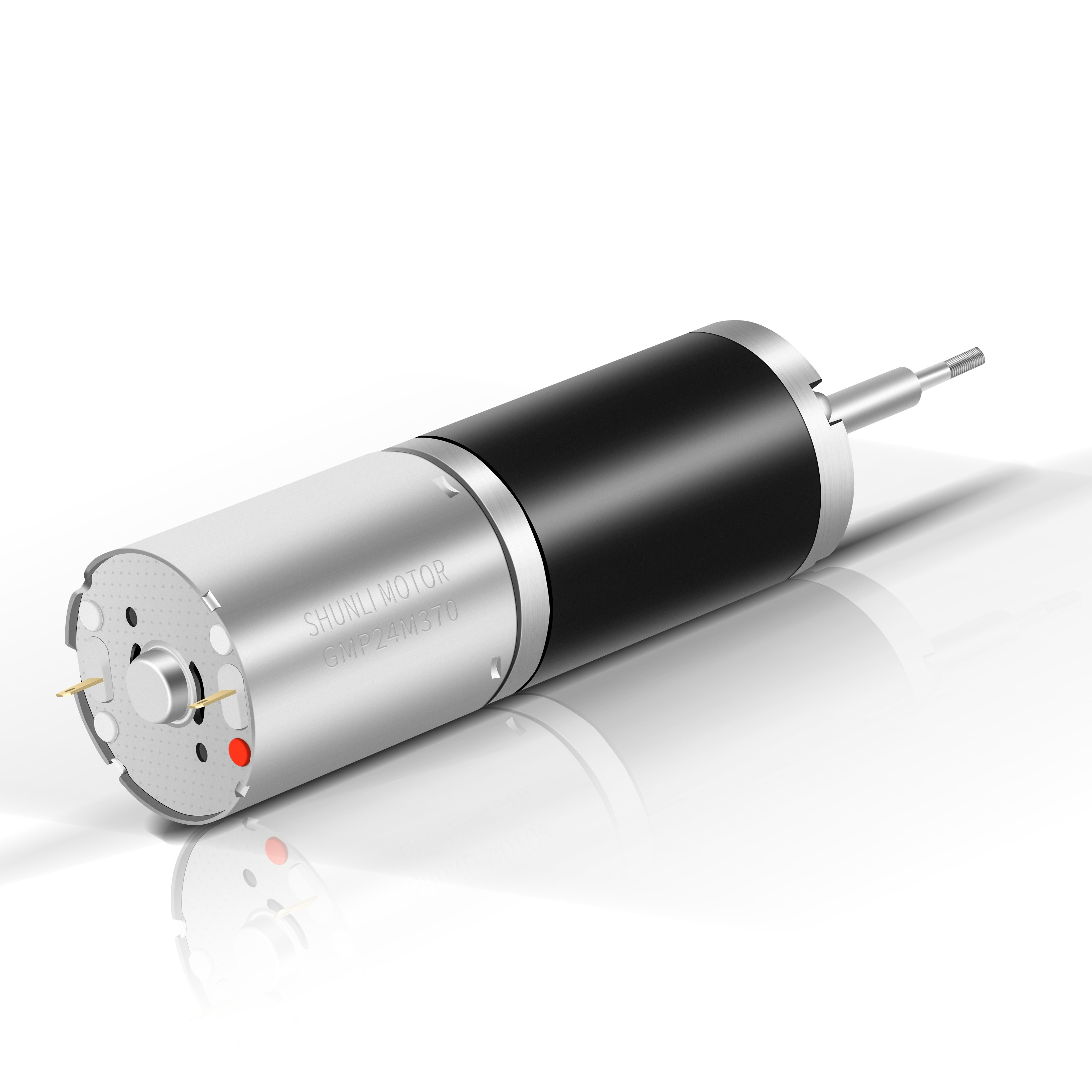

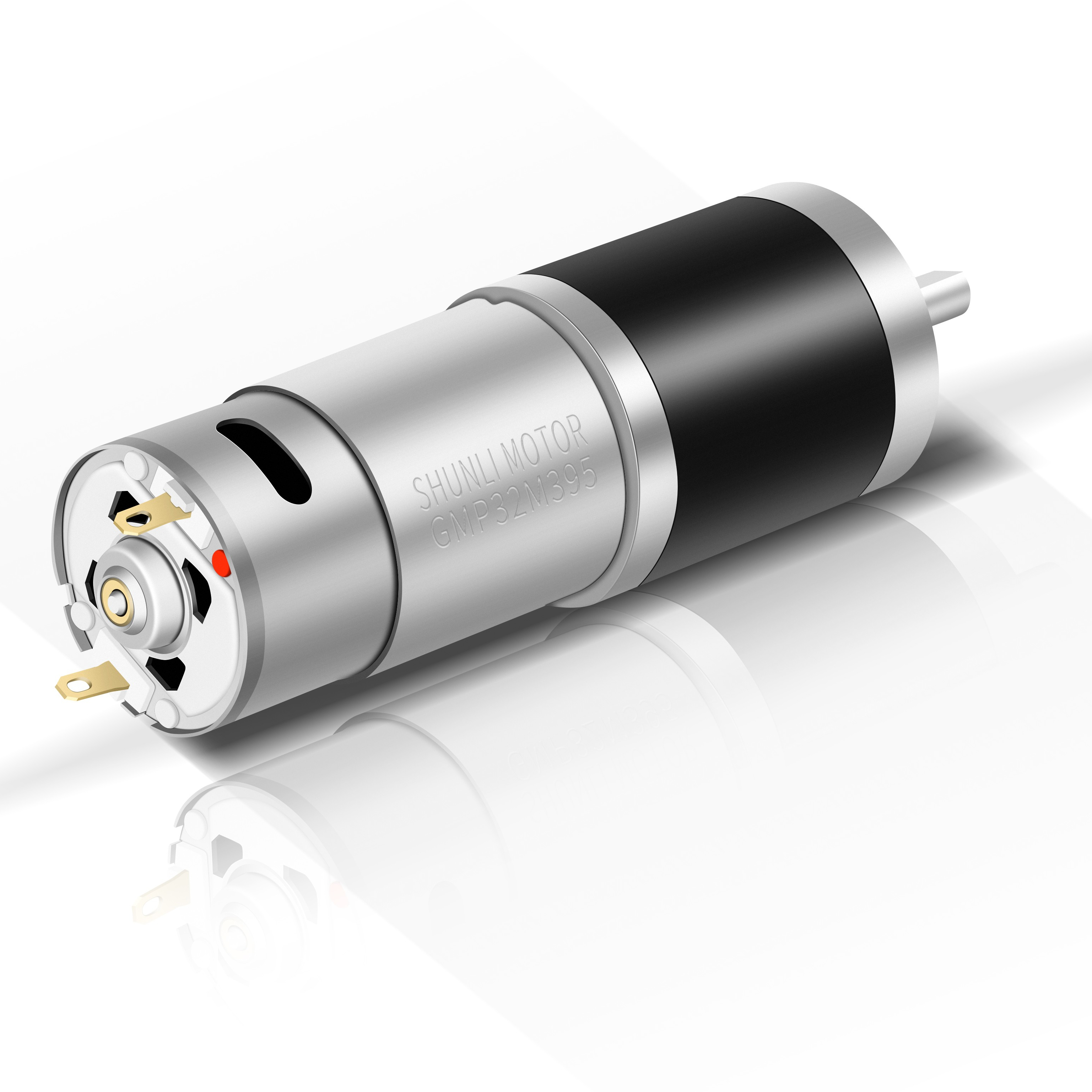

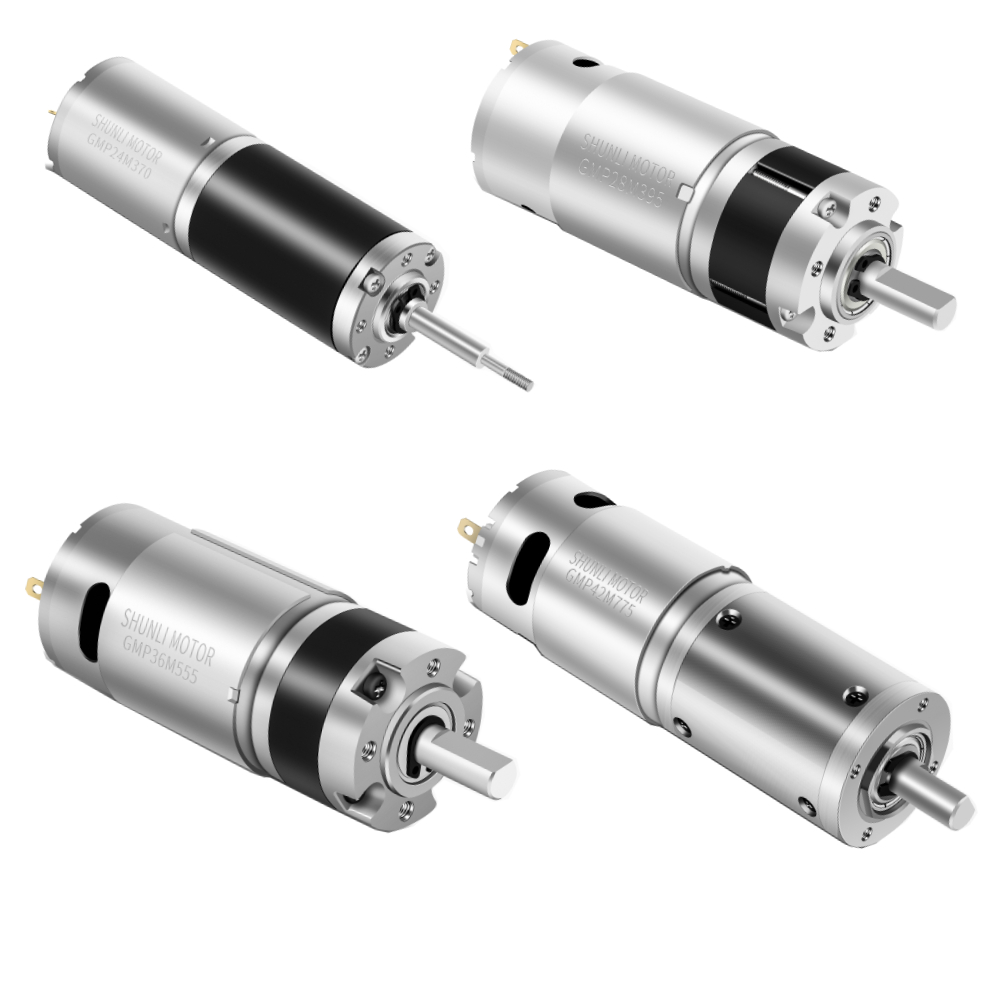

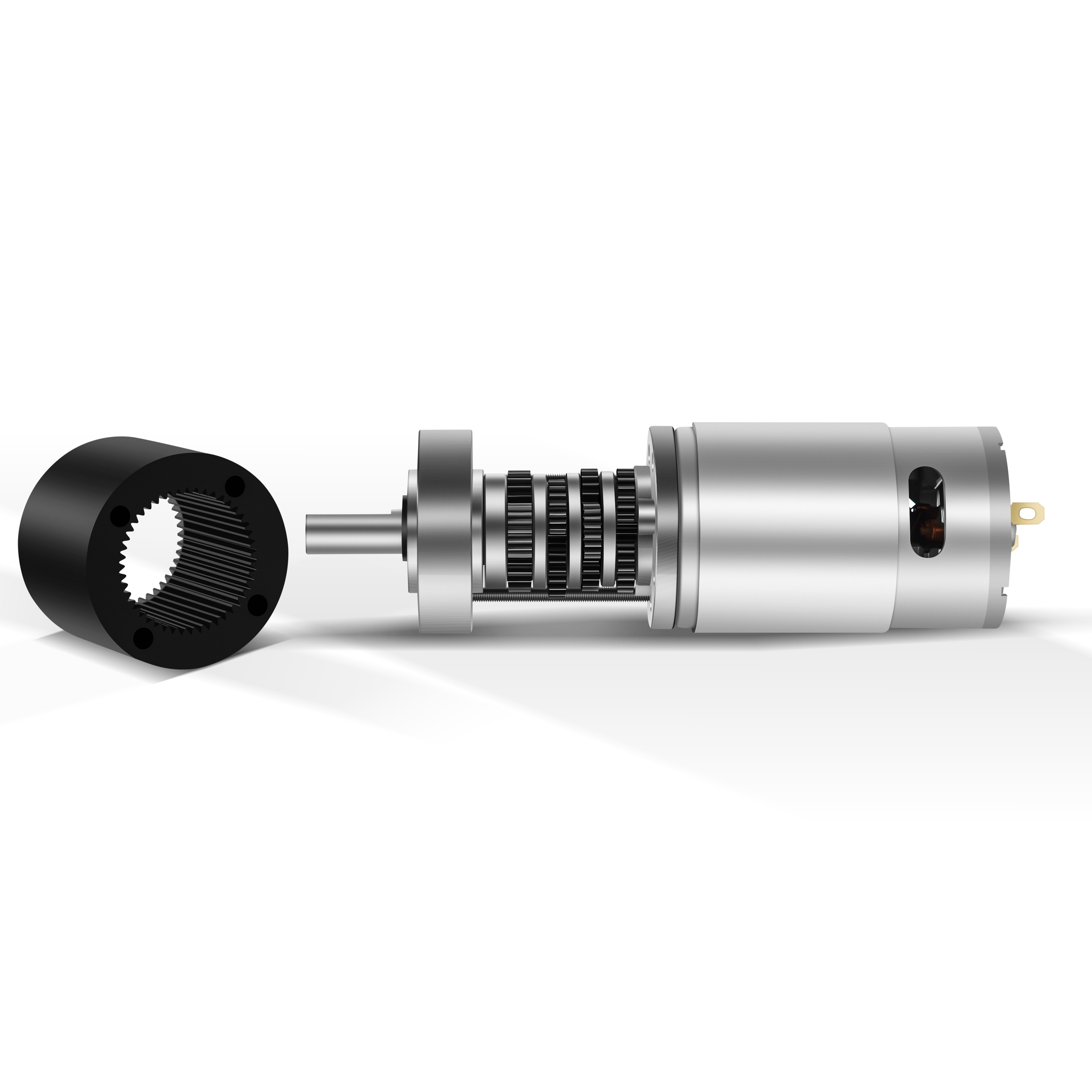

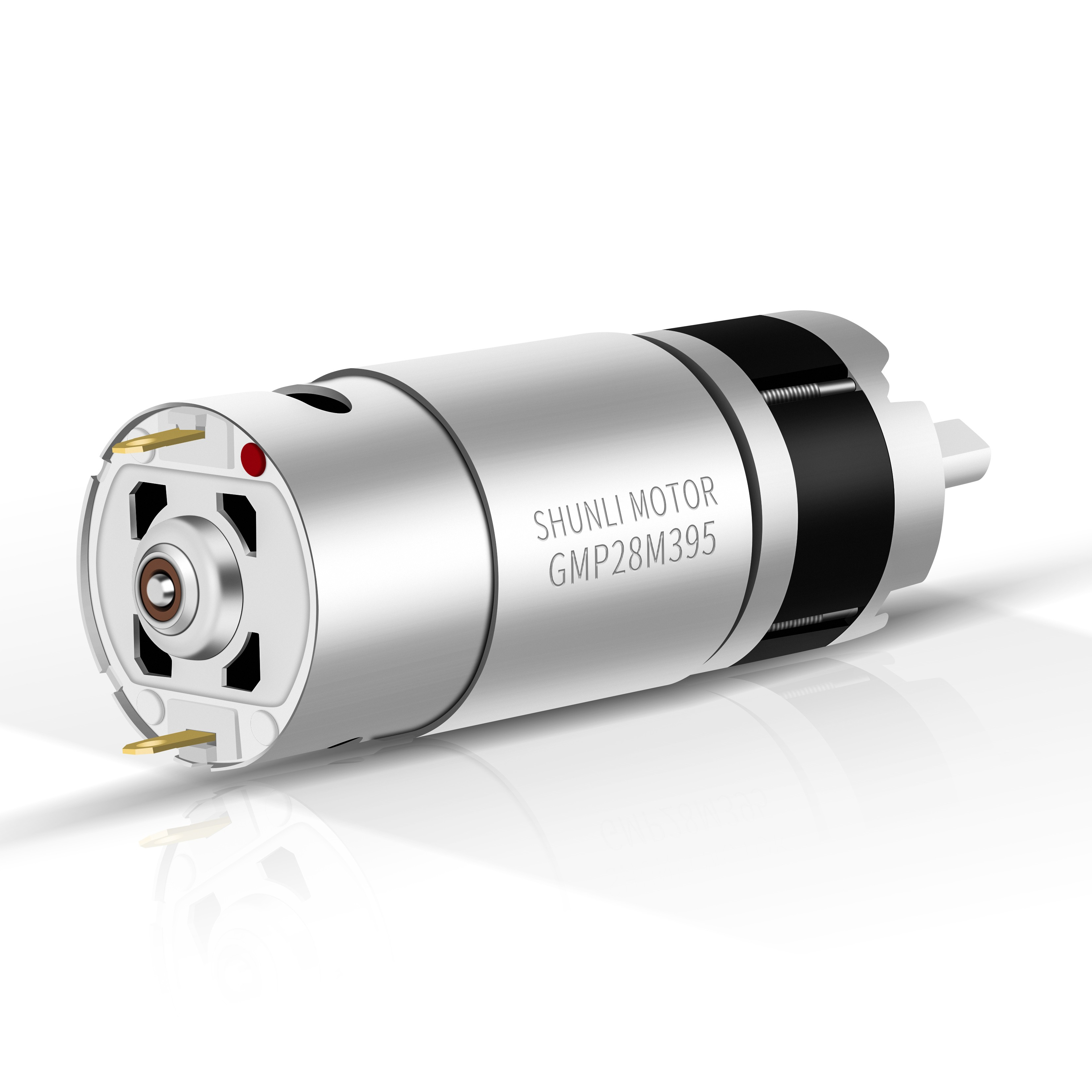

High Torque 12v 24v Brushless Dc Motor with Gear Reduction Planetary Gear Motor for Robot Components

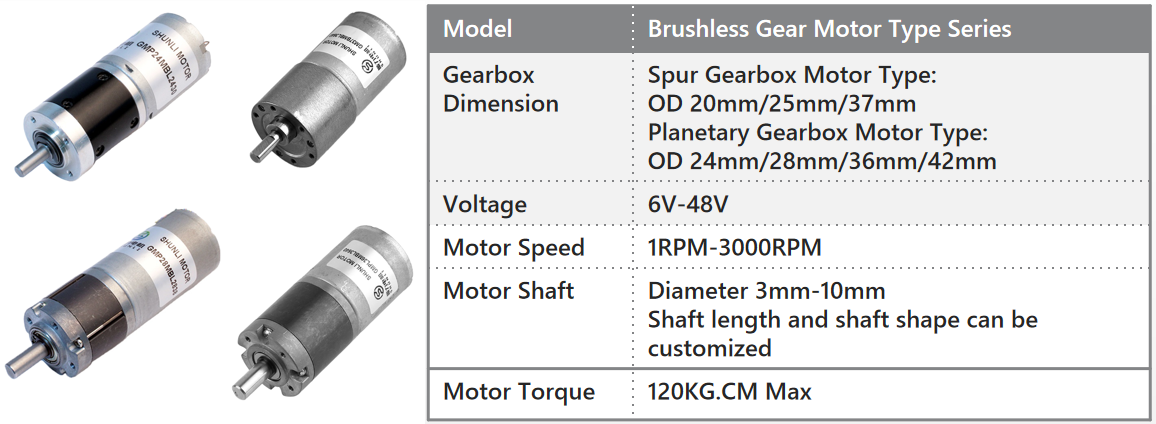

Product Description
| Ratio | 3.4K - 5184K |
|---|---|
| Max. Rated Torque | 0.5~120Kgf.cm |
| Max. Gear Breaked Torque | 180 Kgf.cm |
| Gearbox Efficiency | 45%~95% |
| Gearmotor Model | Ratio | Rated Voltage (V) | No-Load | Rated | Stall | ||||
|---|---|---|---|---|---|---|---|---|---|
| Speed | Current | Speed | Current | Torque | Current | Torque | |||
| RPM | mA | RPM | mA | mN.m / gf.cm | mA | N.m / Kgf.cm | |||
| GM25AMBL2430-217K | 1 : 217 | 12 VDC | 18 | ≤ 120 | 15 | ≤ 200 | 0.45 / 4.5 | ≤ 950 | 0.21 / 2.1 |
| GM37BMBL3657-113QK | 1 : 113 | 24 VDC | 58 | ≤ 400 | 48.5 | ≤ 1400 | 3.0 / 30 | ≤ 7000 | 10 / 100 |
| GMP36MBL3640-27K | 1 : 27 | 24 VDC | 185 | ≤ 300 | 150 | ≤ 750 | 0.45 / 4.5 | ≤ 3000 | 2.25 / 22.5 |
| GMP42MBL4260-325K | 1:245 | 24 VDC | 10 | ≤ 300 | 8 | ≤ 1200 | 6N.M / 60KG.CM | ≤ 4800 | 20/200 |

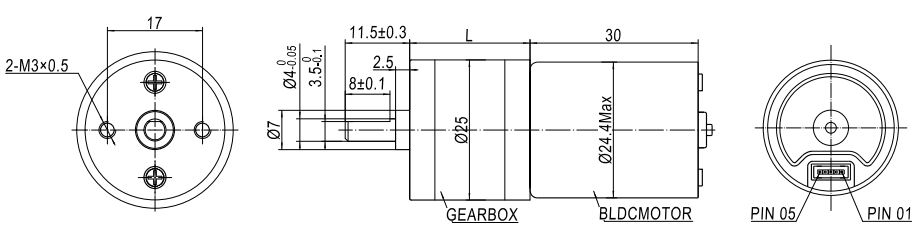

GM25 Motor Type

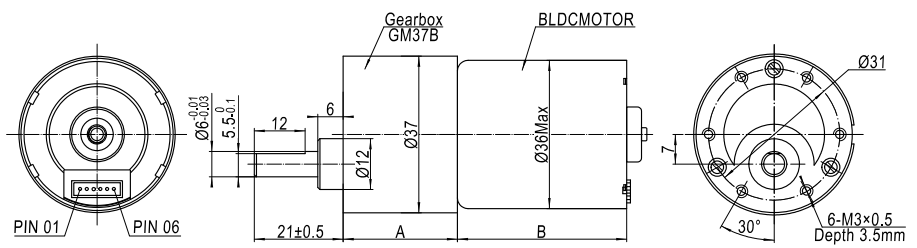

GM37 Motor Type

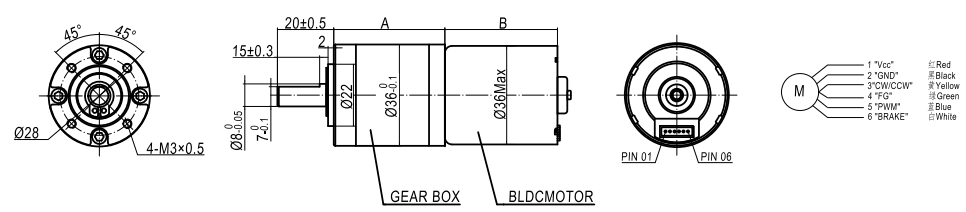

GMP36 Planetary Gear Motor Type

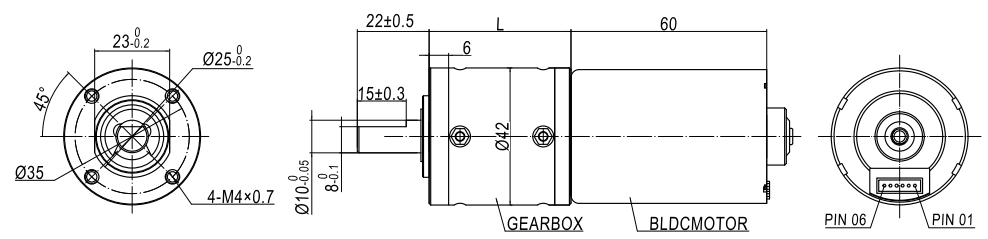

GMP42 Planetary Gear Motor Type
Gold seller with verified high credibility.
100% on-time delivery rate ensures timely arrival.
Standard samples in 2 weeks; Custom samples in 3 weeks.
All technical service inquiries replied within 2 hours.
Are you a trading company or a manufacturer?
We are a factory. We specialize in micro DC motors and DC gear motors with over 14 years of production experience.
What is the payment term for new customers?
We support online payment assurance orders, allowing payments via MasterCard, Visa, PayPal, or TT wire transfers.
I can't find a suitable motor on your website. Can you customize the motor for me?
Yes, we can customize a suitable motor design according to our customer's specific technical requirements and dimensions.
Do you have certificates for your motors?
Yes, our motors are certified with CE, FCC, ISO, and other relevant standard credentials. We can apply for additional certifications if required.

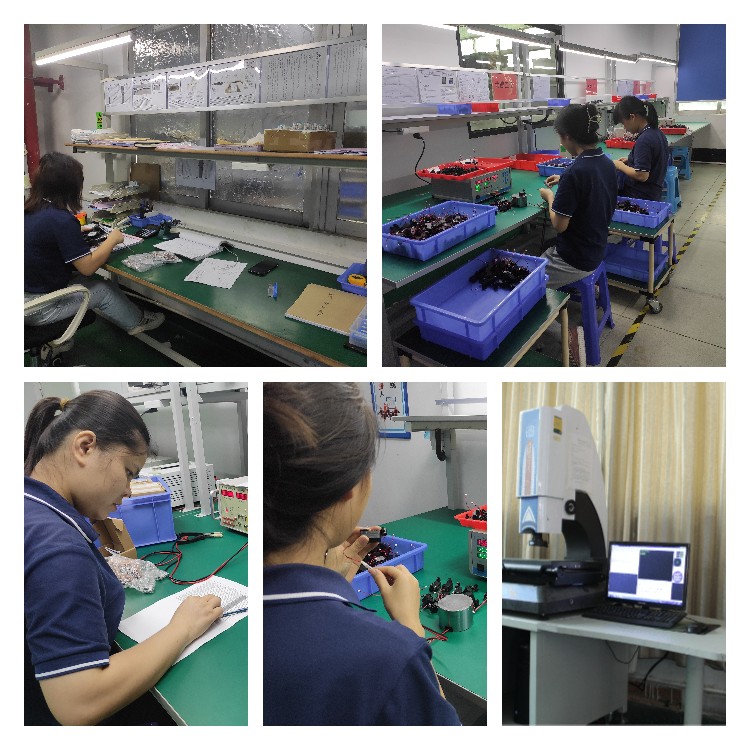

How is your Quality Control managed?
We have professional QA/QC inspectors stationed on every production line. Finished products are thoroughly tested using our advanced testing equipment, including Hardness Testers, 2.5D Image Testers, Salt Spray Chambers, Life Testers, Temperature Test Machines, and Noise Testers.
What are the primary applications of these brushless DC gear motors?
These motors are widely used in high-end transmission applications such as automotive systems, smart home automation, medical equipment, intelligent security devices, communications, and household appliances.
