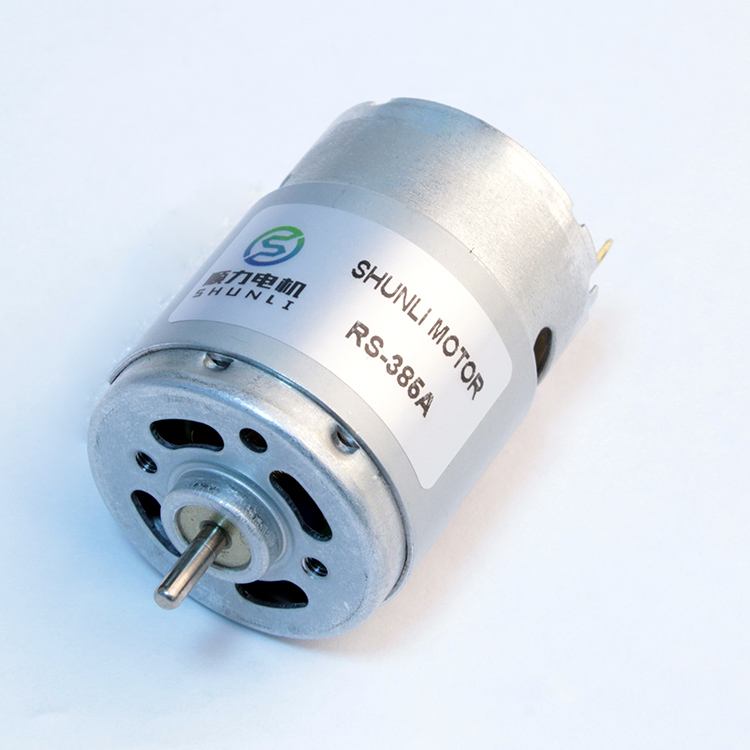

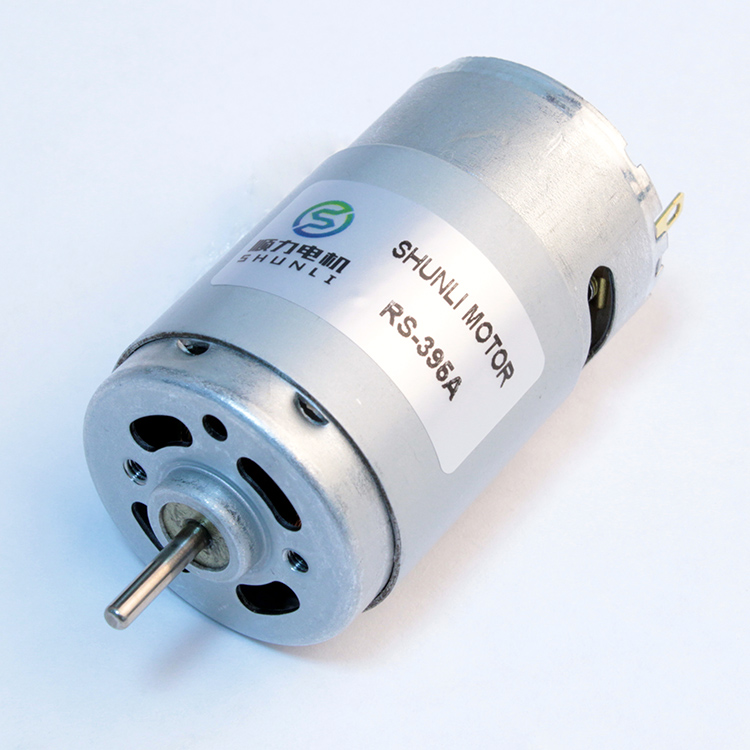

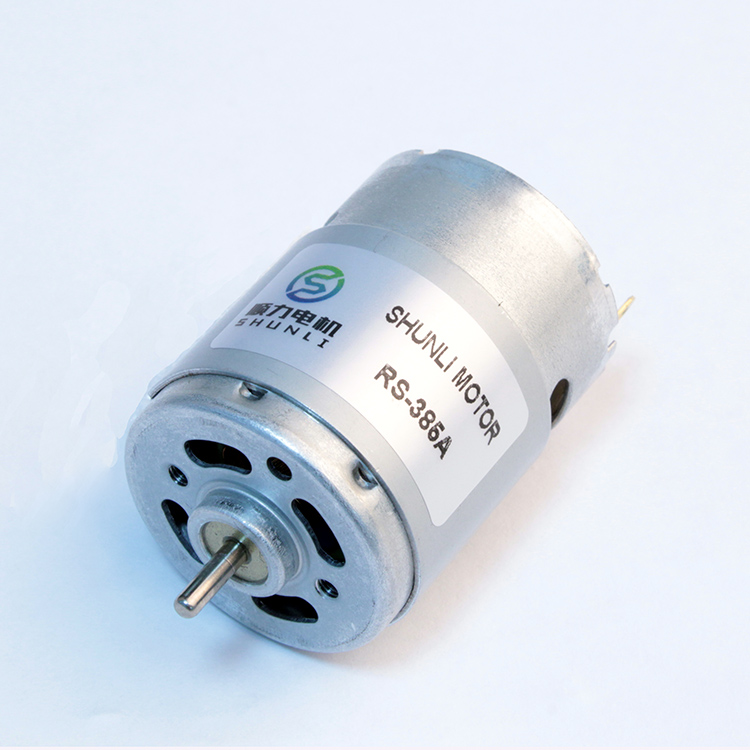

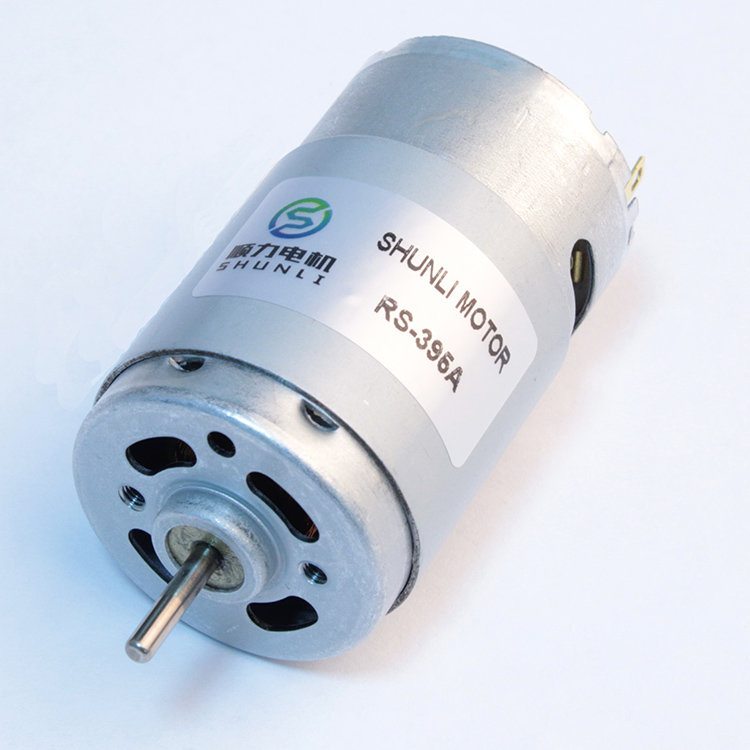

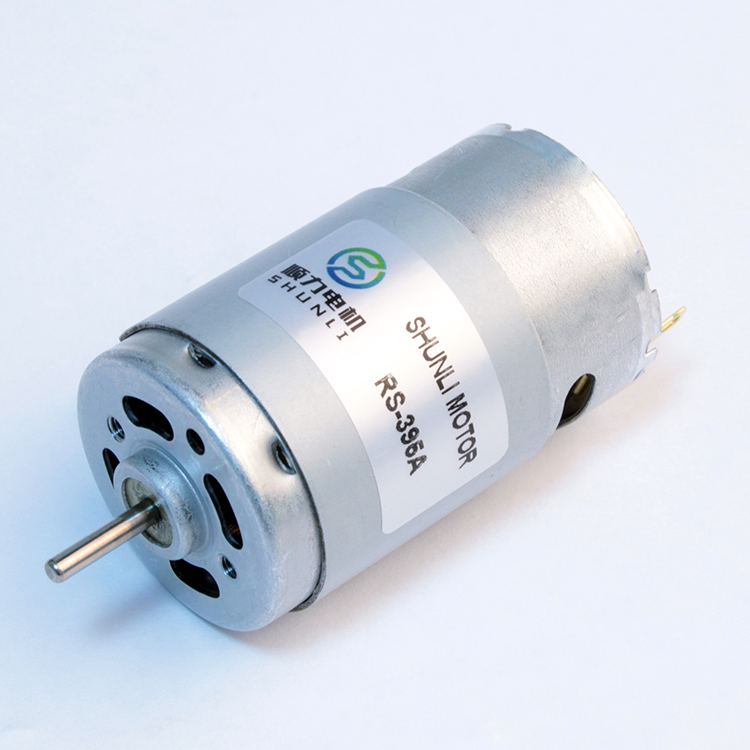

Shunli Custom Professional Manufacturer Hair Dryer and Micro Vacuum Cleaner 390PH 12v Dc Motor Brush Brushless
Product Description
Professional manufacturer hair dryer and micro vacuum cleaner 390PH 12v dc motor
Product Details
💡
Motor Customized Specification, Please contact me.
Reference Drawing
⚡ RS - 365
⚡ RS - 385
⚡ RS - 395
💡
The length of shaft can be customized, Please contact me.
Reference Datasheet
| PMDC MOTOR Technical Date | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Model | Rated Voltage (V) | No-Load | Rated | Stall | |||||||
| Operating Range | Nominal | Speed | Current | Speed | Current | Torque | Power | Current | Torque | ||
| RPM | A | RPM | A | mN.m / gf.cm | W | A | mN.m / gf.cm | ||||
| RS-390SH | 20156R | 6.0~12.0 | 12VDC | 5000 | 0.08 | 4243 | 0.33 | 6.07/61.9 | 2.72 | 2.22 | 42.2/430 |
| 2975 | 6.0~12.0 | 12VDC | 12000 | 0.29 | 10165 | 0.33 | 5.75/58.6 | 1.31 | 8.9 | 80.4/820 | |
| RS-395SH | 15130 | 6.0~12.0 | 12VDC | 3650 | 0.66 | 2949 | 0.25 | 5.83/59.5 | 1.8 | 1.06 | 30.4/310 |
| 15100R | 6.0~24.0 | 24VDC | 10300 | 0.07 | 8893 | 0.38 | 7.09/72.3 | 6.68 | 2.66 | 54.9/560 | |
Looking forward to your feedback!
Frequently Asked Questions (FAQ)
❓ What are the main applications of the 390PH 12v DC motor?
The 390PH 12v DC motor is specifically designed for high-efficiency household appliances such as professional hair dryers, micro vacuum cleaners, personal care tools, and various smart utility devices.
❓ Can the technical parameters and dimensions of the motor be customized?
Yes, we provide customization for the operating range, nominal voltage, speed, current, output power, and shaft length to meet the specific technical requirements of your projects.
❓ What are the typical characteristics of the RS-390SH and RS-395SH models?
These PMDC motors offer high torque and excellent rotation speeds up to 12,000 RPM at 12VDC, making them highly reliable options for appliances requiring strong suction or airflow in compact dimensions.
❓ Are these motors available in brush and brushless configurations?
Yes, we manufacture custom brushed and brushless DC configurations to match your durability specifications, control needs, and budget requirements.
❓ How do I verify the right motor option for my micro vacuum cleaner?
You can compare your design constraints with the specifications shown in our PMDC Motor Technical Datasheet, including rated load speed (RPM), operating torque, and maximum stall current.
