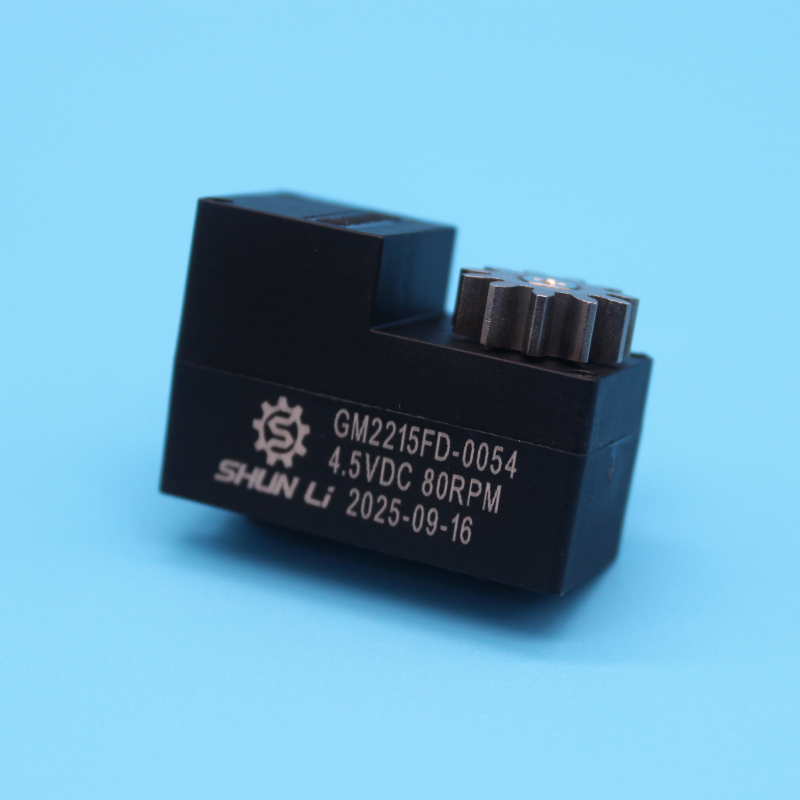

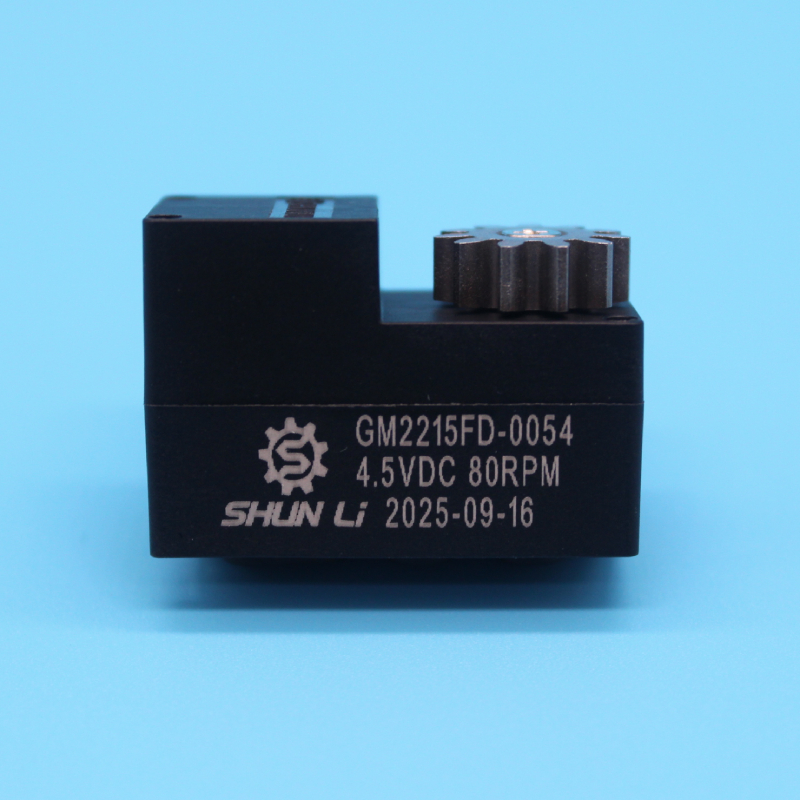

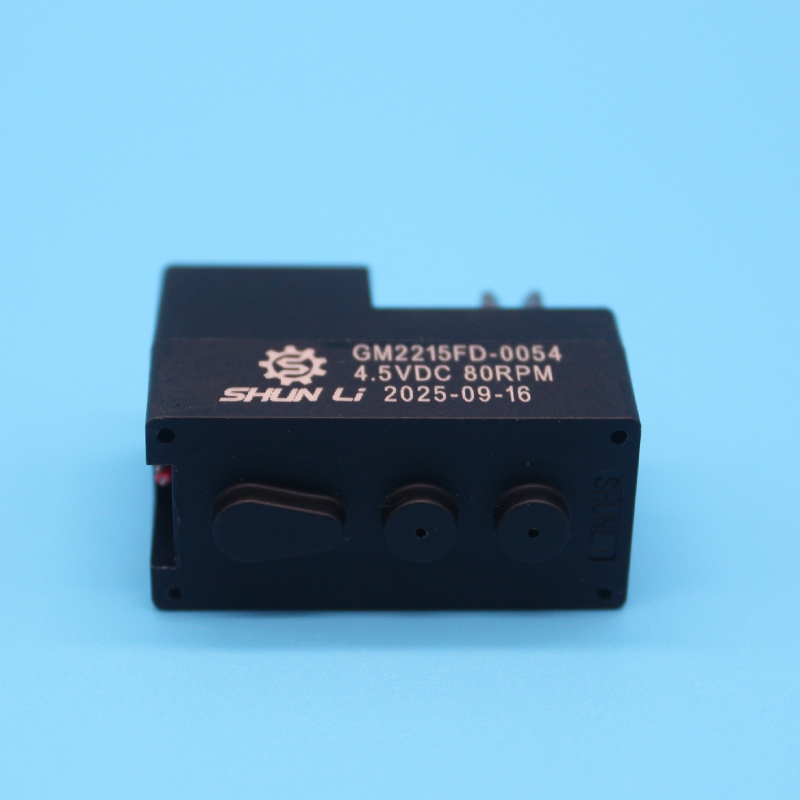

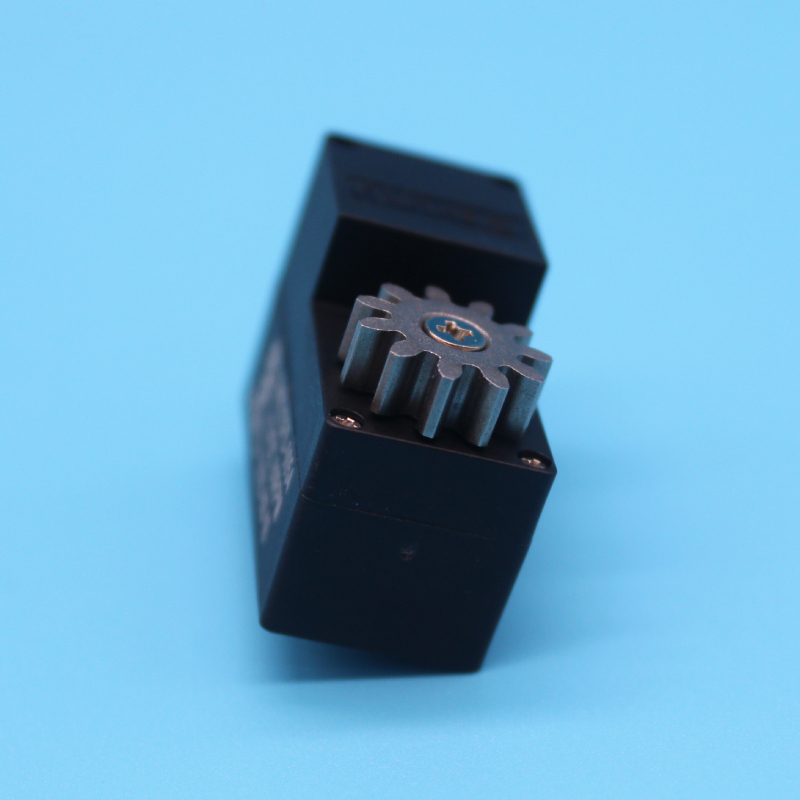

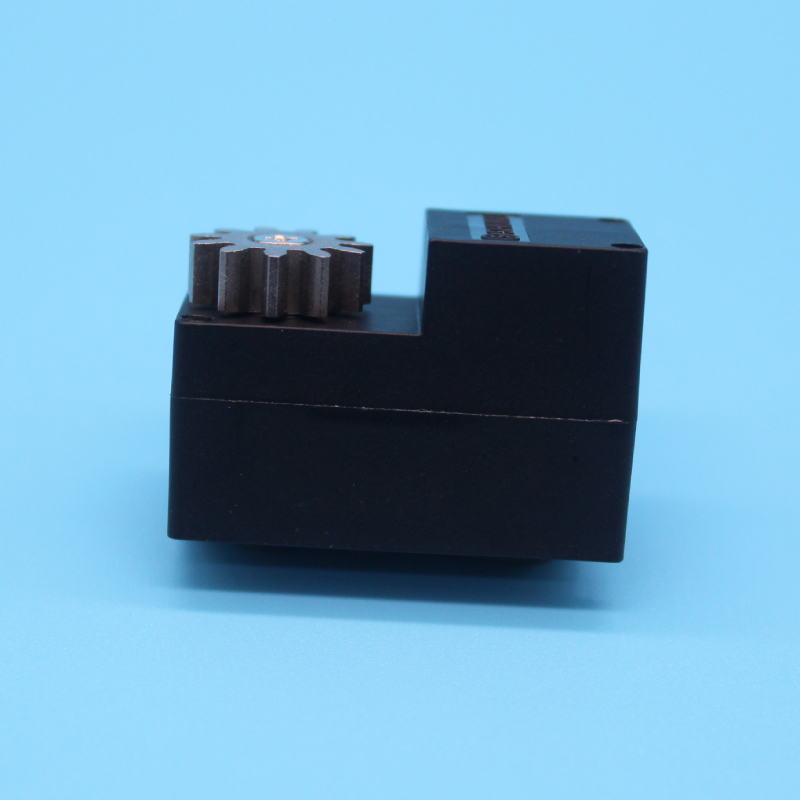

Shunli Motor 2215 Smart Lock Motor Steering Gear Automatic Door Lock Micro Motor Gearbox Reduction of Smart Lock
Product Description
Product Description
2215 Smart Lock Motor Steering Gear Automatic Door Lock Micro Motor Gearbox Reduction Motor
Motor Customized Specification

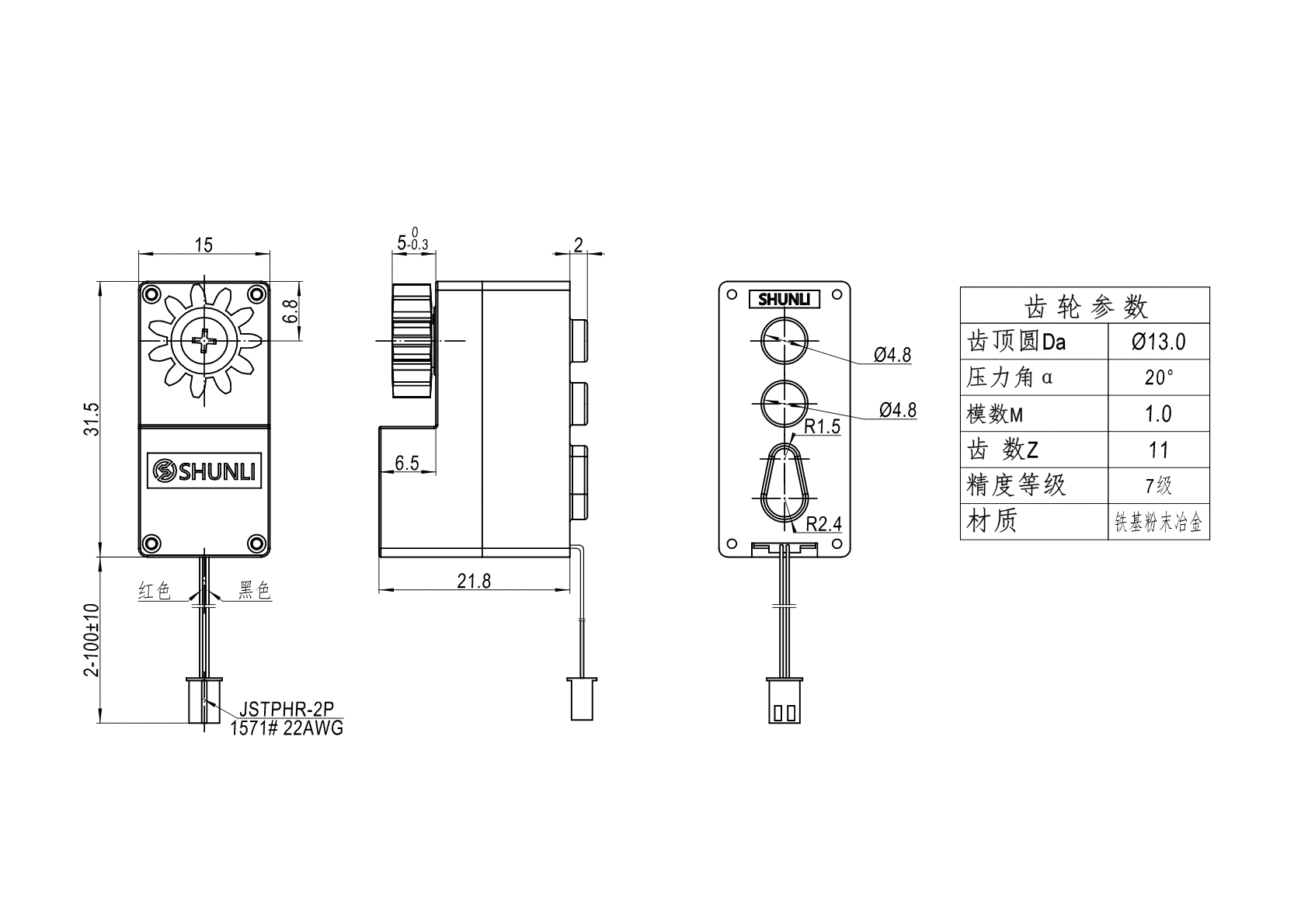

Reference Drawing — GM2215

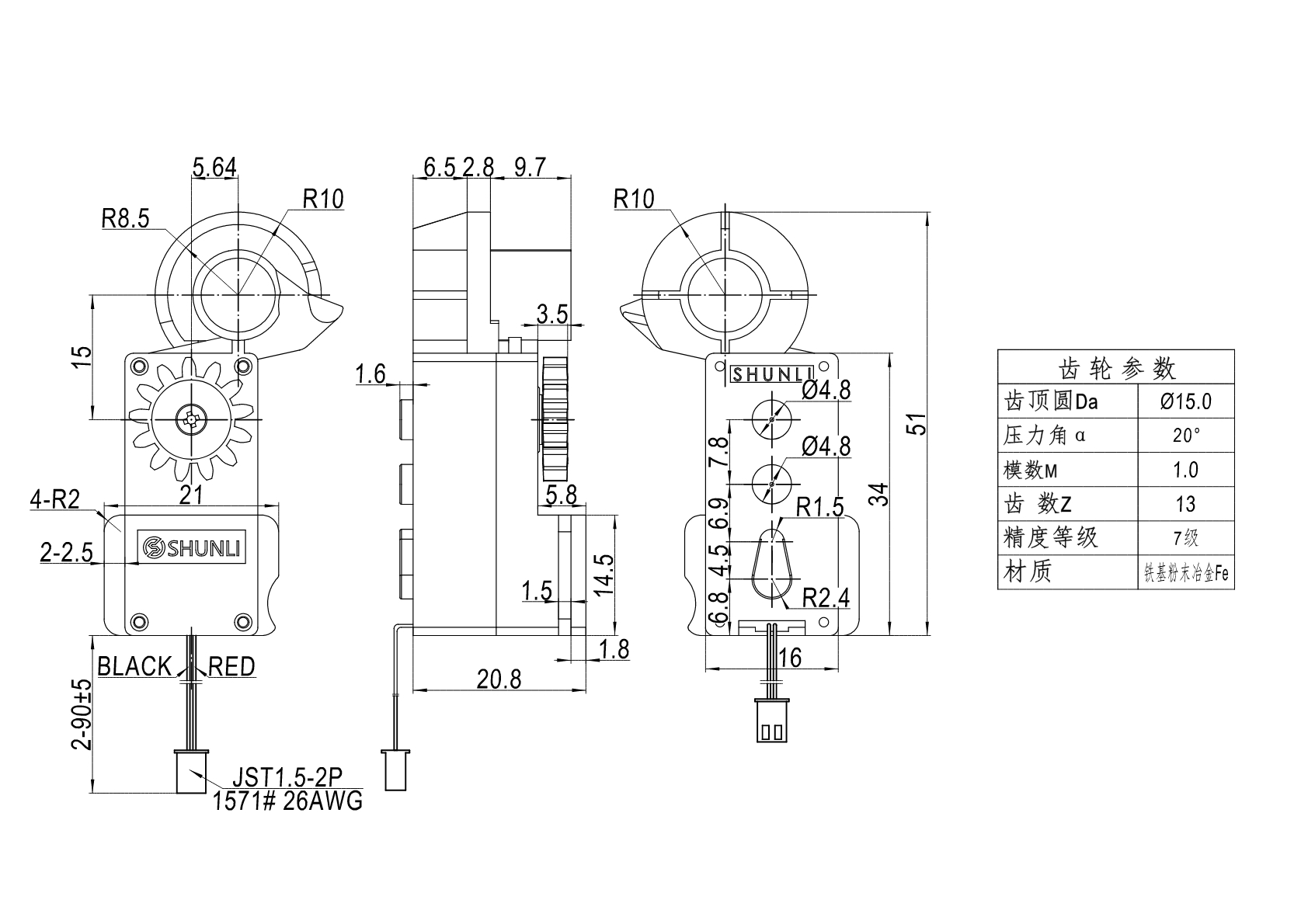

Reference Drawing — GM2219
Reference Datasheet
Gearbox Technical Data
| Parameter | Specification Range / Value |
|---|---|
| Ratio | 199K / 241K / 265K |
| Max. Rated Torque | 1.5 ~ 2.5 Kgf.cm |
| Max. Gear Breaked Torque | 4 ~ 5 Kgf.cm |
| Gearbox Efficiency | 45% ~ 60% |
Gearmotor Technical Data
| Gearmotor Model | Ratio | Rated Voltage | No-Load | Rated | Stall | ||||
|---|---|---|---|---|---|---|---|---|---|
| Speed (RPM) | Current (mA) | Speed (RPM) | Current (mA) | Torque (mN.m / gf.cm) | Current (mA) | Torque (N.m / Kgf.cm) | |||
| GM2215FMN20-199K | 1 : 199 | 4.5 VDC | 52 | ≤ 50 | 40 | ≤ 120 | 18 / 180 | ≤ 350 | 0.18 / 1.8 |
| GM2222FMN20-230K | 1 : 230 | 58 | ≤ 78 | 49 | ≤ 135 | 24 / 240 | ≤ 450 | 0.2 / 2.0 | |
| GM2219FMN20-265K | 1 : 241 | 58 | ≤ 65 | 50 | ≤ 130 | 24 / 240 | ≤ 680 | 0.2 / 2.0 | |
| GM2219FMN20-265K | 1 : 241 | 62 | ≤ 75 | 51 | ≤ 140 | 35 / 350 | ≤ 750 | 0.22 / 2.2 | |

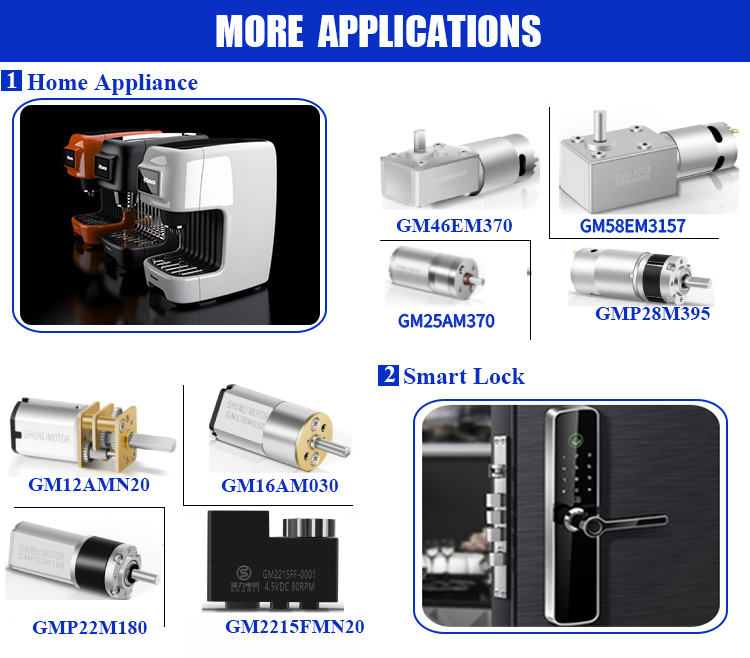

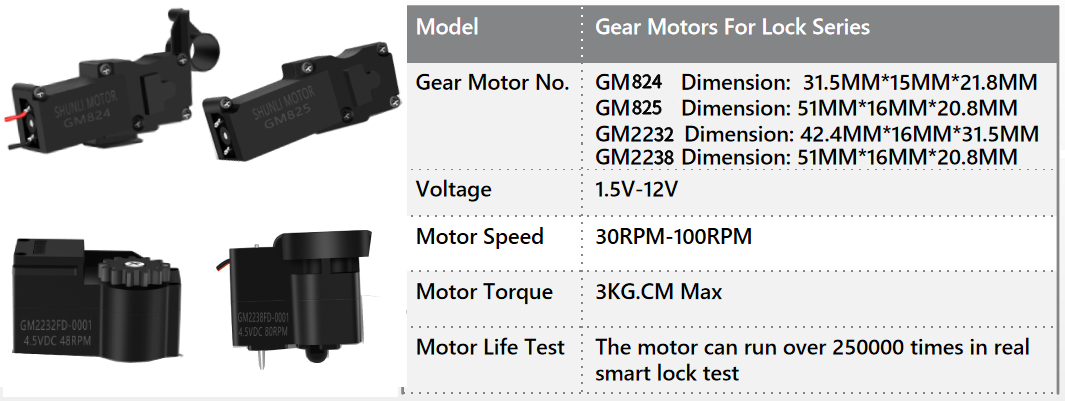

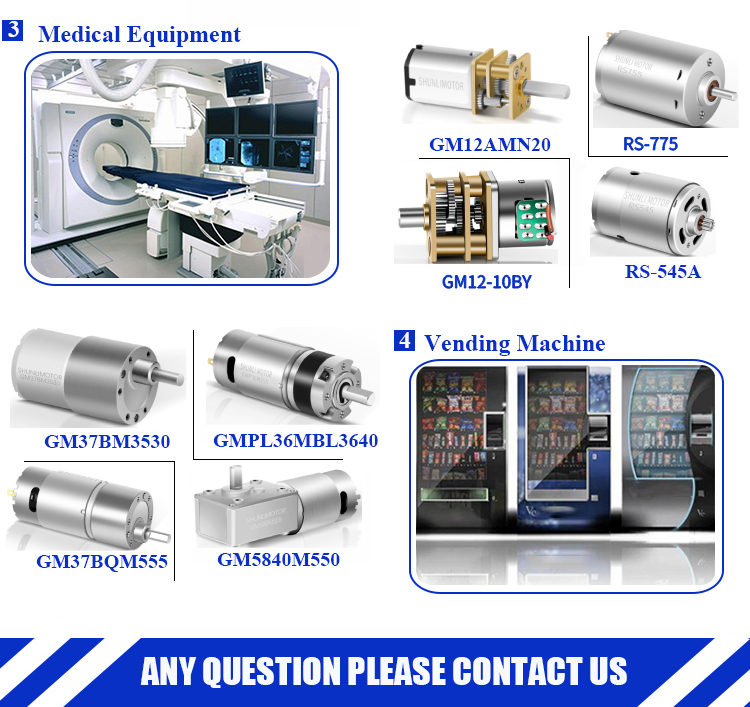

Alternative Model Reference
Manufacturing & Inspection Standards
Frequently Asked Questions
⚡ Q: Are you a trading company or manufacturer?
A: We are a factory. We specialize in micro DC motors and DC gear motors with over 14 years of development and production experience.
⚡ Q: What is the payment term for new customers?
A: We can establish an Online Assurance Order, enabling online payments via credit cards (Master Card, Visa, etc.). Payment via PayPal or T/T wire transfer is also fully supported.
⚡ Q: I cannot find a matching motor model on the website, can you customize one?
A: Yes, we provide customization solutions according to our customer's specific mechanical and electrical performance requirements.
⚡ Q: Do you provide certifications for your motor lines?
A: Yes, our motors hold certifications including CE, FCC, ISO, and others. If your market requires specific testing/certifications, we can apply for them accordingly.

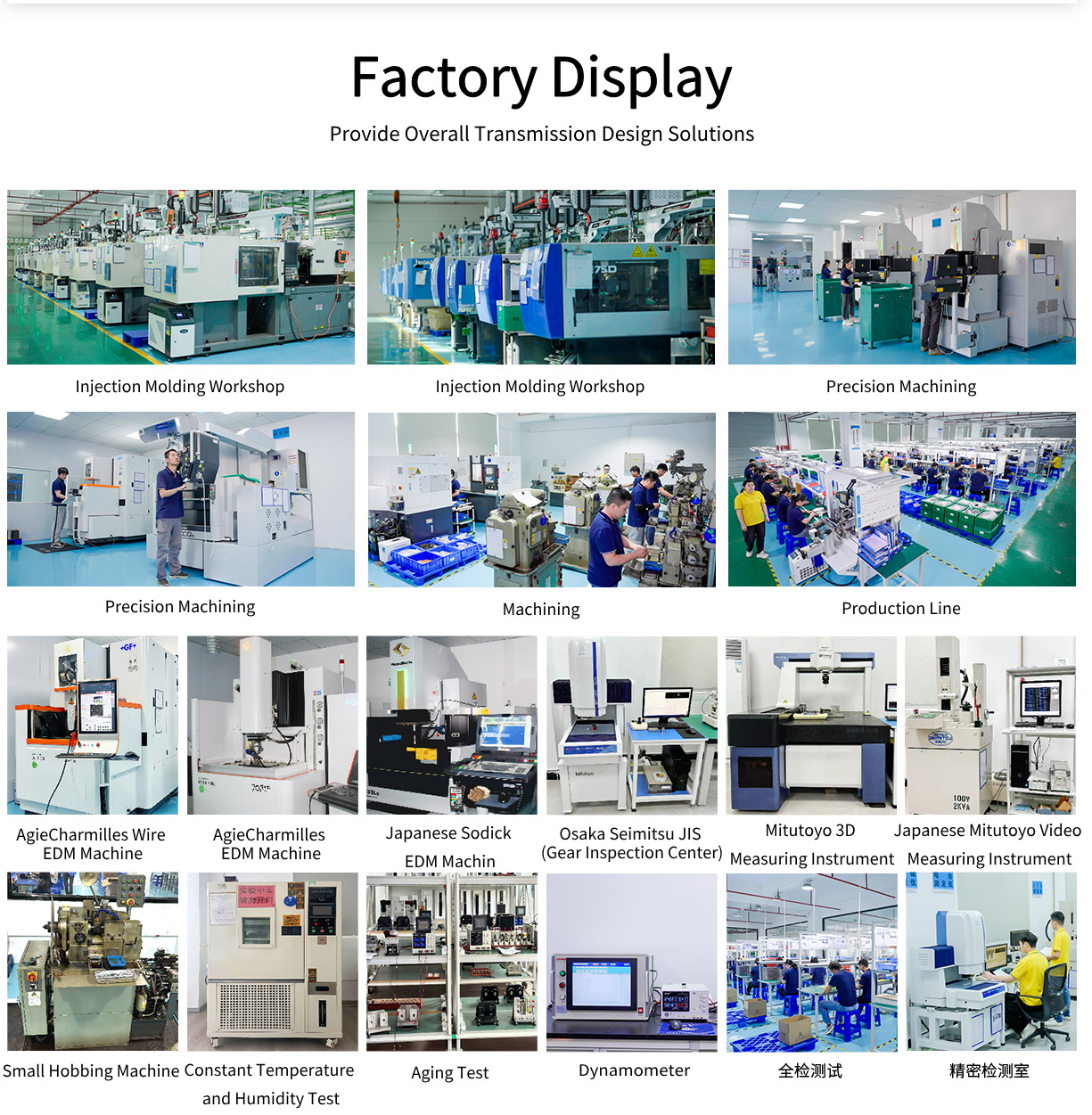

⚡ Q: How do you manage product quality control?
A: We employ professional checking personnel at every stage of the production line. Fully assembled motors undergo multi-step quality control equipment testing, utilizing instruments such as Hardness Testers, 2.5D Image Testers, Salt Spray Chambers, Life Cycle Testers, Temperature Test Chambers, and Noise Testers.
⚡ Q: Are reference drawings and technical data sheets available?
A: Yes. Complete technical parameters (like torque, speed, and ratios) and structure designs are documented in reference drawings (such as the GM2215 and GM2219 models) to assist in engineering evaluations.
