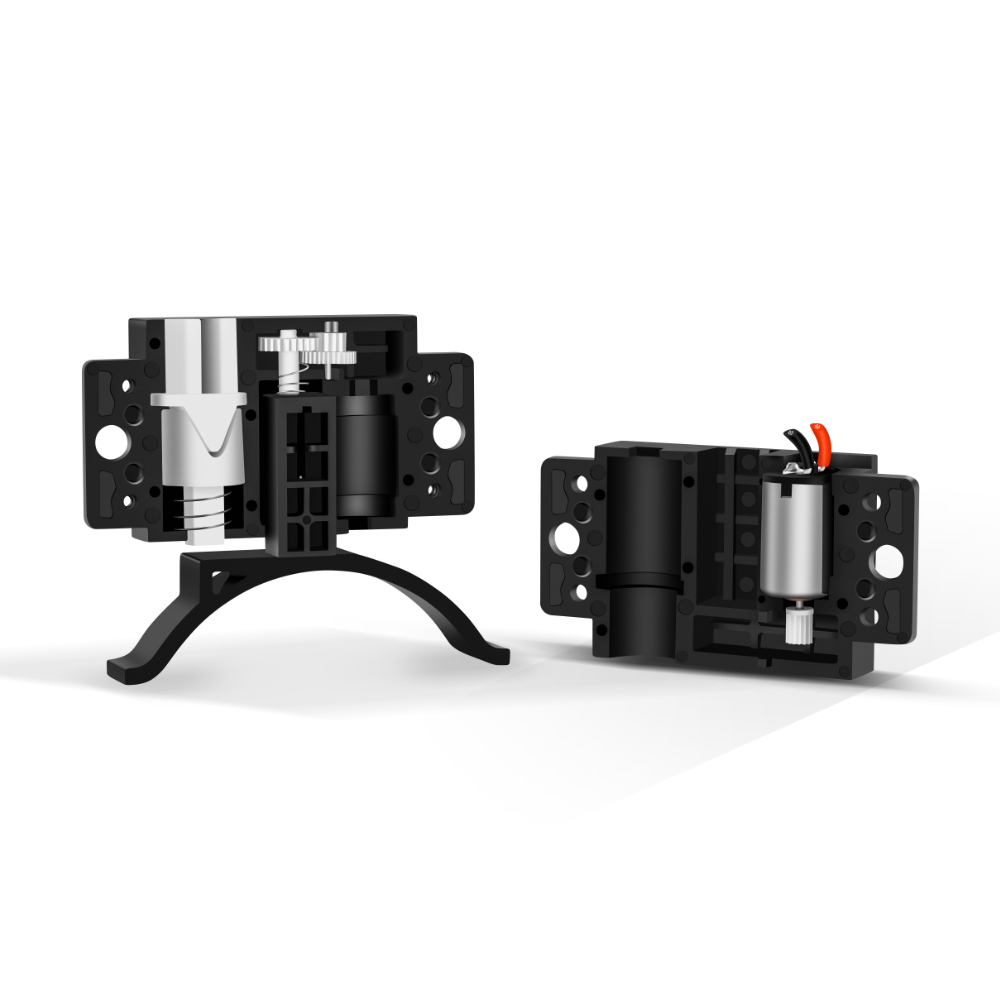

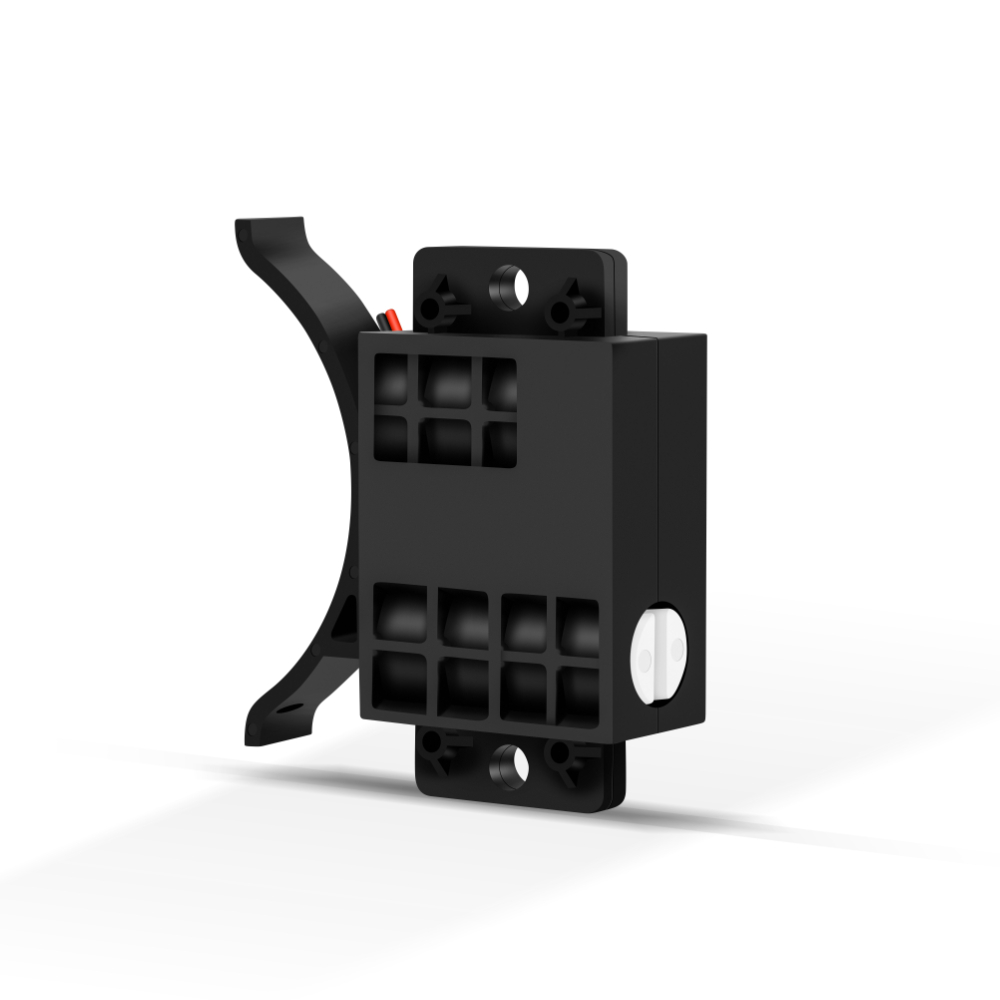

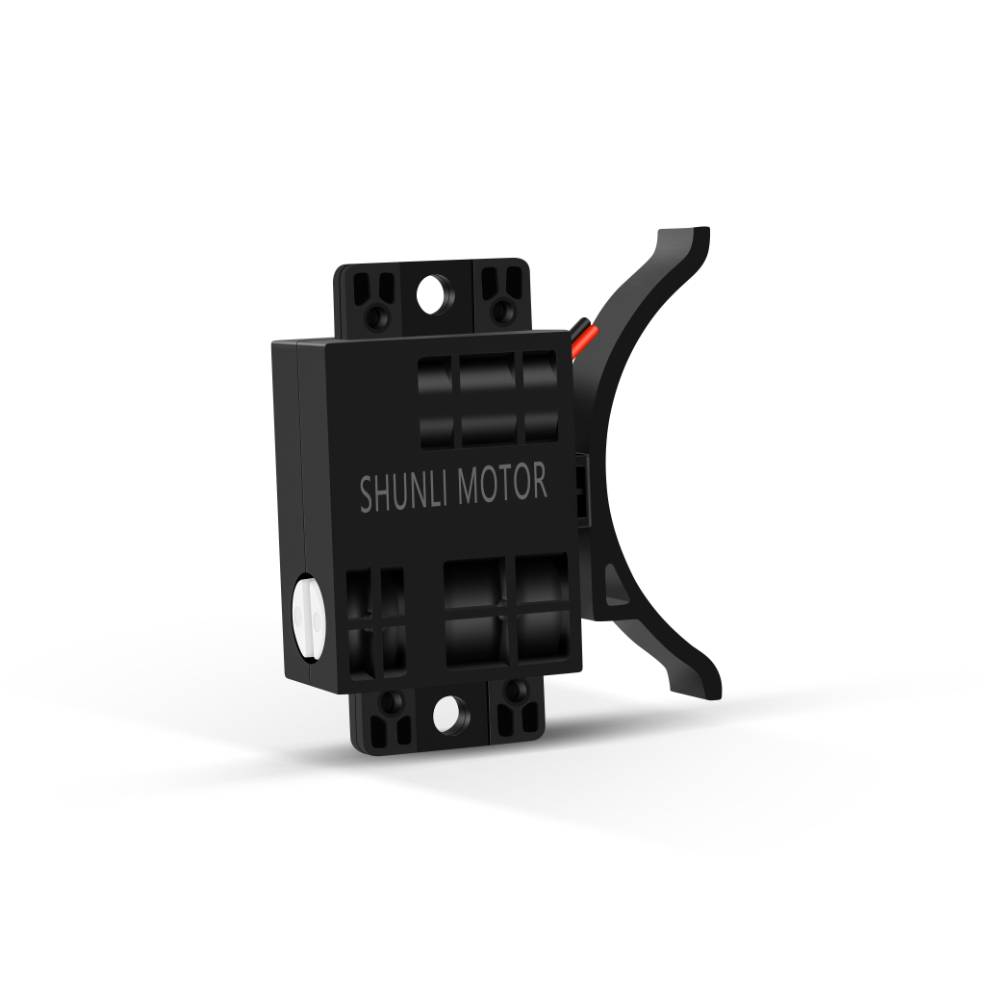

Shunli Vibration Dc Gear Motor 3V 6V 12V 1.4-1.6A 65RPM 75RPM 85RPM Hight Torque Coin Dc Gear Motor for Smart Lock
Product Description
🔥
Promotion
⚙️
Product Description

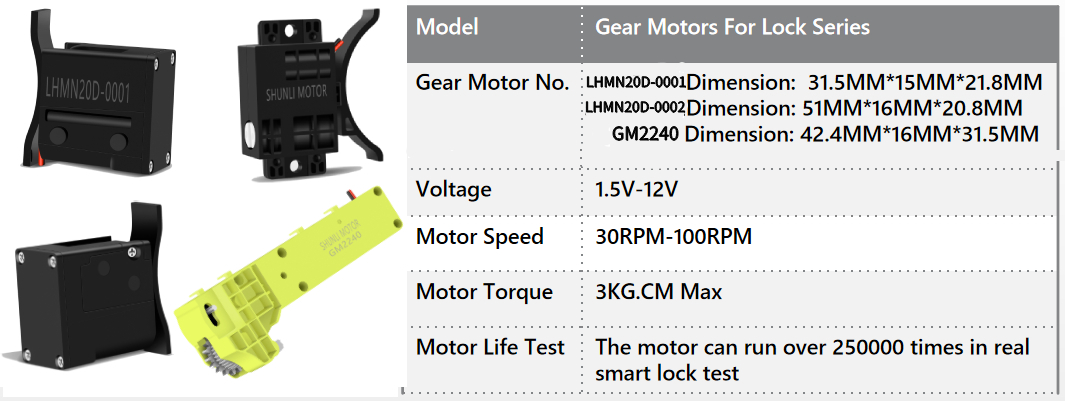

Specification
Gearbox Technical Data
| Ratio | 241k |
|---|---|
| Max. Rated Torque | 1.5 ~ 2.0 Kgf.cm |
| Max. Gear Breaked Torque | 4 ~ 5 Kgf.cm |
| Gearbox Efficiency | 45% ~ 60% |
Gearmotor Technical Data
| Gearmotor Model | Ratio | Rated Voltage (V) | No-Load | Rated | Stall | ||||
|---|---|---|---|---|---|---|---|---|---|
| Speed | Current | Speed | Current | Torque | Current | Torque | |||
| RPM | mA | RPM | mA | N.m / Kgf.cm | mA | N.m / Kgf.cm | |||
| GM2240 | 1 : 241 | 4.5 VDC | 52 | ≤ 50 | 40 | ≤ 120 | 18 / 180 | ≤ 350 | 0.18 / 0.18 |
| 58 | ≤ 65 | 50 | ≤ 130 | 24 / 240 | ≤ 680 | 0.2 / 2.0 | |||
| 68 | 75 | 56 | ≤ 140 | 26 / 260 | ≤ 750 | 0.22 / 2.2 | |||
PMDC MOTOR Technical Data
| PMDC MOTOR Model | Rated Voltage (V) | No-Load | Rated | Stall | |||||
|---|---|---|---|---|---|---|---|---|---|
| Speed | Current | Speed | Current | Torque | Current | Torque | |||
| RPM | mA | RPM | mA | mN.m / gf.cm | mA | mN.m / gf.cm | |||
| SL-N20 | 04510500 | 4.5 VDC | 10500 | ≤ 30 | 8250 | ≤ 80 | 0.2 / 2.0 | ≤ 300 | 1.05 / 10.5 |
| 04514000 | 4.5VDC | 14000 | ≤ 40 | 12000 | ≤ 130 | 0.25 / 2.5 | ≤ 680 | 1.5 / 15 | |
| 04516500 | 4.5VDC | 16500 | ≤ 50 | 13500 | ≤ 160 | 0.25 / 2.5 | ≤ 750 | 1.8 / 18 | |
📱
Application
⭐
Customer Evaluation
📜
Certifications
🏭
Company Information
Why do you choose us:
1. Factory Experience
We are a factory specialize in producing motors more than 14 years, professional R&D team mature management will bring you a pleasant shopping experience.
2. Quality Control
In order to confirm quality, from we receive material to shipment to be carefully checked every step of the way. Quality is our basis of our development.
❓
FAQ
Are you trading company or manufacturer?
We're factory. We specialize in micro dc motor and dc gear motor for more than 14 years.
What is the payment term for a new customer?
We can draw up an Ali Assurance Order Online for our new customer, which can pay online with Master Card, Visa, etc. Customer also can pay with PayPal or TT etc.
I can't find a suitable motor on your website, can you customize the motor for me?
Yes, we can customize a suitable motor according to our customer's requirements.
Do you have certificates for the motors?
Yes, we have CE, FCC, ISO, etc. If you have the other certificates requirement, we can apply it for you.
How is your Quality Control?
We have professional checking staff on every production line process. After finishing the whole motor, we have the entire quality machine to test the motor. Such as Hardness Tester, 2.5D Image Tester, Salt Spray Chamber, Life Tester, Temperature Test Machine, and Noise tester etc.
