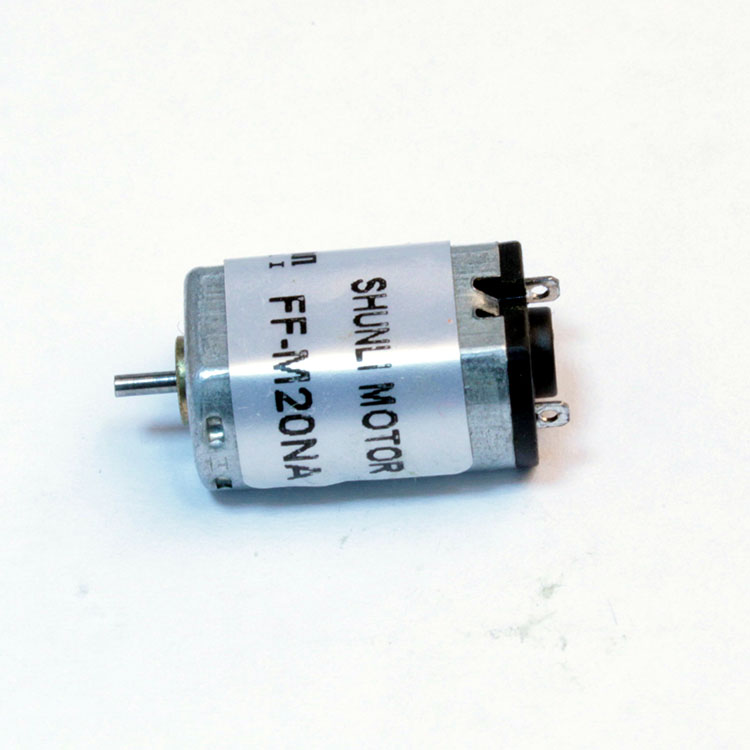

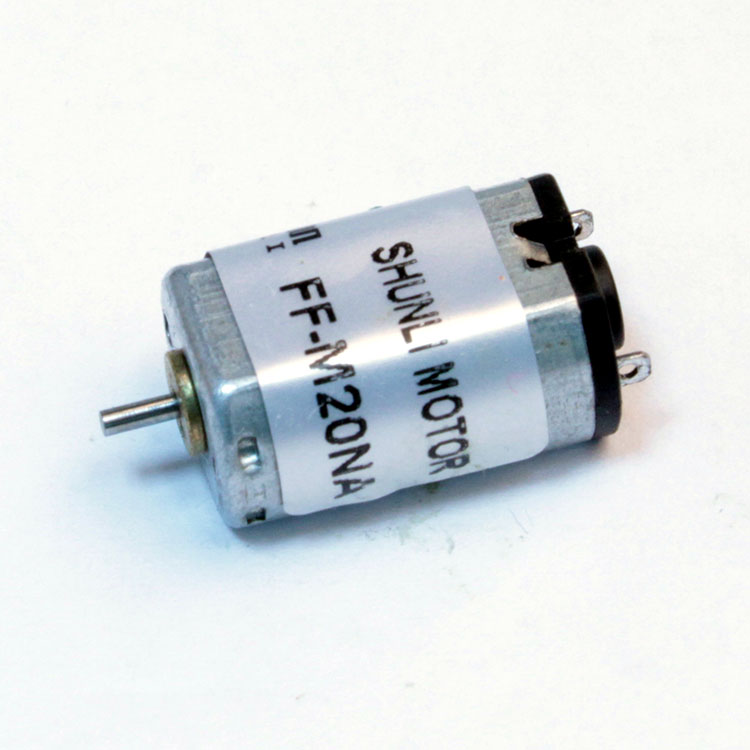

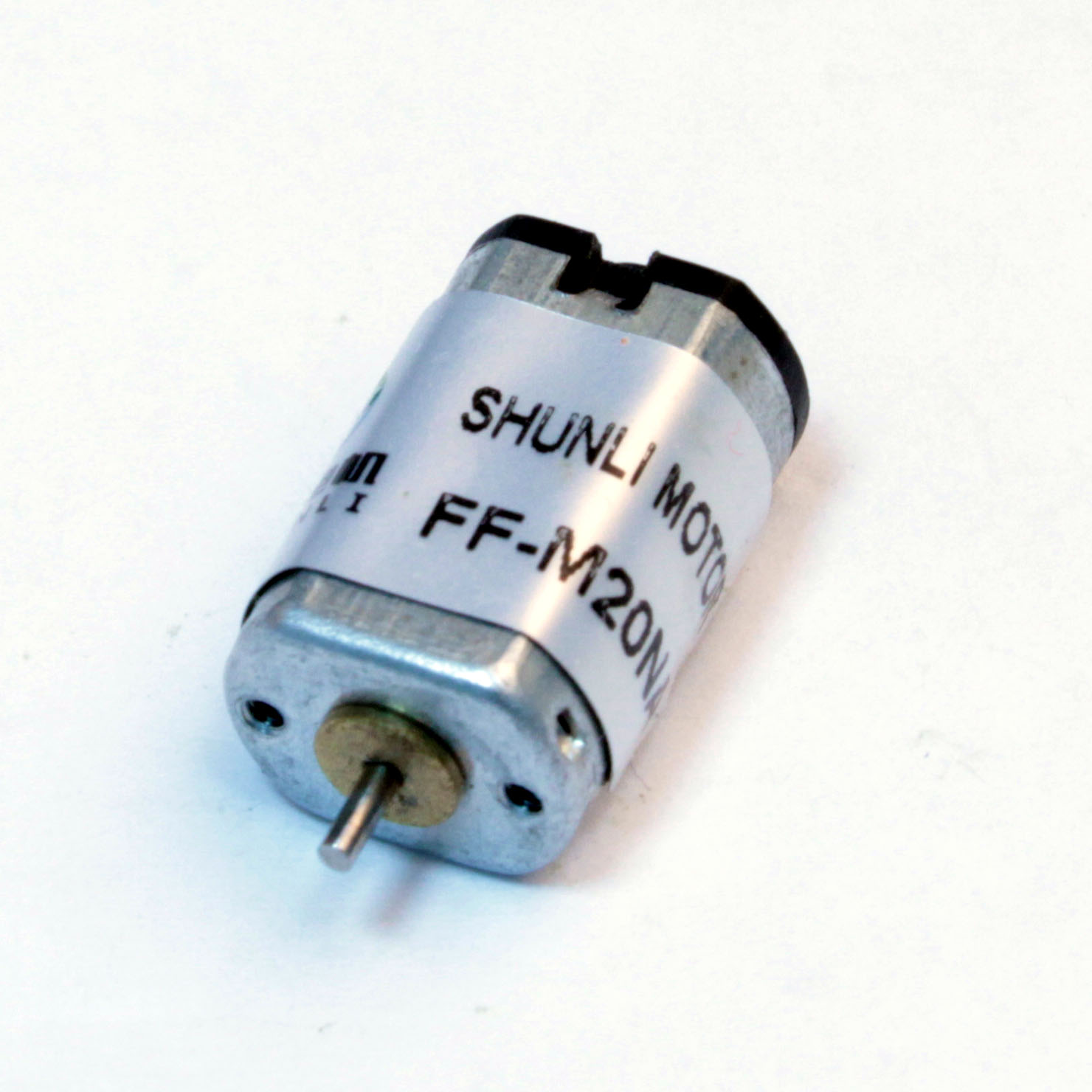

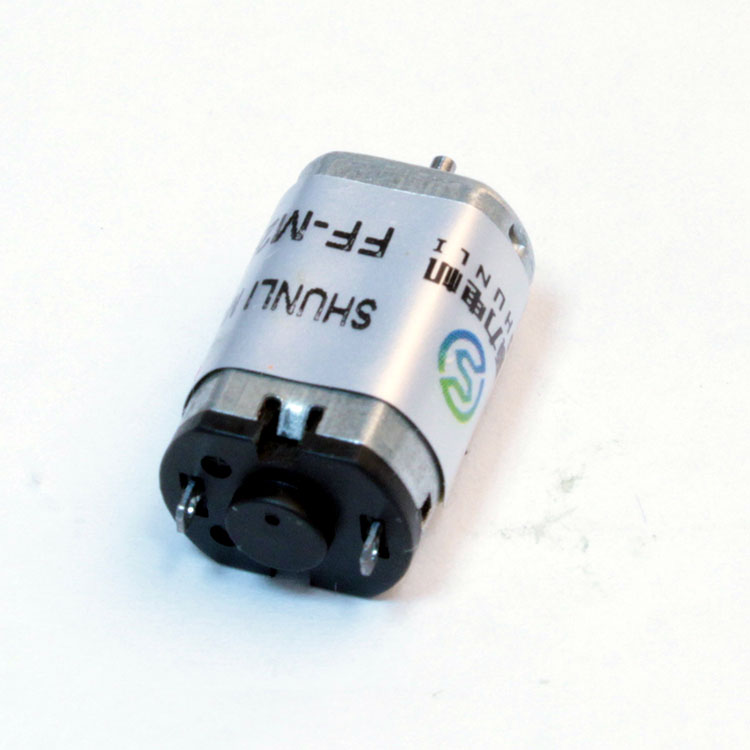

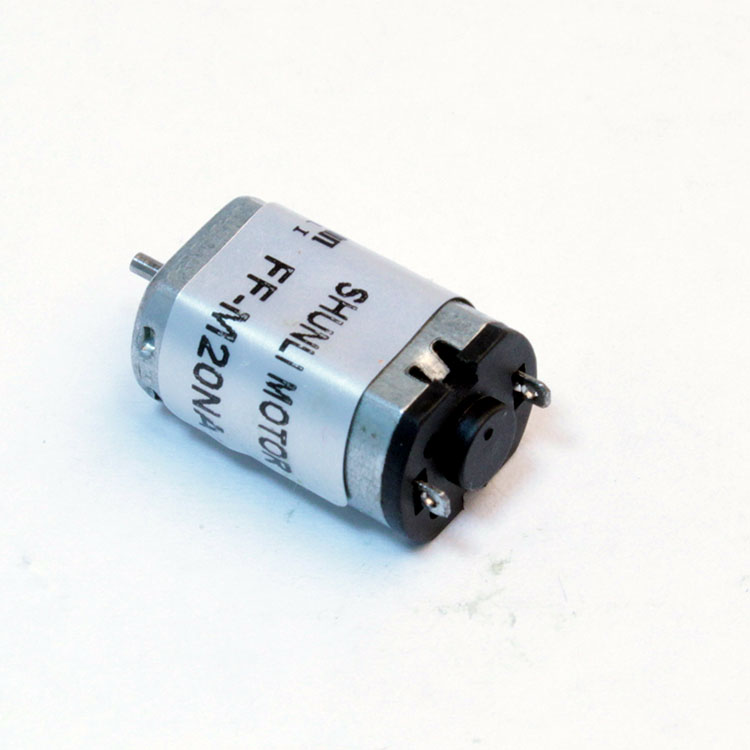

Small Electric Motor M20 Dc Motor 1.5v 3v Micro Dc Motor for home appliance
Product Description
Promotion
Product Description
| PMDC MOTOR Technical Data | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| PMDC MOTOR Model | Rated Voltage (V) | No-Load | Rated | Stall | |||||||
| Operating Range | Nominal | Speed | Current | Speed | Current | Torque | Power | Current | Torque | ||
| RPM | mA | RPM | mA | mN.m / gf.cm | W | mA | mN.m / gf.cm | ||||
| FF-M20VA | 8130 | 2.0~3.0 | 3VDC | 15200 | 45 | 11800 | 160 | 0.16/1.6 | 0.19 | 550 | 0.69/7 |
| 7170 | 1.5-3.0 | 2VDC | 8000 | 25 | 6000 | 75 | 0.09/0.9 | 0.06 | 230 | 0.35/3.6 | |
| 10100 | 1.5~4.0 | 2.8VDC | 18000 | 50 | 14800 | 190 | 0.2/2 | 0.3 | 880 | 1.1/11 | |
Click on the tilt font to know more parameters!
Application
Our Facility
Our facility has been established in 2005. It's a high-tech enterprise integrating the research, development, production and sales of various kinds of micro DC motor, geared motor, planetary geared motor, shade pole geared motor and special gearbox motor. Products are widely used in automobiles, communications equipment, smart home, medical equipment, intelligent security, household appliances, western kitchen equipment, machinery and electronics and other high-end transmission structures. Products are exported to more than 50 countries and regions at home and abroad.
Production Process
Certifications
Our company has introduced dozens of advanced production equipment and testing instruments from Germany, Japan, Switzerland and other countries to strictly control the quality of each motor.
FAQ
1. Are you a trading company or manufacturer?
We're a factory. We specialize in micro DC motors and DC gear motors for more than 14 years.
2. What is the payment term for new customers?
We can support secure online transaction orders for new customers, which allows payment via credit cards, Visa, and Mastercard. Customers can also pay with PayPal or T/T wire transfers.
3. I can't find a suitable motor on your website, can you customize the motor for me?
Yes, we can customize a suitable motor according to our customer's specific requirements.
4. Do you have certificates for the motors?
Yes, we have CE, FCC, ISO, etc. If you have other certificate requirements, we can apply for them on your behalf.
5. How is your Quality Control?
We have professional inspection staff on every production line process. After finishing the motor assembly, we conduct full quality testing using advanced machinery, including Hardness Testers, 2.5D Image Testers, Salt Spray Chambers, Life Testers, Temperature Test Chambers, and Noise Testers.
6. What is your typical lead time for custom orders?
Standard sample development typically takes 7-15 working days. Mass production lead times range between 20-30 days depending on the customization complexity and order volume.
