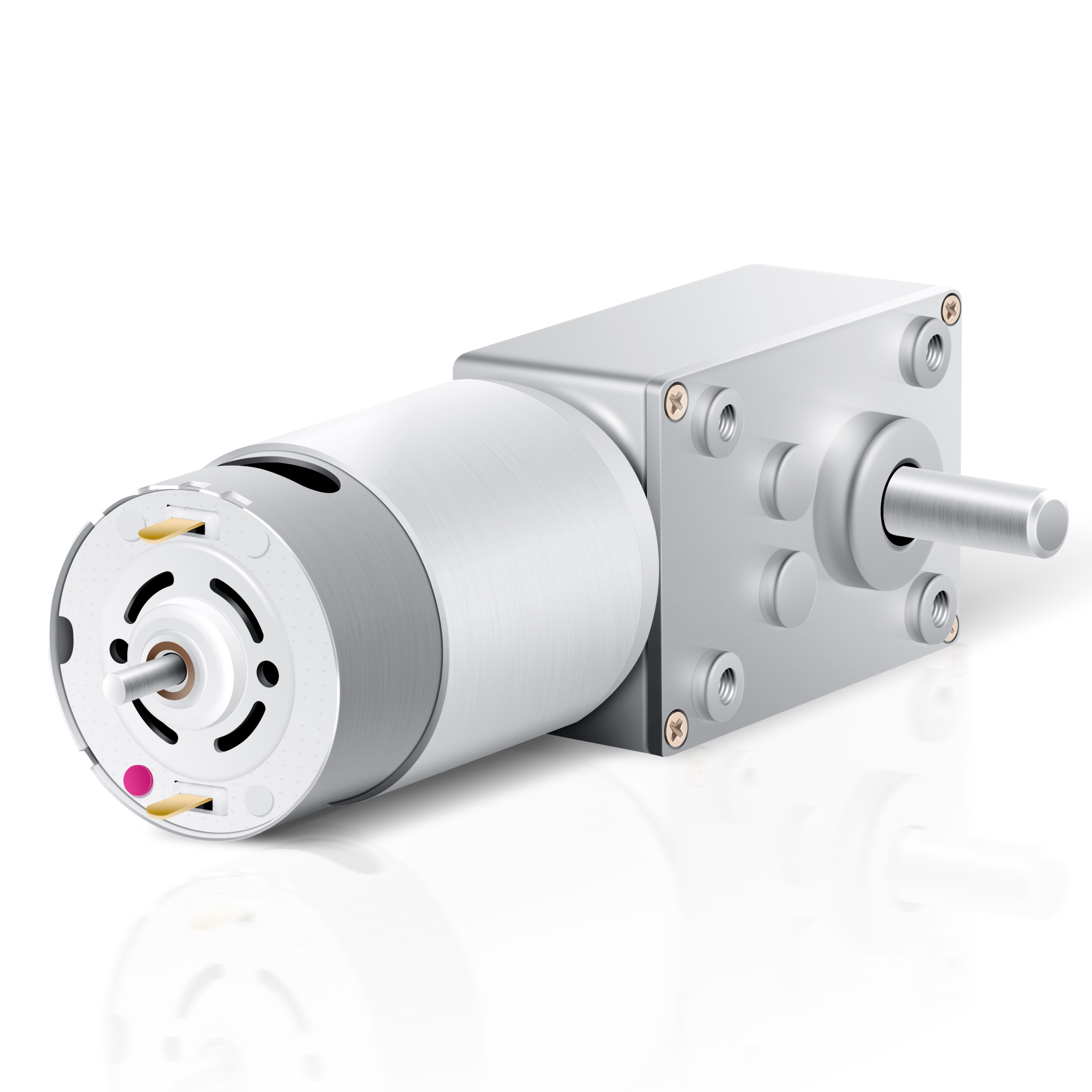

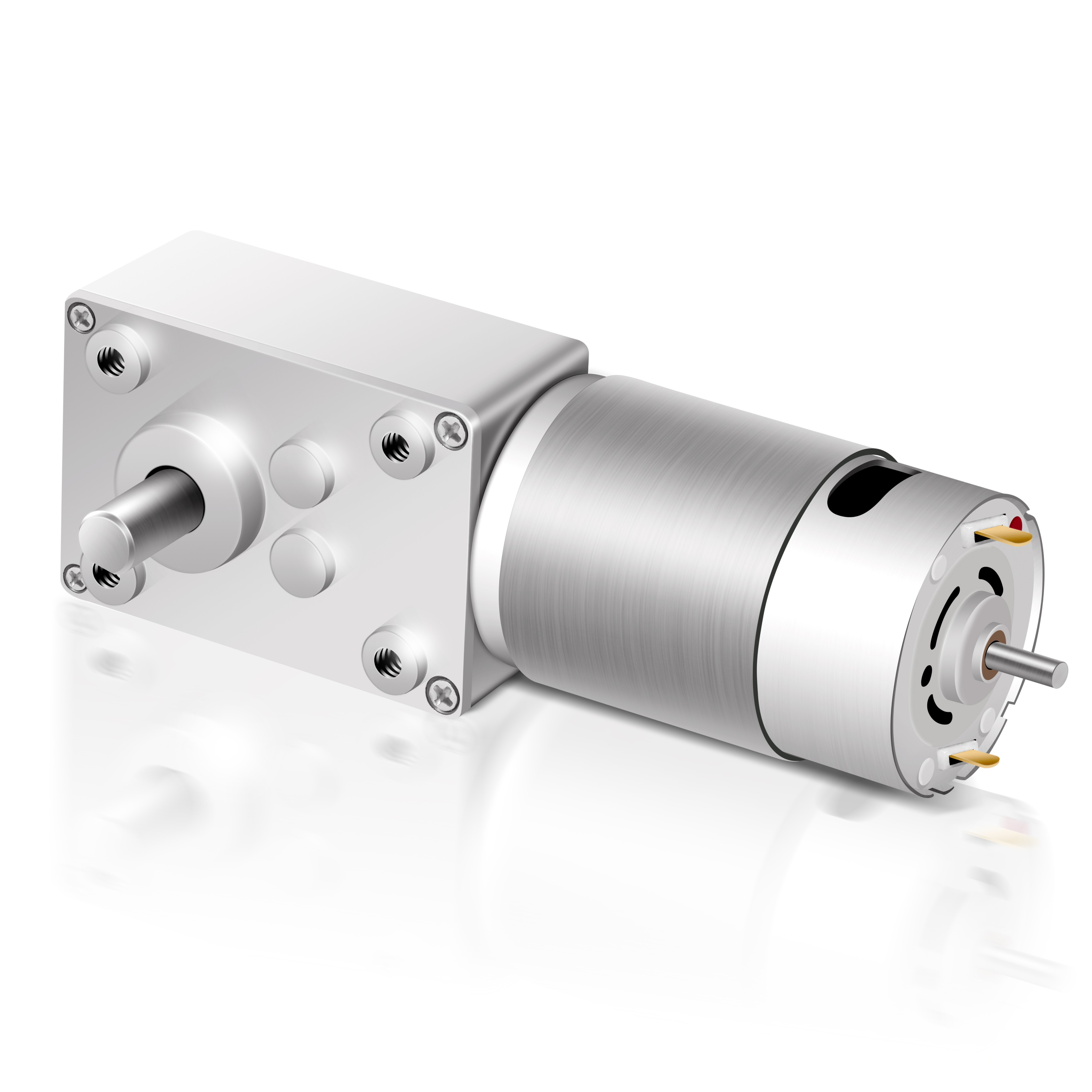

Factory 0.8nm Worm Gear Motor Brush Brushless Worm Gear Motor For For 3d Printing Pen
Product Description
Promotion
Product Description

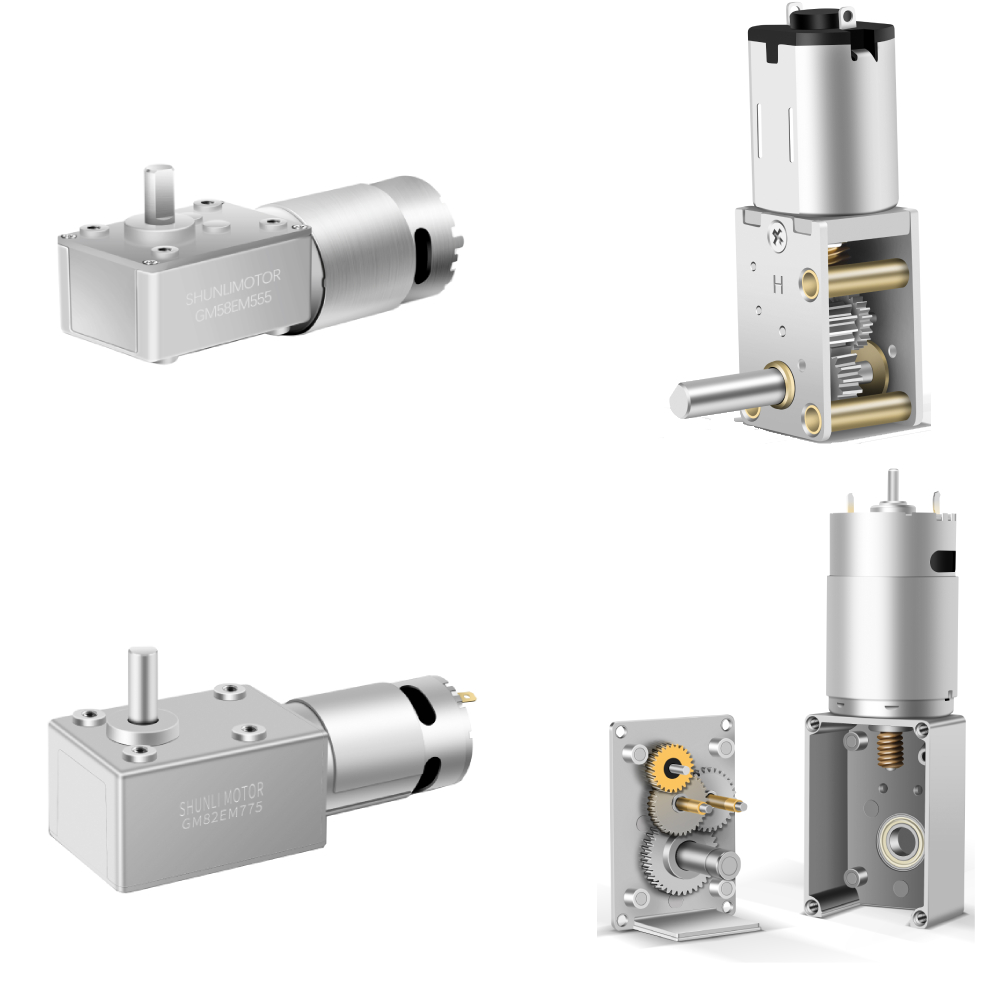

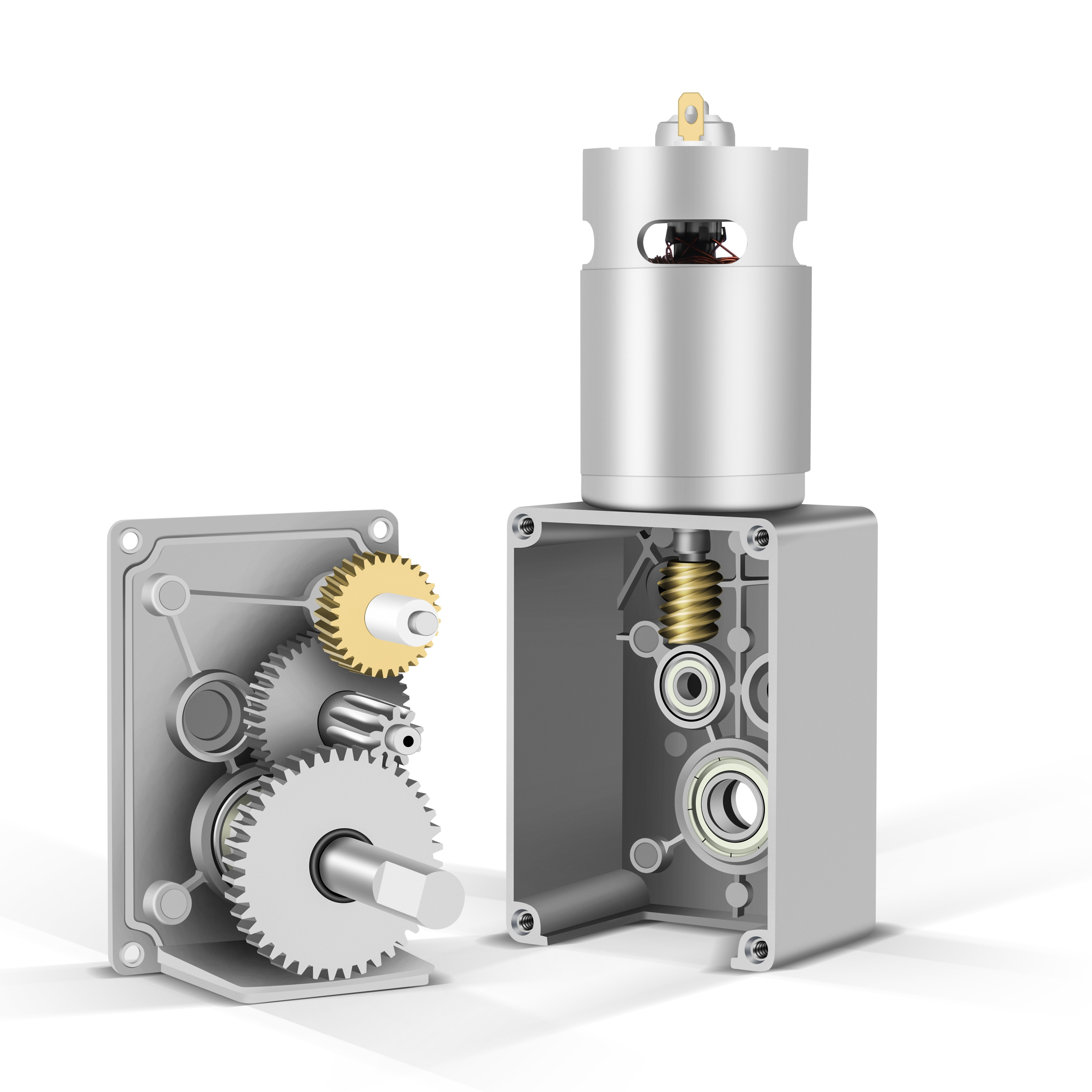

Product Details
Specification
Gearbox Technical Data
| Ratio | Max. Rated Torque | Max. Gear Breaked Torque | Gearbox Efficiency |
|---|---|---|---|
| 41K / 82K / 95K / 190K / 219K / 438K / 504K / 1007K | 300~800 gf.cm | 1000~3000 gf.cm | 12%~35% |
Gearmotor Technical Data
| Gearmotor Model | Ratio | Rated Voltage (V) | No-Load | Rated | Stall | ||||
|---|---|---|---|---|---|---|---|---|---|
| Speed | Current | Speed | Current | Torque | Current | Torque | |||
| RPM | mA | RPM | mA | mN.m / gf.cm | mA | mN.m / gf.cm | |||
| GM1220EMN20-95K | 1 : 95 | 4.5 VDC | 145 | ≤ 70 | 122 | ≤ 200 | 8 / 80 | ≤ 700 | 75 / 750 |
| GM1220EMN30-1007K | 1 : 1007 | 12 VDC | 25 | ≤ 90 | 22 | ≤ 230 | 120 / 1200 | ≤ 400 | 420 / 4200 |
PMDC MOTOR Technical Data

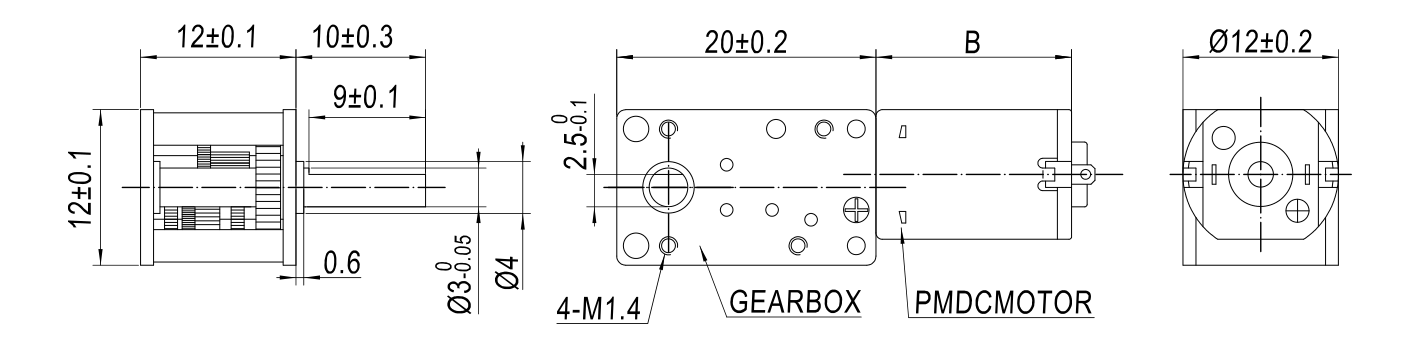

| PMDC MOTOR Model | Length “B”(mm) | Rated Voltage (V) | No-Load | Rated | Stall | |||||
|---|---|---|---|---|---|---|---|---|---|---|
| Speed | Current | Speed | Current | Torque | Current | Torque | ||||
| RPM | mA | RPM | mA | mN.m / gf.cm | mA | mN.m / gf.cm | ||||
| SL-N20 | 04514000 | 15 | 4.5 VDC | 14000 | ≤ 40 | 12000 | ≤ 130 | 0.25 / 2.5 | ≤ 650 | 1.5 / 15 |
| SL-N30 | 1225400 | 20 | 12 VDC | 25400 | ≤ 50 | 22600 | ≤ 170 | 0.5 / 5 | ≤ 380 | 4.2 / 42 |

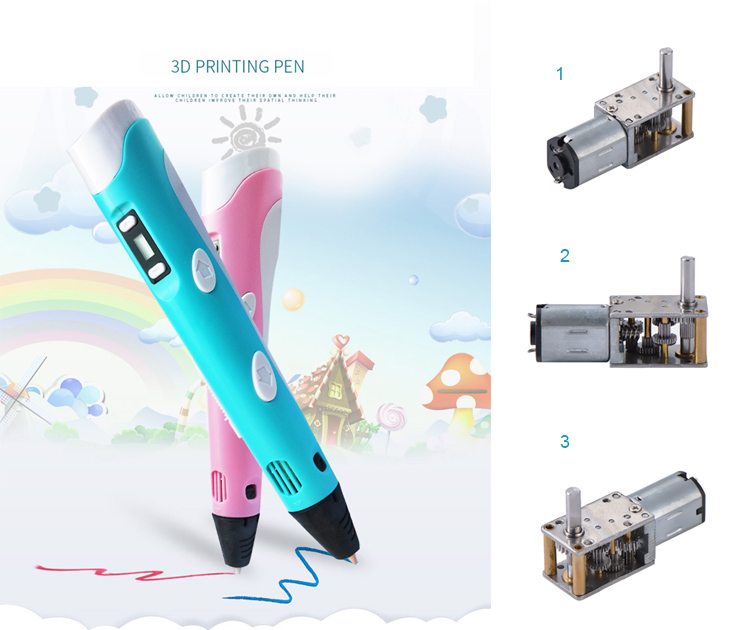

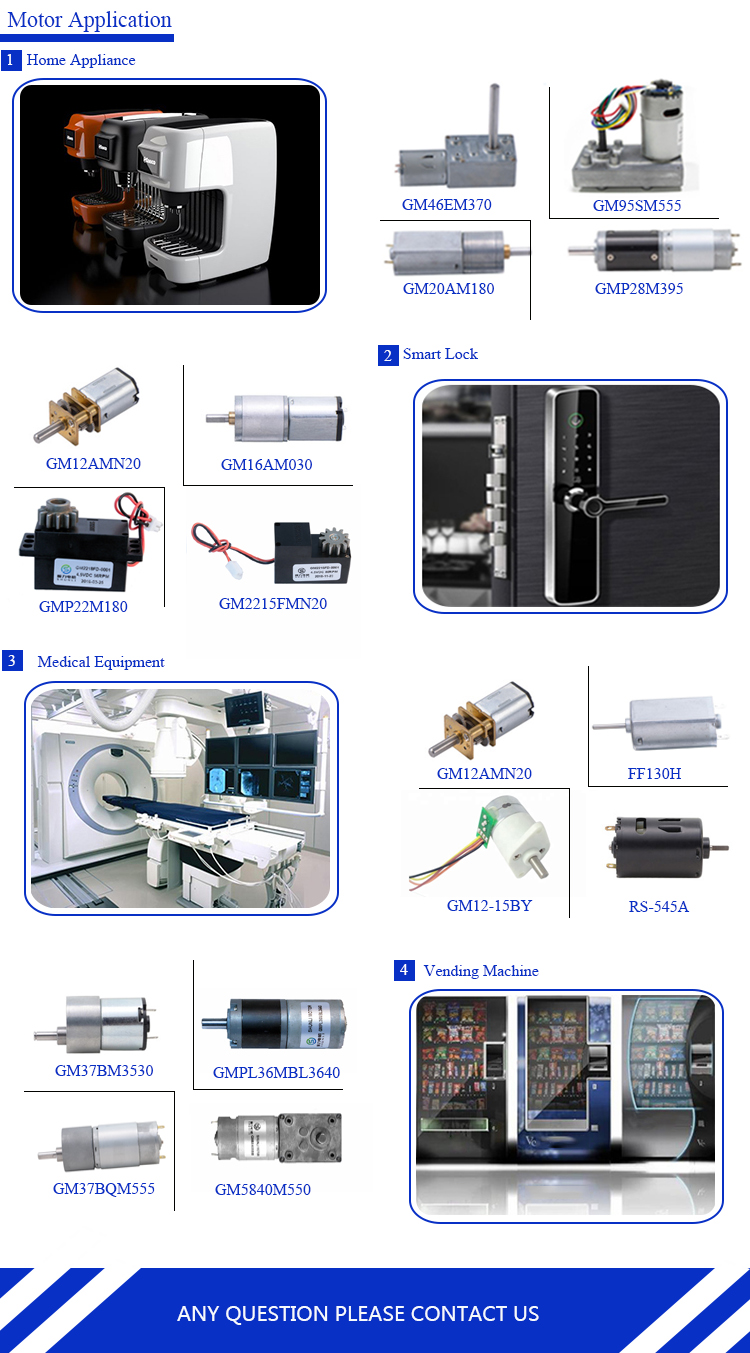

Application
Customer Evaluation
Certification
Our Company

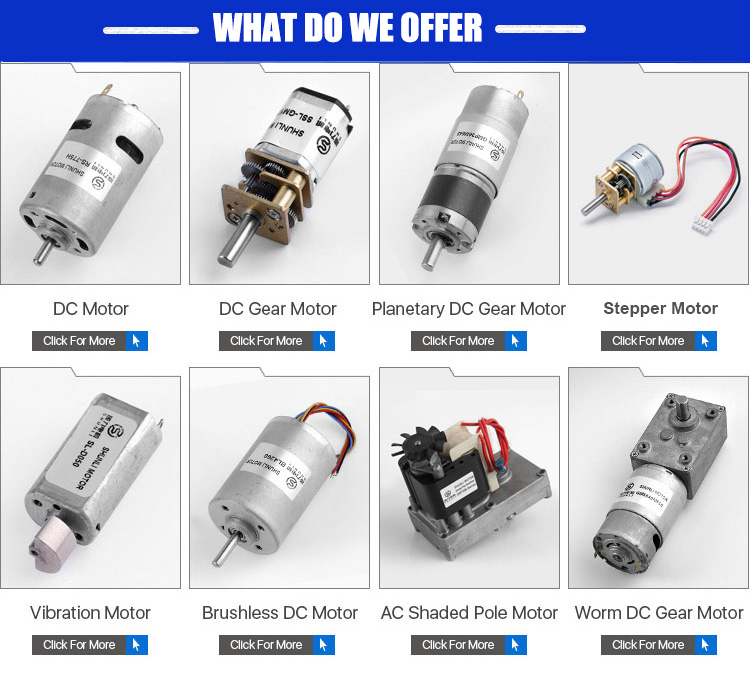

Established in 2005, it's a high-tech enterprise integrating the research, development, production and sales of various kinds of micro DC motor, geared motor, planetary geared motor, shade pole geared motor and special gearbox motor. Products are widely used in automobiles, communications equipment, smart home, medical equipment, intelligent security, household appliances, western kitchen equipment, machinery and electronics and other high-end transmission structures, products are exported to more than 50 countries and regions at home and abroad.
FAQ
Are you a trading company or manufacturer?
We're factory. We specialize in micro dc motor and dc gear motor for more than 14 years.
What is the payment term for a new customer?
We can draw up an Ali Assurance Order Online for our new customer, which can pay online with Master Card, Visa, etc. Customer also can pay with PayPal or TT etc.
I can't find a suitable motor on your website, can you customize the motor for me?
Yes, we can customize a suitable motor according to our customer's requirements.
Do you have certificates for the motors?
Yes, we have CE, FCC, ISO, etc. If you have the other certificates requirement, we can apply it for you.

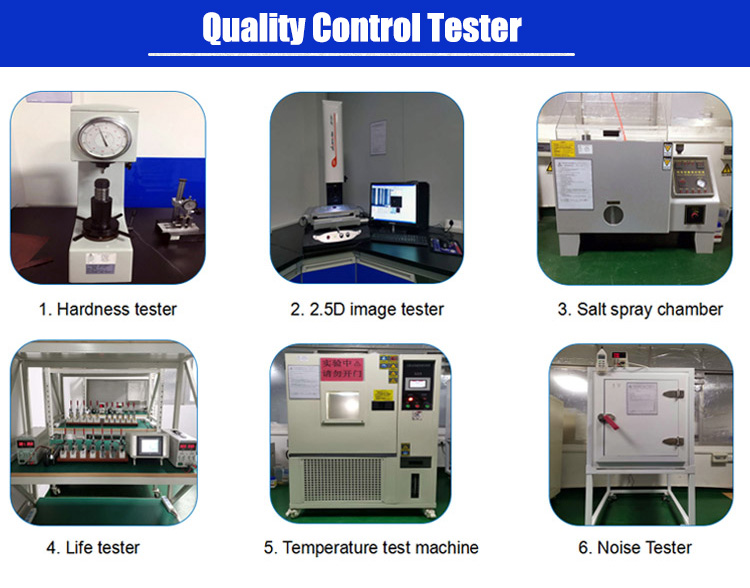

How is your Quality Control?
We have professional checking staff on every production line process. After finishing the whole motor, we have the entire quality machine to test the motor. Such as Hardness Tester, 2.5D Image Tester, Salt Spray Chamber, Life Tester, Temperature Test Machine, and Noise tester etc.
