12mm motor with gearbox for smart home appliance 6v 12volt dc small gear motor
Product Description

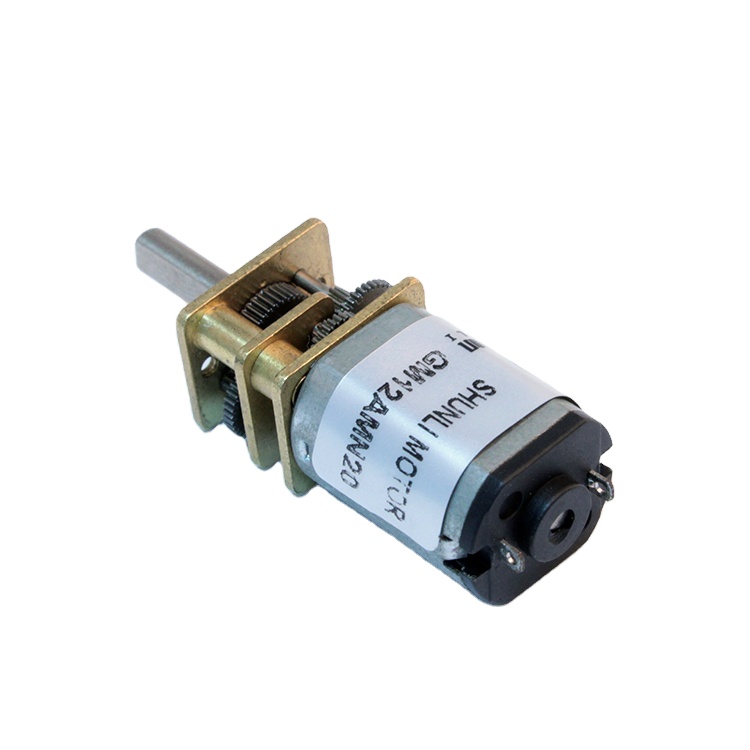

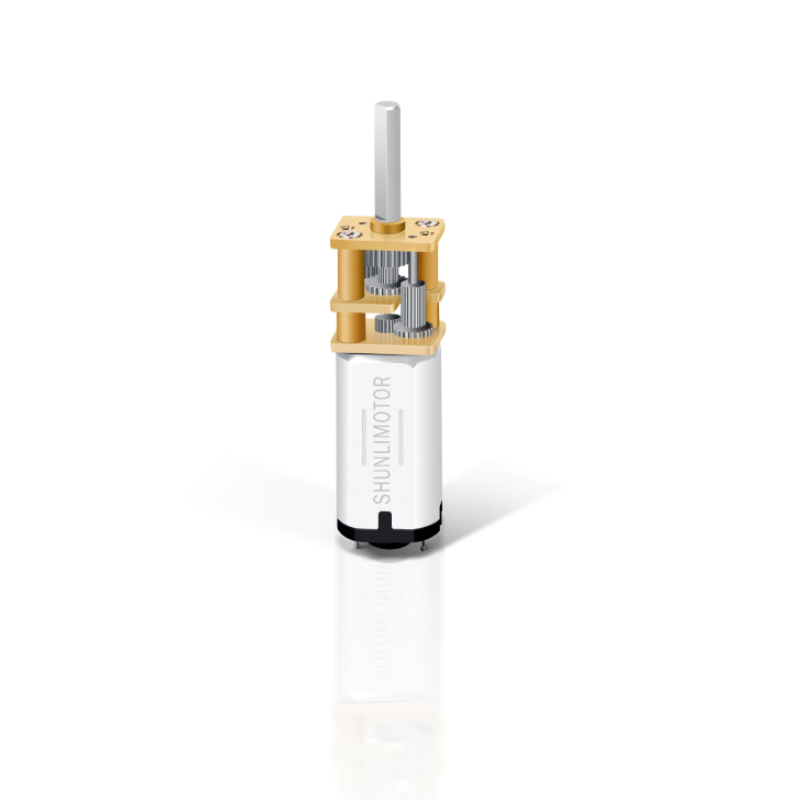

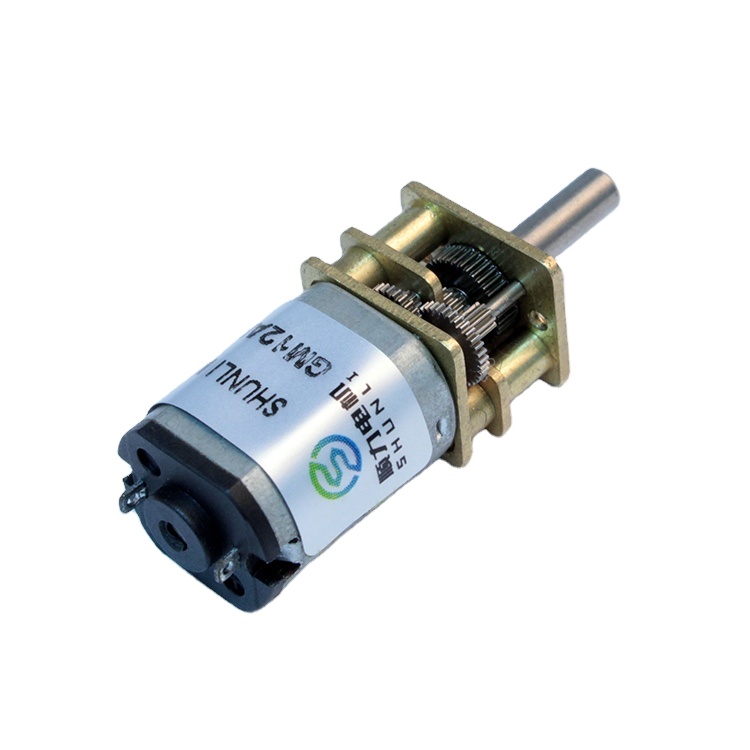

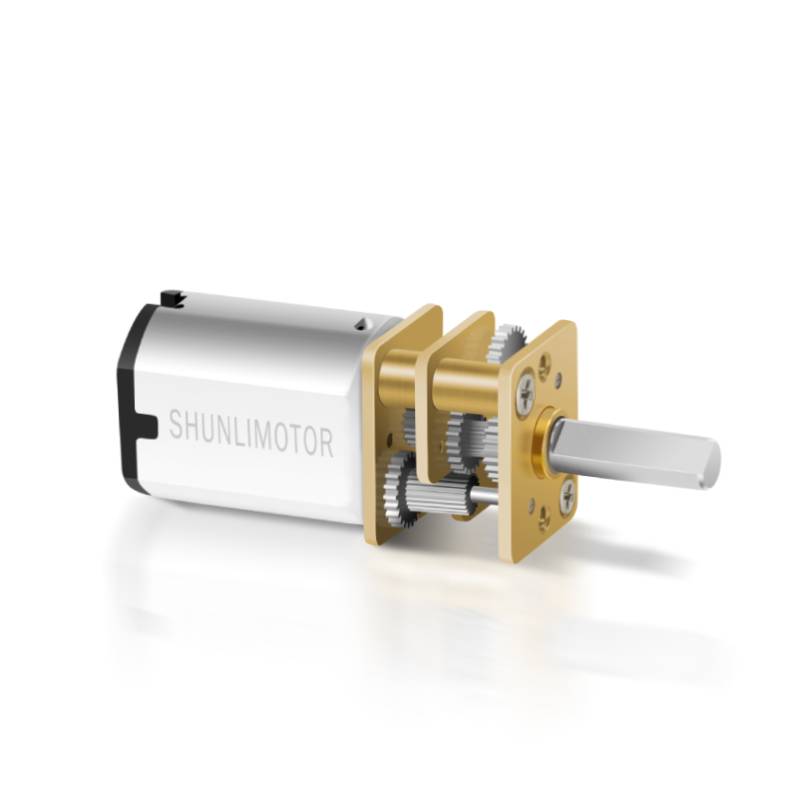

12mm Motor with Gearbox for Smart Home Appliance - 6V 12Volt DC Small Gear Motor

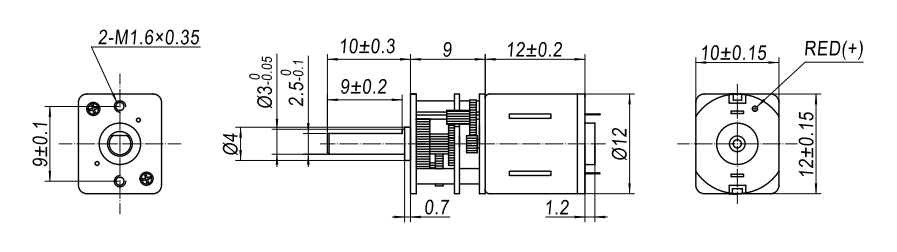

GM12AMN10

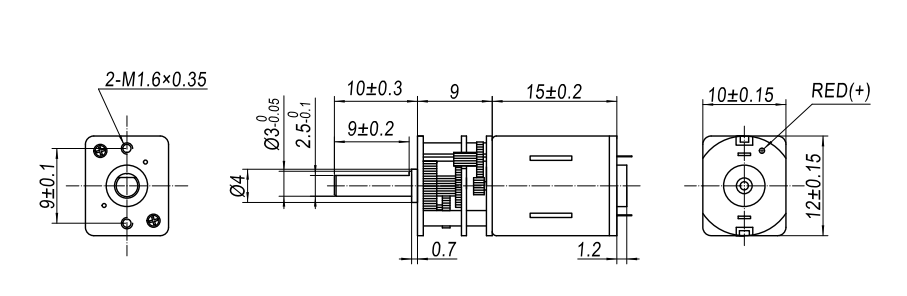

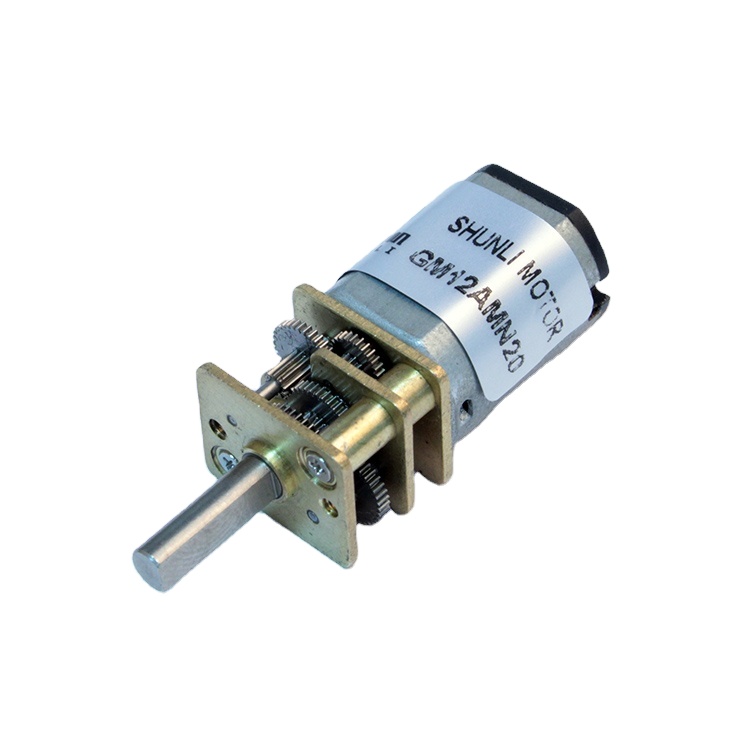

GM12AMN20

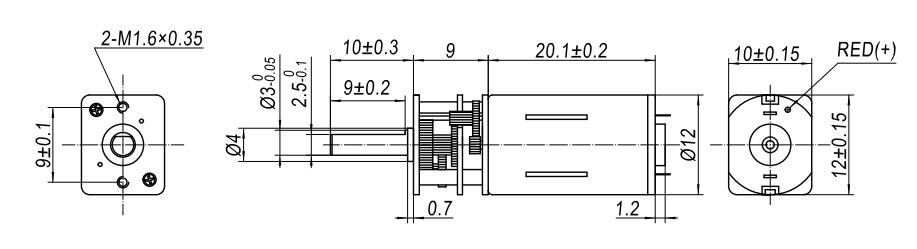

GM12AMN30
| Gearmotor Model | Ratio | Rated Voltage (V) | No-Load | Rated | Stall | ||||
|---|---|---|---|---|---|---|---|---|---|
| Speed | Current | Speed | Current | Torque | Current | Torque | |||
| RPM | mA | RPM | mA | mN.m / gf.cm | mA | mN.m / gf.cm | |||
| GM12AMN10-298K | 1 : 298 | 4.5~6VDC | 70 | ≤ 80 | 55 | ≤ 285 | 5.5/55 | ≤ 700 | 210/2100 |
| GM12AMN20-150K | 1 : 150 | 92 | ≤ 55 | 80 | ≤ 140 | 2.8/28 | ≤ 700 | 120/1200 | |
| GM12AMN30-10K | 1 : 10 | 2500 | ≤ 60 | 2200 | ≤ 195 | 4.0/40 | ≤ 400 | 26/260 | |
| Number of stages | 2 | 4 | 5 | 7 |
|---|---|---|---|---|
| Gearbox Length "L"(mm) | 9.0 | 9.0 | 9.0 | 12.1 |
| Ratio | 3K / 5K / 10K | 17K/20K/30K/36K/ 50K/63K/100K |
110K/150K/210K/ 250K/298K/380K |
372K/625K/1000K |
| Max. Rated Torque | 200 gf.cm | 600 gf.cm | 1000 gf.cm | 1500 gf.cm |
| Max. Gear Breaked Torque | 600 gf.cm | 1500 gf.cm | 2800 gf.cm | 3500 gf.cm |
| Gearbox Efficiency | 80%~90% | 65%~70% | 55%~60% | 45%~50% |
We are a factory specializing in producing motors for more than 14 years. With multiple production facilities, a professional R&D team, mature management, and highly experienced engineers and sales staff, we are dedicated to bringing you a reliable and smooth purchasing experience.
In order to ensure top-tier quality, every step from raw materials receiving to final shipment is carefully checked. Quality is the core foundation of our development.
Give us a chance to cooperate with you!
Are you a trading company or a manufacturer?
We are a factory. We have specialized in micro DC motors and DC gear motors for more than 14 years.
What is the payment term for a new customer?
We support multiple payment methods including online secure payments (MasterCard, Visa, etc.), PayPal, and T/T (Telegraphic Transfer).
I cannot find a suitable motor on your website, can you customize the motor for me?
Yes, we can customize and manufacture a suitable motor according to our customers' specific application requirements.
Do you have certificates for the motors?
Yes, we hold certificates such as CE, FCC, ISO, and others. If you have additional specific certification requirements, we can apply for them to fit your market.
How is your Quality Control managed?

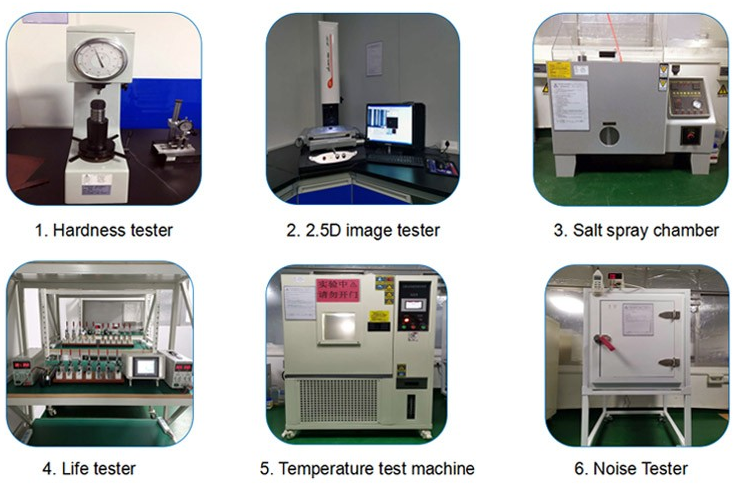

We have professional QC inspectors assigned to every step of the production process. Finished motors undergo comprehensive testing using advanced machinery, including Hardness Testers, 2.5D Image Testers, Salt Spray Chambers, Life Testers, Temperature Chambers, and Noise Testers.
What is the typical lead time for samples?
Standard samples are typically produced within 2 weeks, while fully customized samples are delivered within 3 weeks.
