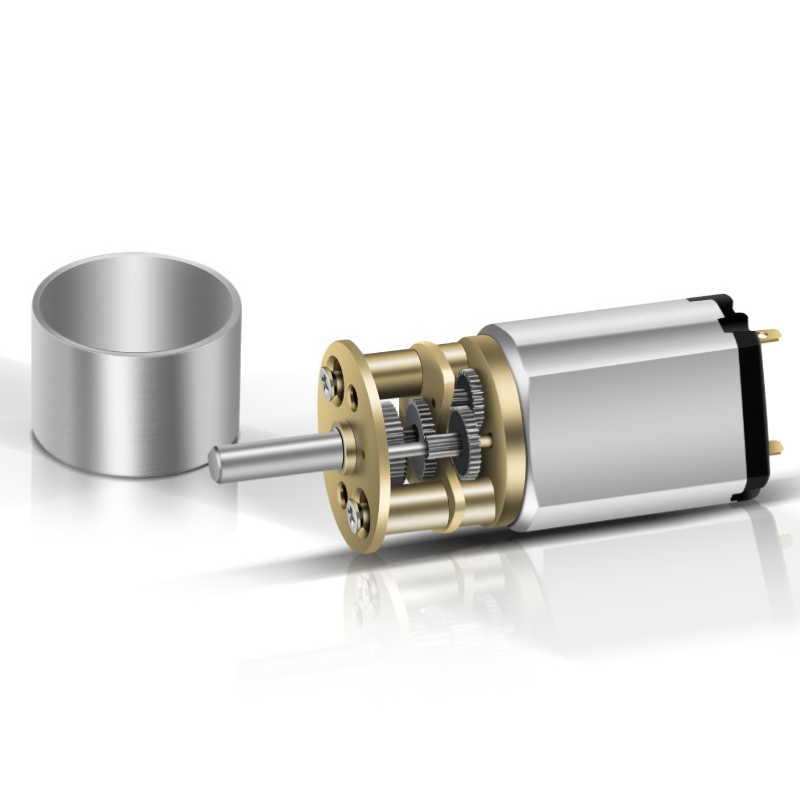

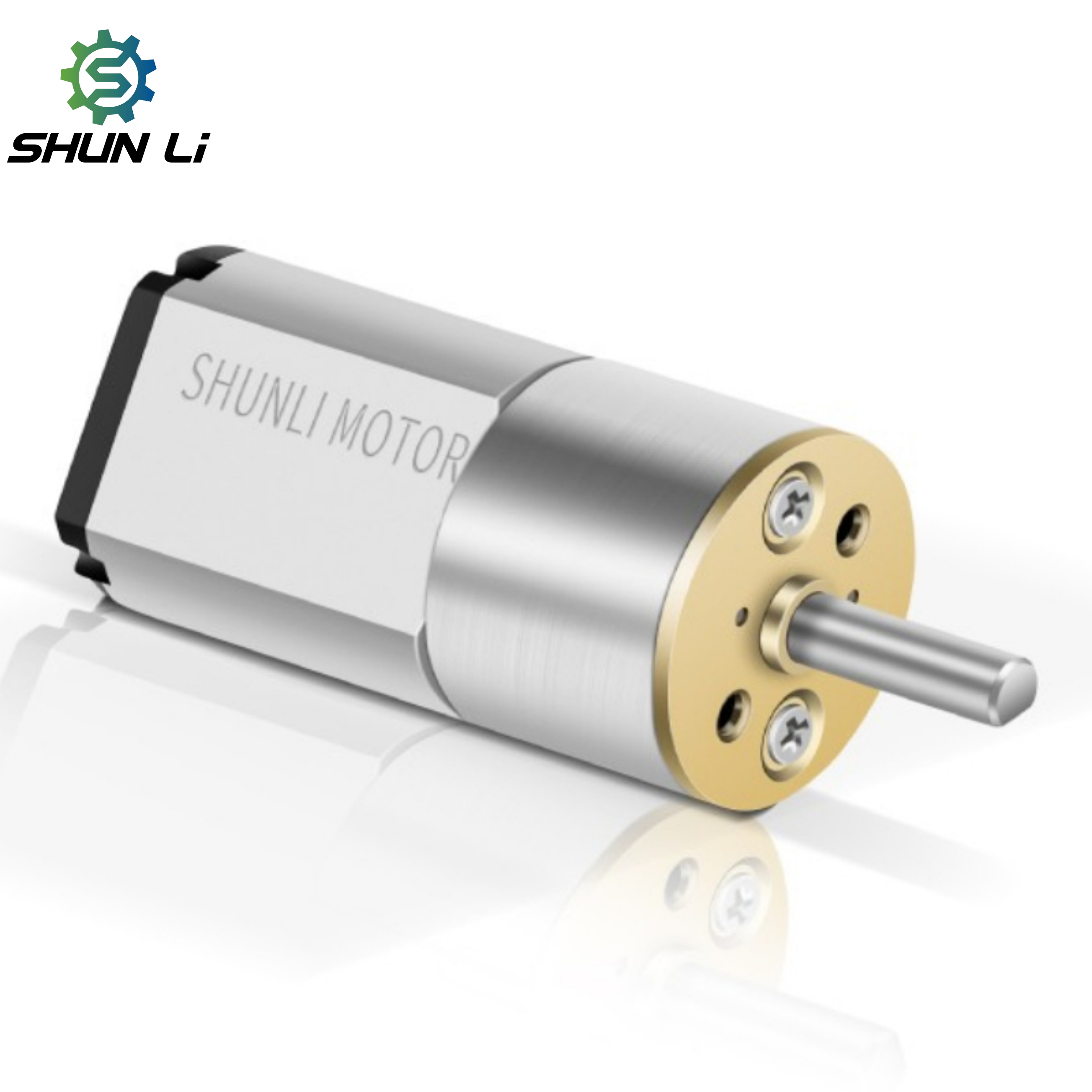

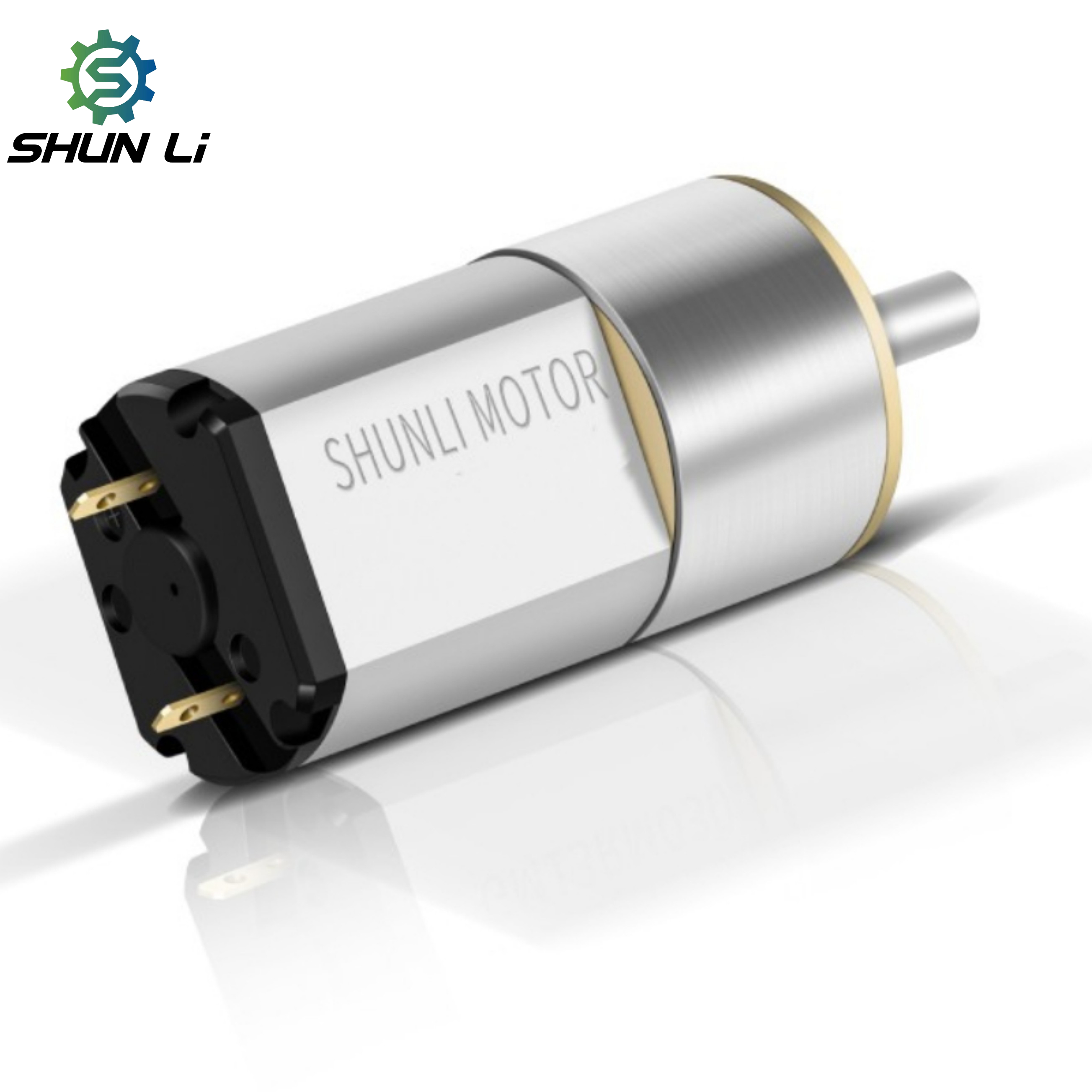

Shunli Custom 3.7 Volt 12v Dc Reduction Gear Micro Motor of High Torque Diameter of the Reduction Gear Box 13mm for Gas Valve
Product Description
| Gearmotor Model | Ratio | Rated Voltage (V) | No-Load | Rated | Stall | ||||
|---|---|---|---|---|---|---|---|---|---|
| Speed | Current | Speed | Current | Torque | Current | Torque | |||
| RPM | mA | RPM | mA | N.m / Kgf.cm | mA | N.m / Kgf.cm | |||
| GMP16M030-100K | 1 : 100 | 3.7 VDC | 100 | ≤ 80 | 72 | ≤ 300 | 0.03 / 0.3 | ≤ 700 | 0.11 / 1.1 |
| GMP16M050-300K | 1 : 300 | 3.7 VDC | 50 | ≤ 200 | 40 | ≤ 650 | 0.1 / 1.0 | ≤ 3000 | 0.55 / 5.5 |
| Number of stages | 4 | 5 | 6 | 7 |
|---|---|---|---|---|
| Ratio | 25K / 30K / 35K / 42K | 70K / 85K / 100K / 119K | 143K / 169K / 200K / 239K / 285K | 300K / 400K / 568K / 800K |
| Gearbox Length “A” (mm) | 13.2 | 14.1 | 15.6 | 17.0 |
| Max. Rated Torque | 0.6 Kgf.cm | 1.0 Kgf.cm | 1.5 Kgf.cm | 2.0 Kgf.cm |
| Max. Gear Broke Torque | 1.5 Kgf.cm | 3.0 Kgf.cm | 4.0 Kgf.cm | 5.0 Kgf.cm |
| Gearbox Efficiency | 60%~70% | 55%~60% | 50%~55% | 45%~50% |
Are you trading company or manufacturer?
We're factory. We specialize in micro dc motor and dc gear motor for more than 14 years.
What is the payment term for a new customer?
We can draw up an Online Assurance Order for our new customer, which can be paid online with Master Card, Visa, etc. Customers can also pay with PayPal or TT, etc.
I can't find a suitable motor on your website, can you customize the motor for me?
Yes, we can customize a suitable motor according to our customer's requirements.
Do you have certificates for the motors?
Yes, we have CE, FCC, ISO, etc. If you have other certification requirements, we can apply for them for you.
How is your Quality Control?
We have professional checking staff on every production line process. After finishing the whole motor, we have specialized testing machines to inspect the motor, such as Hardness Tester, 2.5D Image Tester, Salt Spray Chamber, Life Tester, Temperature Test Machine, and Noise Tester, etc.
Can I request samples for testing before placing a bulk order?
Yes, sample evaluations are highly recommended to ensure the specifications meet your project needs before proceeding with mass production.
