12v 24v 10W 100W DC Motor High Speed 15000 RPM for Air Pump/RC Model/Cordless Power Tool
Product Description
Product Description
12v 24v 10W 100W DC Motor high speed 15000 RPM for Air Pump/RC Model/Cordless Power Tool
Product Details
Motor Customized Specification Available

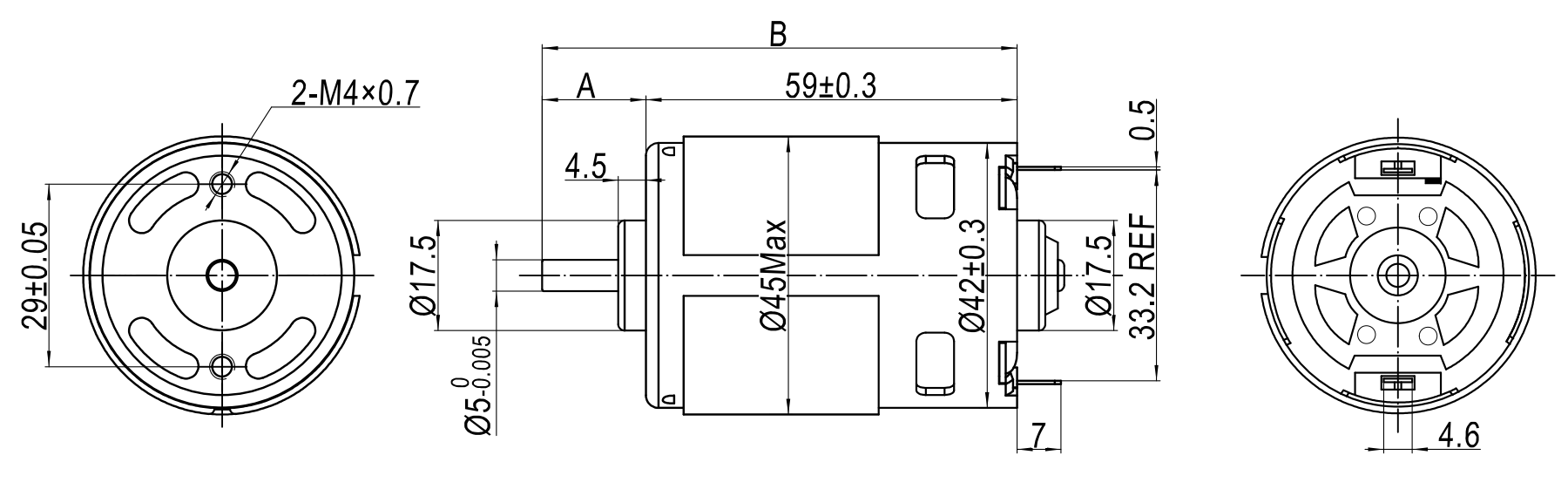

Reference Drawing

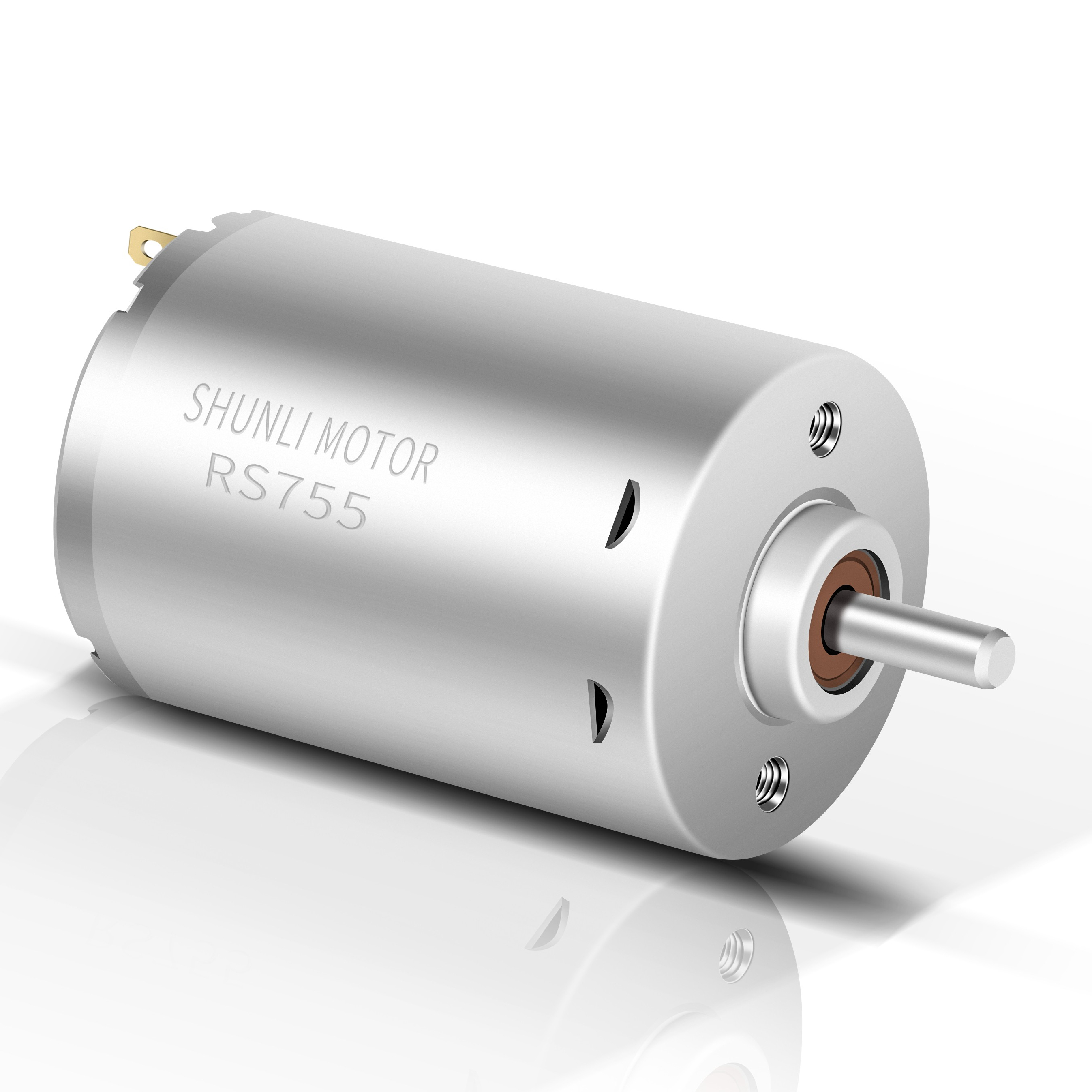

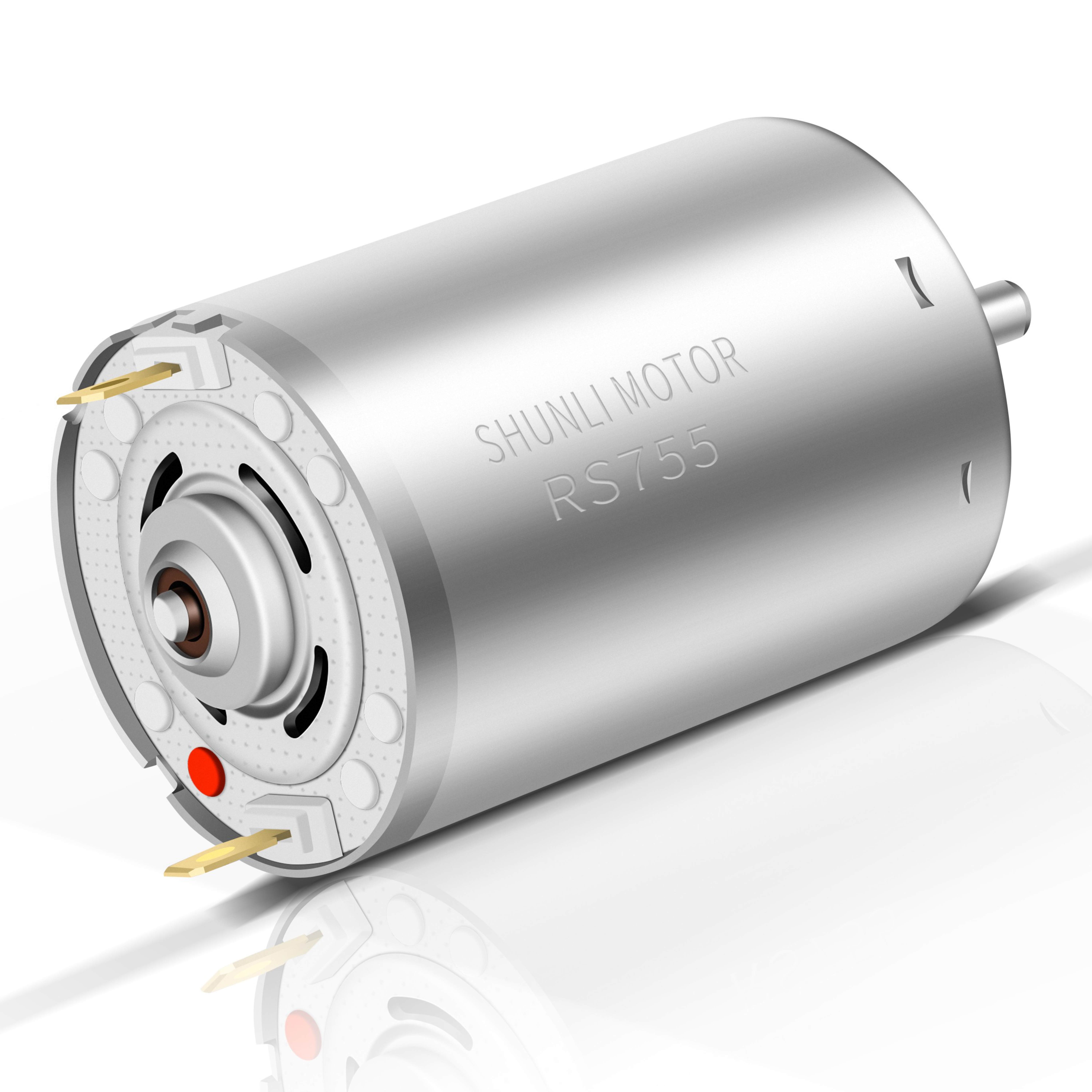

RS - 755 H
RS - 775 H
The length of shaft can be customized
| PMDC MOTOR Technical Data | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Model | Rated Voltage (V) | No-Load | Rated | Stall | |||||||
| Speed | Current | Speed | Current | Torque | Power | Current | Torque | ||||
| Operating Range | Nominal | RPM | A | RPM | A | mN.m / gf.cm | W | A | mN.m / gf.cm | ||
| RS-770H | 8523R | 6.0~12.0 | 12 VDC | 15000 | 2.2 | 13177 | 15.91 | 81/826.2 | 111.8 | 115 | 666.9/6802 |
| RS-775H | 25110R | 6.0~24.0 | 24 VDC | 3478 | 0.15 | 2925 | 0.75 | 44.4/452.9 | 13.35 | 4.07 | 245.7/2506 |
Application
