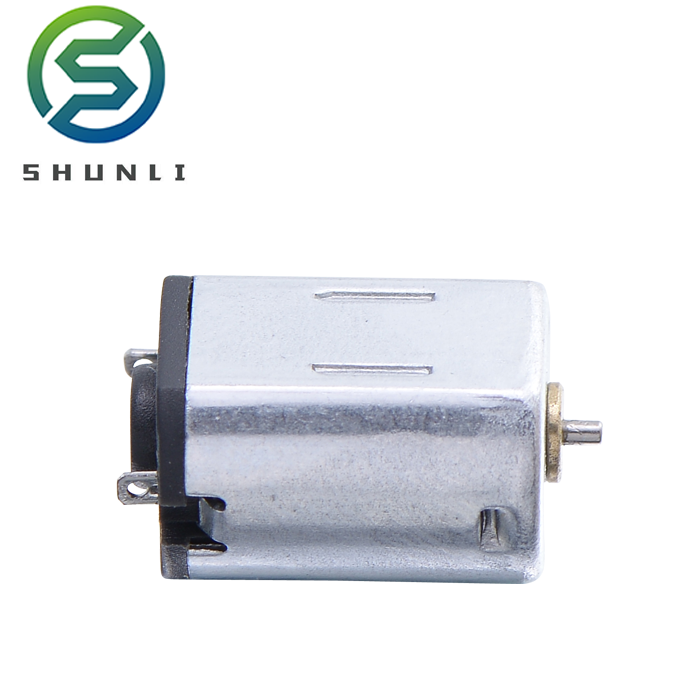

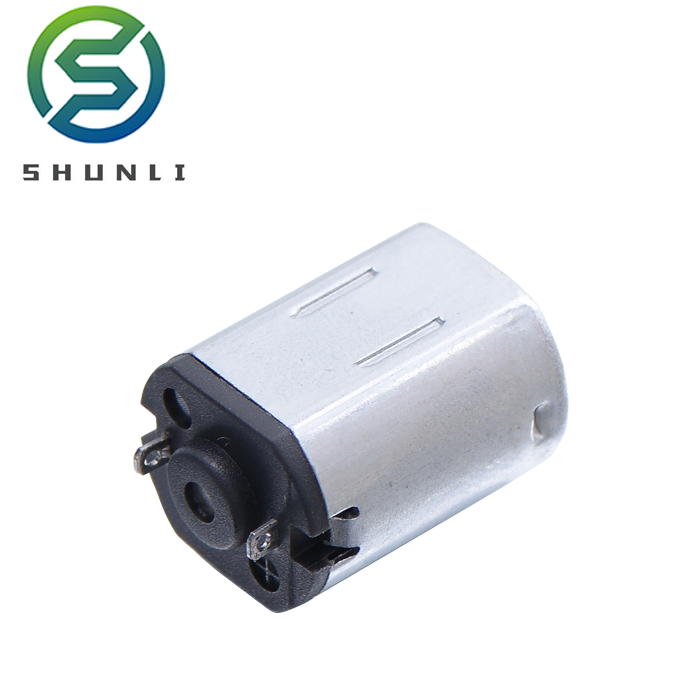

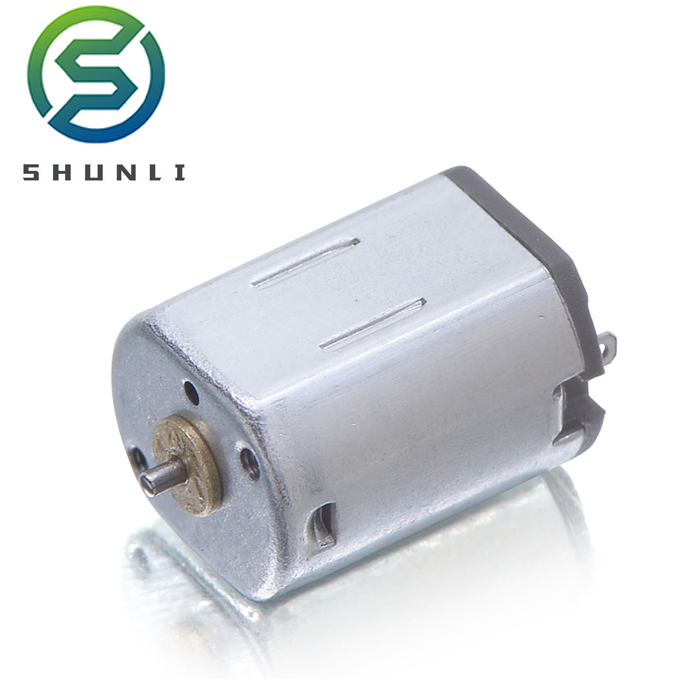

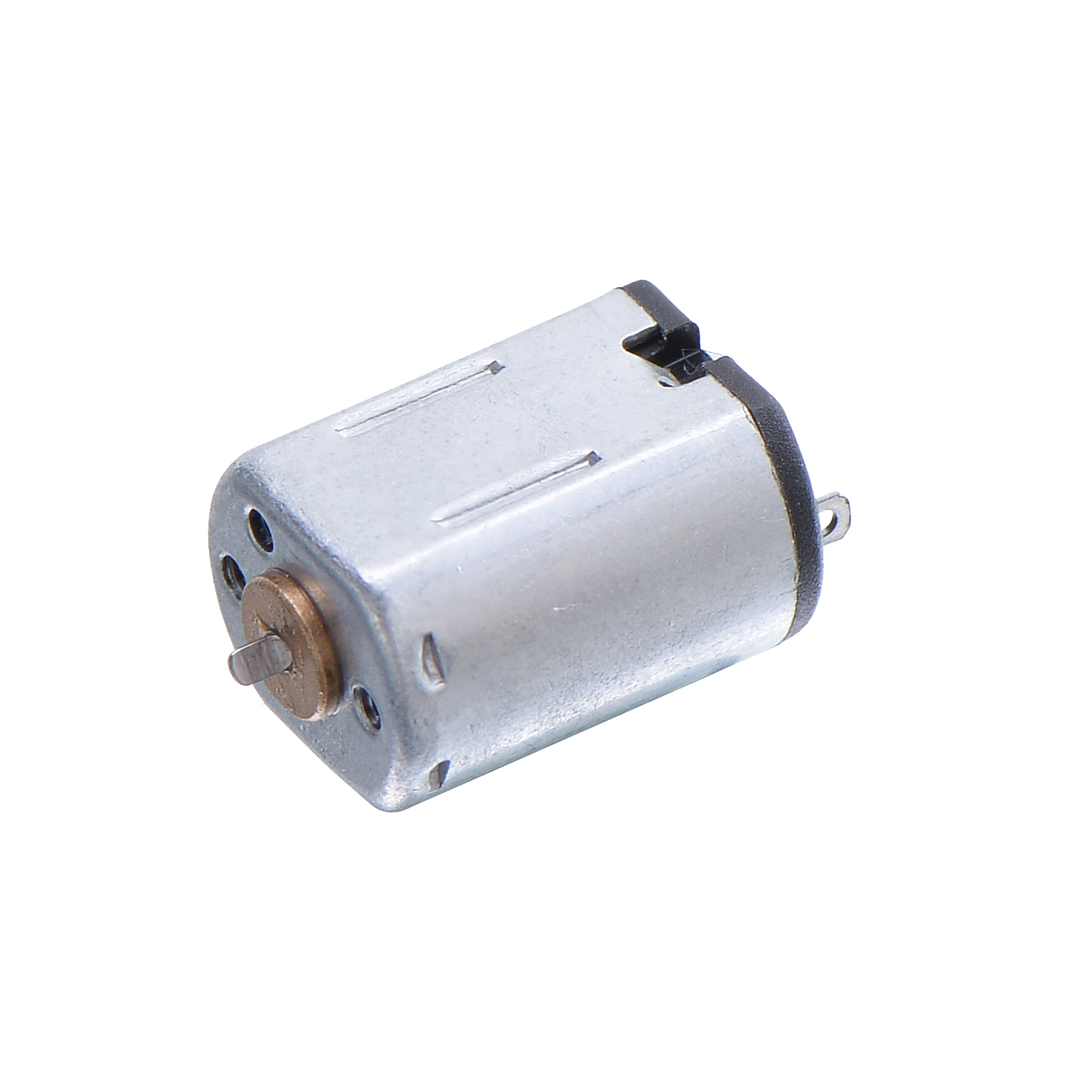

Customized 1.5v 3v 4.5v SFF-N20VA Brush Lock Mini Electric Motor
Product Description
| PMDC MOTOR Technical Data | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| PMDC MOTOR Model | Rated Voltage (V) | No-Load | Rated | Stall | |||||||
| Operating Range | Nominal | Speed | Current | Speed | Current | Torque | Power | Current | Torque | ||
| RPM | mA | RPM | mA | mN.m / gf.cm | W | mA | mN.m / gf.cm | ||||
| FF-N20VA | 05240 | 3.0~12.0 | 12 VDC | 16100 | 15 | 12240 | 60 | 0.3/3 | 0.37 | 210 | 1.2/12 |
| 08260 | 2.0~5.0 | 5 VDC | 14600 | 30 | 11800 | 110 | 0.26/2.6 | 0.31 | 470 | 1.3/13 | |
| FF-N20TA | 2818 | 0.8~1.5 | 12 VDC | 34000 | 70 | 31000 | 1140 | 0.2/2 | 0.64 | 6000 | 1.6/16 |
We are a dedicated factory specializing in producing high-quality motors for more than 14 years. Our professional R&D team and mature management system ensure a seamless and reliable business experience.
To guarantee premium quality, every single step from raw material receiving to final shipment is carefully inspected. Reliable quality serves as the foundation of our enterprise development.
High credibility rating verified by top industry standards.
100% on-time delivery rate ensuring your supply chain runs efficiently.
Standard samples ready within 2 weeks; custom prototypes completed within 3 weeks.
Timely response window with all detailed inquiries replied to within 2 hours.
We are a factory. We have specialized in micro DC motors and DC gear motors for more than 14 years.
We can arrange online secure assurance orders for new customers, which can be paid online via credit card (Mastercard, Visa, etc.), PayPal, or T/T.
Yes, we can customize and configure a suitable motor according to our customers' specific requirements.
Yes, we hold CE, FCC, ISO, and other key certifications. If you require any other specific country-level certificates, we can apply for them on your behalf.

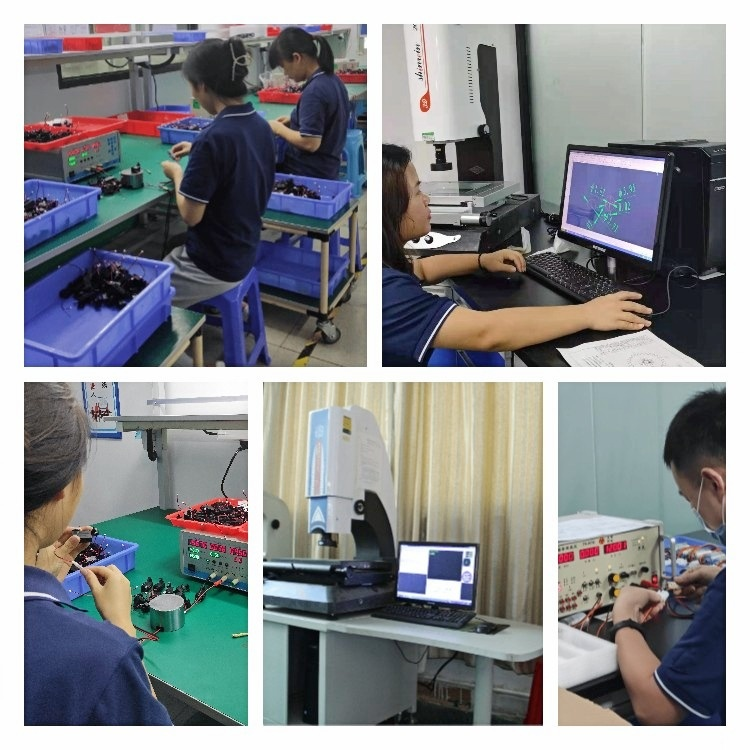

We have professional QC inspectors stationed at every step of the production lines. Finished motors undergo thorough parameter tests utilizing advanced machinery such as Hardness Testers, 2.5D Image Testers, Salt Spray Chambers, Life Testers, Temperature Chambers, and Noise Testers.
Standard samples are generally completed within 2 weeks, while mass production orders typically take 3 to 4 weeks depending on the order volume and customization specifications.
