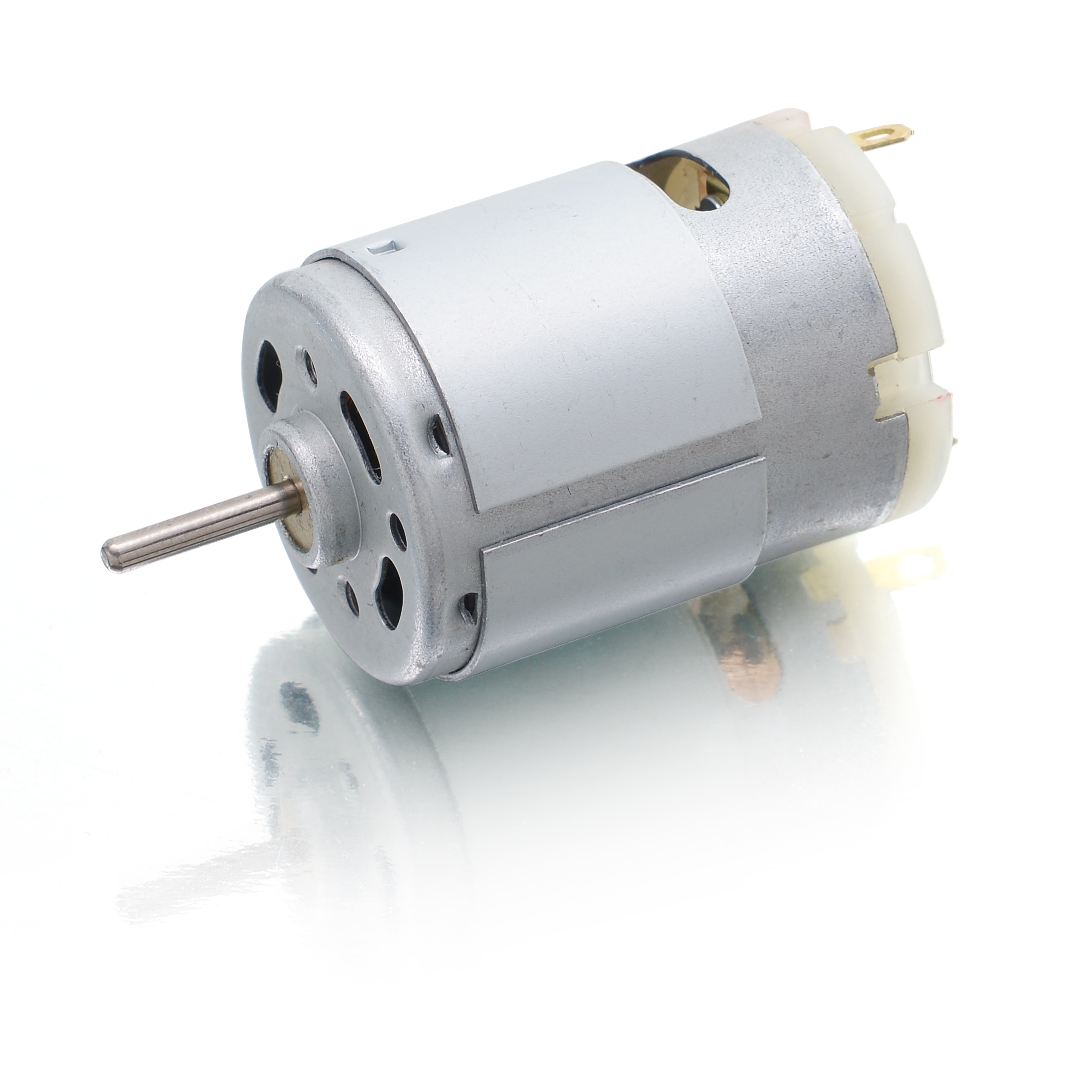

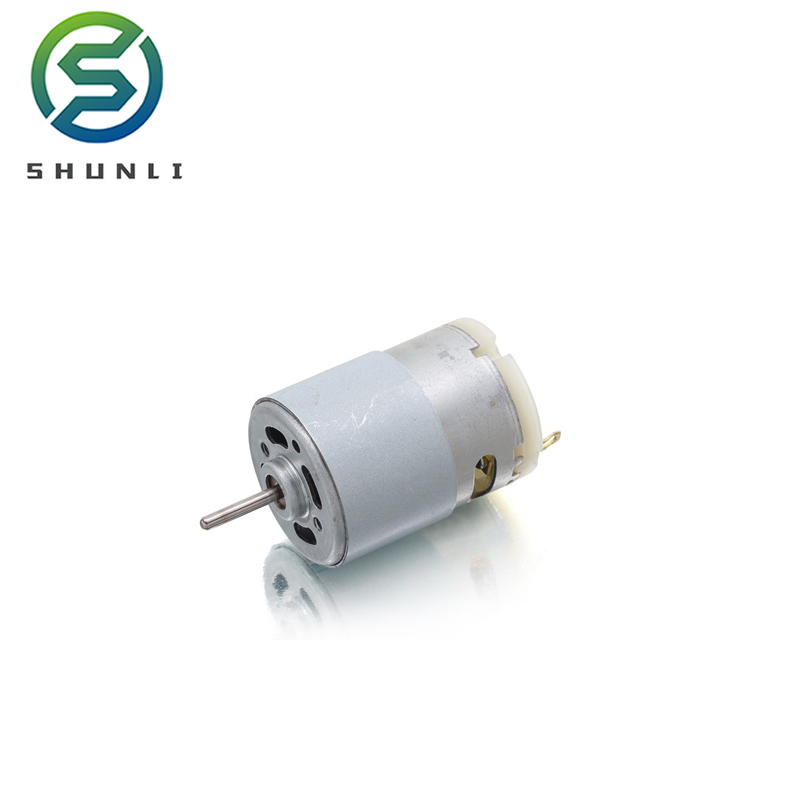

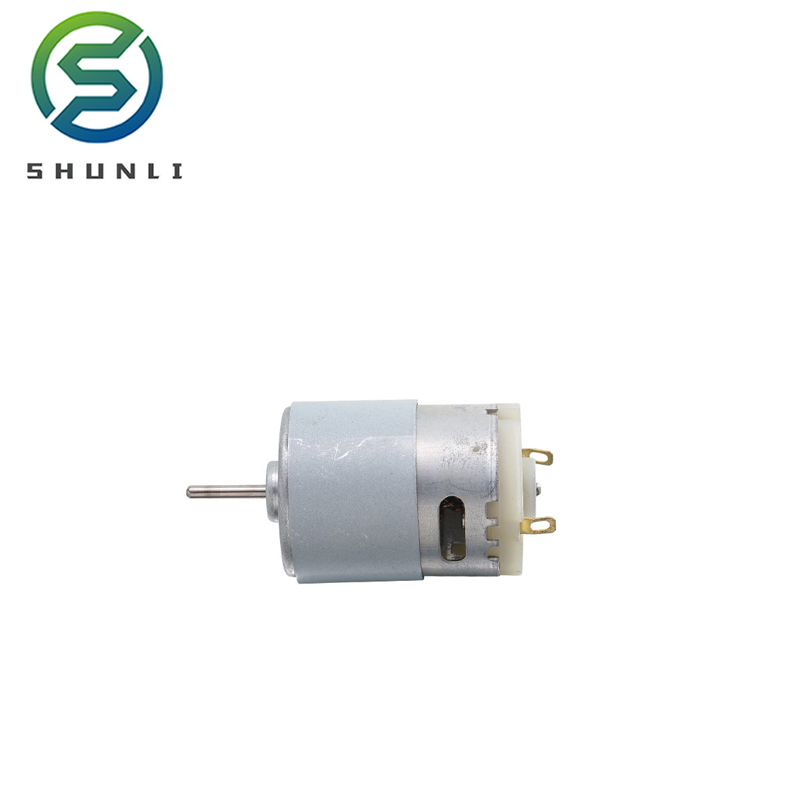

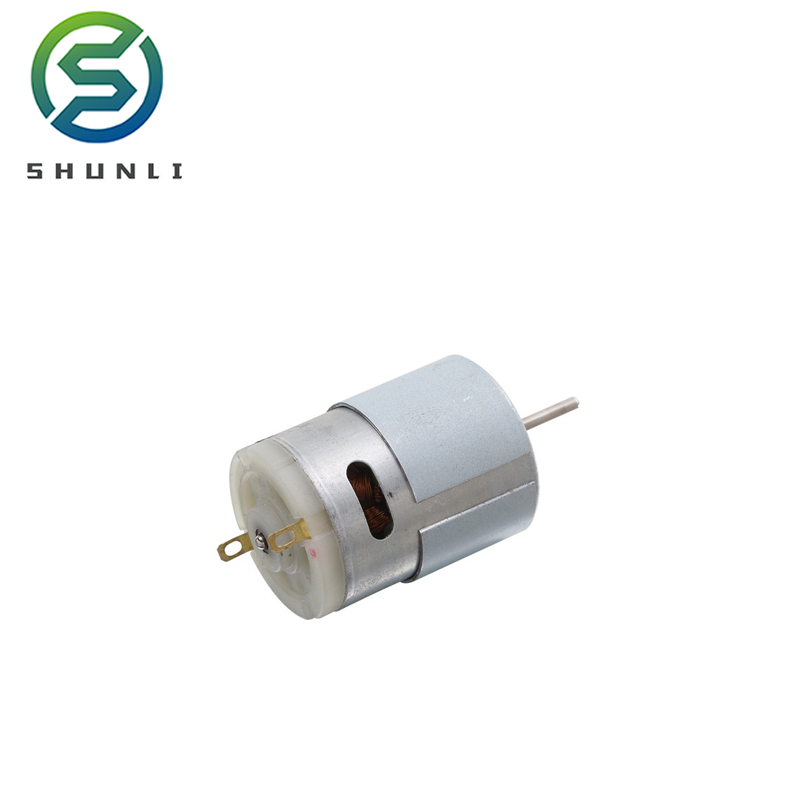

12 Dc Motor 9000 Rpm Brush Micro Motor 6-24v Is Available

1 / 5

12 Dc Motor 9000 Rpm Brush Micro Motor 6-24v Is Available

Send Inquiry

Product Description

Special Promotion

12 Dc Motor 9000 Rpm Brush Micro Motor Promotion

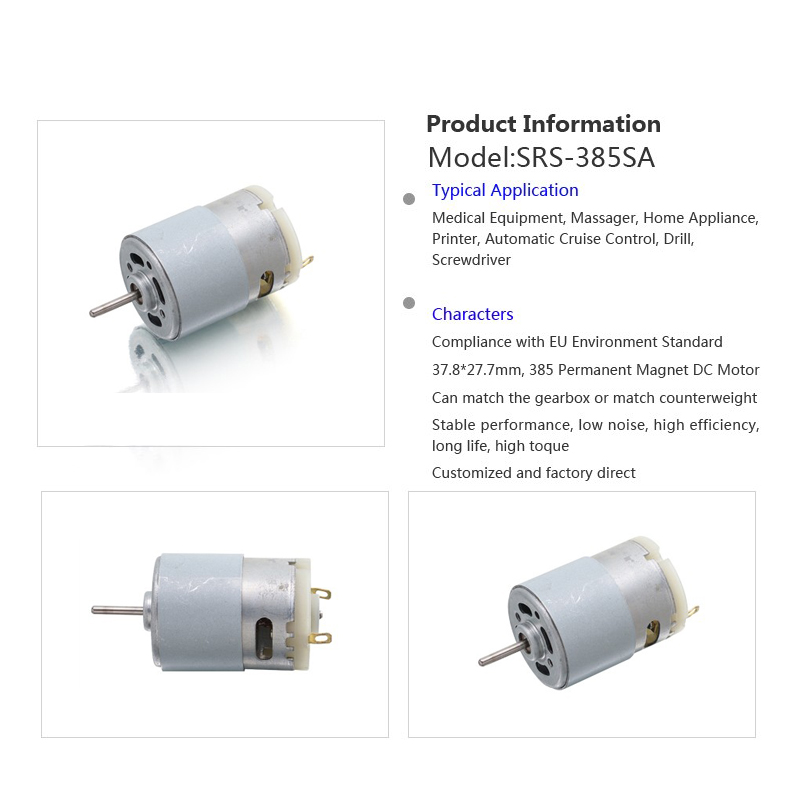

Product Description

12 Dc Motor Technical Specification Diagram

PMDC MOTOR TECHNICAL DATA
Model		Rated Voltage (V)		No-Load		Rated				Stall
Model		Operating Range	Nominal	Speed (RPM)	Current (A)	Speed (RPM)	Current (A)	Torque (mN.m / gf.cm)	Power (W)	Current (A)	Torque (mN.m / gf.cm)
RS-380SH	4052	3.0~6.0	4.8VDC	7800	0.32	6701	1.95	9.9 / 101	6.98	11.9	70.6 / 720
RS-380SH	3557	6.0~12.0	12VDC	21200	0.44	18367	2.85	11.26 / 114.9	21.68	18.5	84.3 / 860
RS-385SH	17110	6.0~24.0	24VDC	11000	0.15	9034	0.69	10.7 / 109	10.12	3.16	59.8 / 610
RS-385SH	2267	6.0~12.0	12VDC	10000	0.17	8340	0.85	7.5 / 76.5	6.53	4.29	45 / 459

Applications

Company Profile

Established in 2005, the enterprise is a high-tech manufacturer integrating the research, development, production and sales of various kinds of micro DC motors, geared motors, planetary geared motors, shade pole geared motors, and special gearbox motors. The products are widely used in automobiles, communications equipment, smart home, medical equipment, intelligent security, household appliances, commercial kitchen equipment, machinery, electronics, and other high-end transmission structures. These products are exported to more than 50 countries and regions worldwide.

Production Process

Certifications

Frequently Asked Questions

1. Are you a trading company or a manufacturer?

We are a direct factory. We have specialized in the research, development, and manufacturing of micro DC motors and DC gear motors for over 14 years.

2. What is the payment term for new customers?

We support secure online transaction orders which can be paid using MasterCard, Visa, etc. Additionally, transactions via PayPal or Wire Transfer (T/T) are also supported.

3. Can you customize a motor if I cannot find a suitable one on the website?

Yes. We can design and customize motors to meet specific parameter requirements including voltage, speed, current, torque, and output shaft specifications.

4. Do you have certificates for the micro DC motors?

Yes, our products carry CE, FCC, ISO, and other relevant standard credentials. If you require specific regional or industrial certifications, we can apply for them to support your order.

5. How do you handle quality control?

We have dedicated inspection personnel on each production line. Completed products undergo comprehensive assessment via advanced machinery, including Hardness Testers, 2.5D Image Testers, Salt Spray Chambers, Life Testers, Temperature Test Machines, and Noise Testers.

6. What operating voltages are available for the micro brush motors?

Our micro brush DC motor series supports operating ranges from 6V up to 24V, featuring high-speed rotation characteristics reaching up to 9000 RPM depending on specifications.
