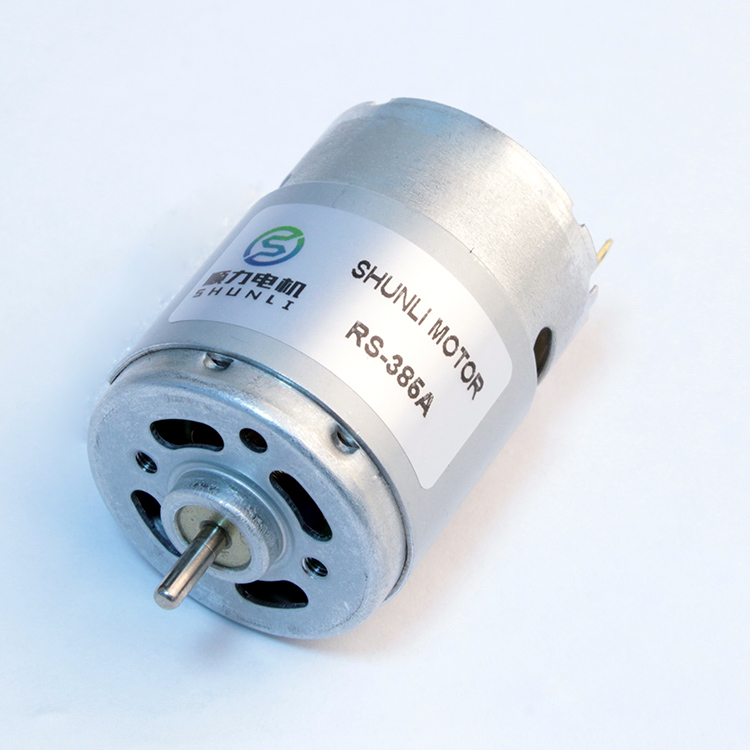

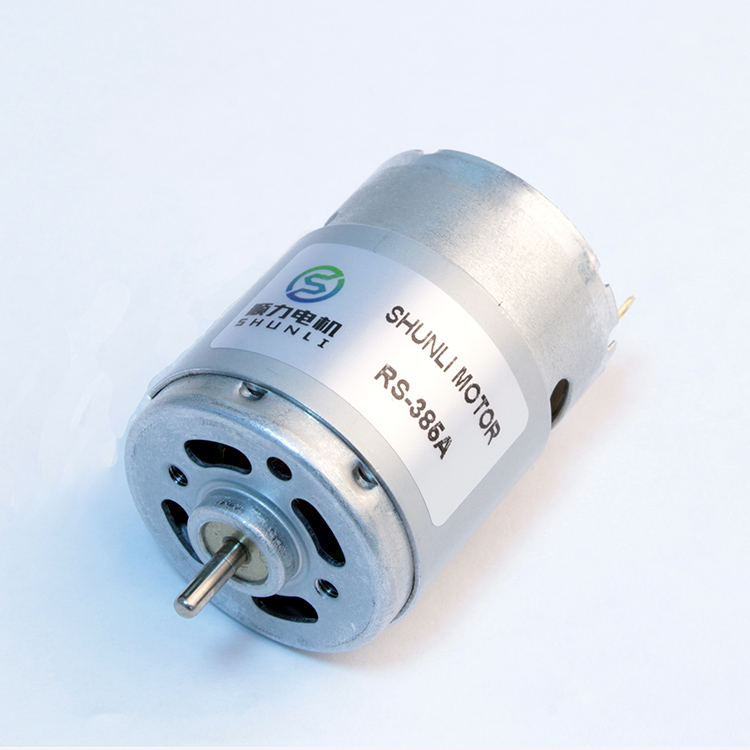

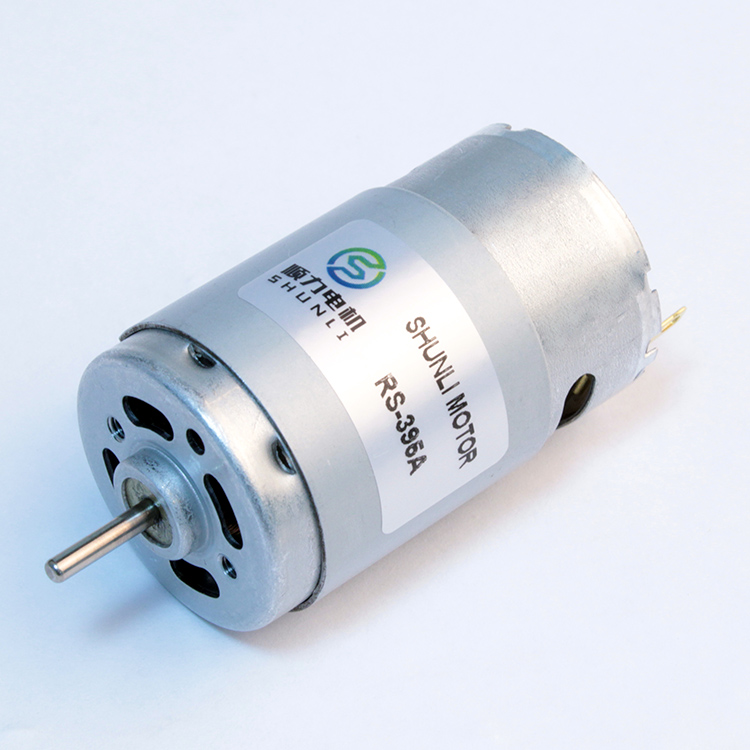

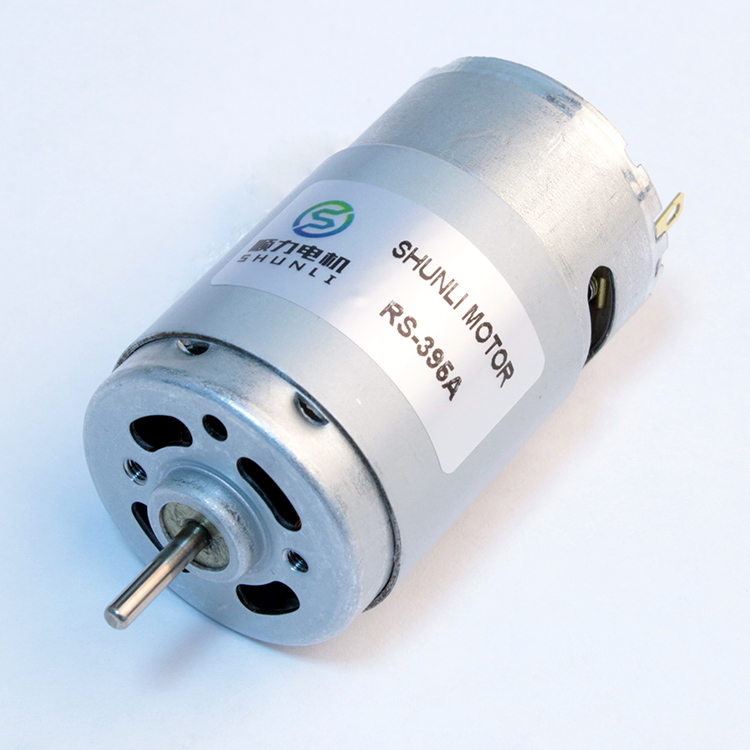

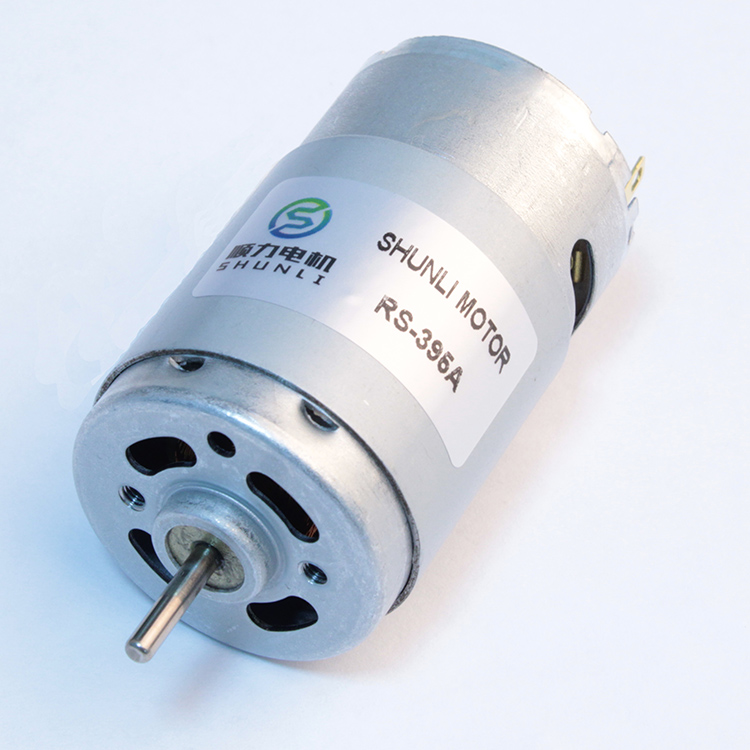

390 Dc Motor for Machine Fan From Shenzhen Supplier 12v 6000rpm Motor
Product Description
390 DC Motor for Machine Fan 12v 6000rpm Motor
Product Details
⚙️
Motor Customized Specification, Please contact me.
Reference Drawing
RS - 365
RS - 385
RS - 395
⚙️
The length of shaft can be customized, Please contact me.
Reference Datasheet
| PMDC MOTOR Technical Data | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Model | Rated Voltage (V) | No-Load | Rated | Stall | |||||||
| Speed | Current | Speed | Current | Torque | Power | Current | Torque | ||||
| Operating Range | Nominal | RPM | A | RPM | A | mN.m / gf.cm | W | A | mN.m / gf.cm | ||
| RS-390SH | 20156R | 6.0~12.0 | 12VDC | 5000 | 0.08 | 4243 | 0.33 | 6.07/61.9 | 2.72 | 2.22 | 42.2/430 |
| 2975 | 6.0~12.0 | 12VDC | 12000 | 0.29 | 10165 | 0.33 | 5.75/58.6 | 1.31 | 8.9 | 80.4/820 | |
| RS-395SH | 15130 | 6.0~12.0 | 12VDC | 3650 | 0.66 | 2949 | 0.25 | 5.83/59.5 | 1.8 | 1.06 | 30.4/310 |
| 15100R | 6.0~24.0 | 24VDC | 10300 | 0.07 | 8893 | 0.38 | 7.09/72.3 | 6.68 | 2.66 | 54.9/560 | |
Give us a chance to cooperate with you!
Frequently Asked Questions
What are the primary applications of the 390 DC motor?
The 390 DC motor is widely used in machine fans, personal care appliances, smart household devices, office automation equipment, and various DIY or industrial automation tools.
Can the motor shaft length and specifications be customized?
Yes, the shaft length, shape, and overall specifications can be fully customized to meet your specific design requirements. Please contact us with your technical requests.
What voltage options are available for the 390 and 395 DC motors?
These motors typically operate within a range of 6.0V to 24.0V DC. Standard nominal configurations include 12VDC and 24VDC options, depending on the specific model and requirements.
How do I choose between the RS-390 and RS-395 models?
The choice depends on your specific speed, current, and torque requirements. The RS-395 models generally support wider voltage ranges up to 24VDC and different power configurations. Please refer to our datasheet for detailed comparison values.
What is the typical speed range of these PMDC motors?
Depending on the configuration, the no-load speed ranges from 3,650 RPM up to 12,000 RPM at their designated nominal voltage levels.
