6v 12v 24v Micro Motor Electric Car Motor Micro Dc Motor
Product Description
6v 12v 24v Micro Motor Electric Car Motor Micro Dc Motor
Product Description

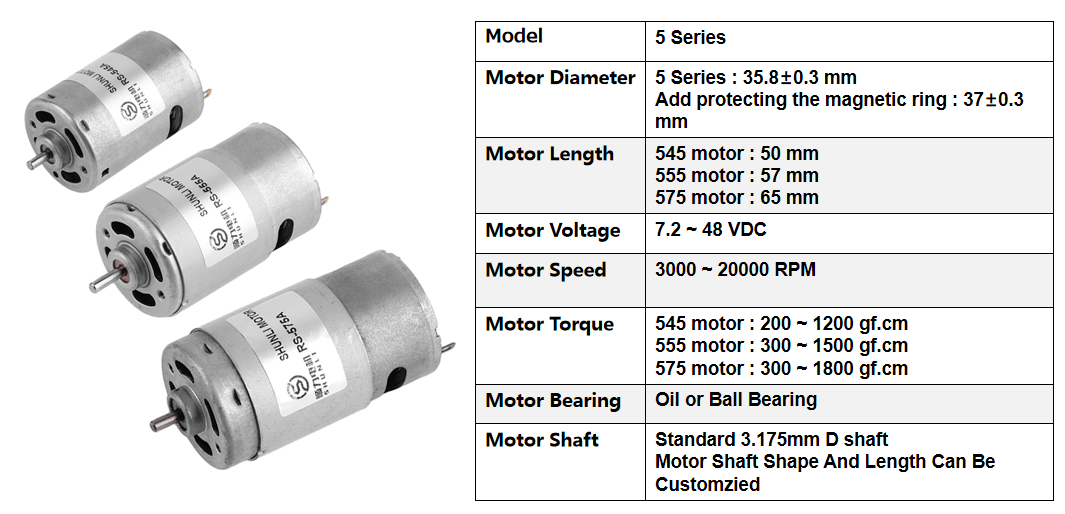

Product Details
Motor Customized Specification, Please contact us for details.

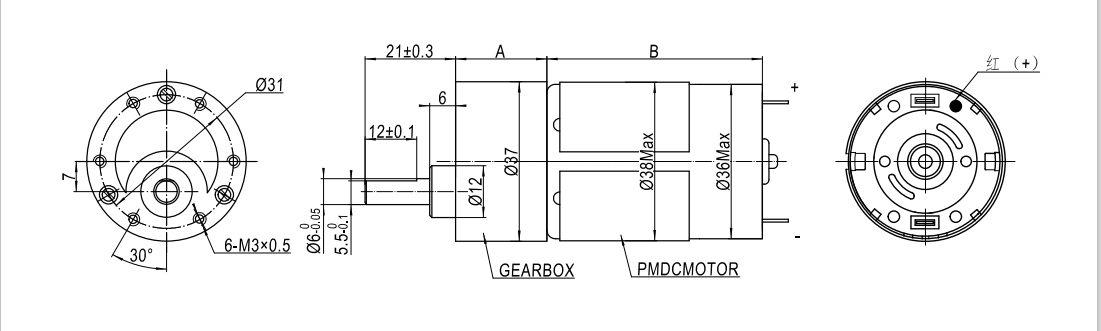

Reference Drawing

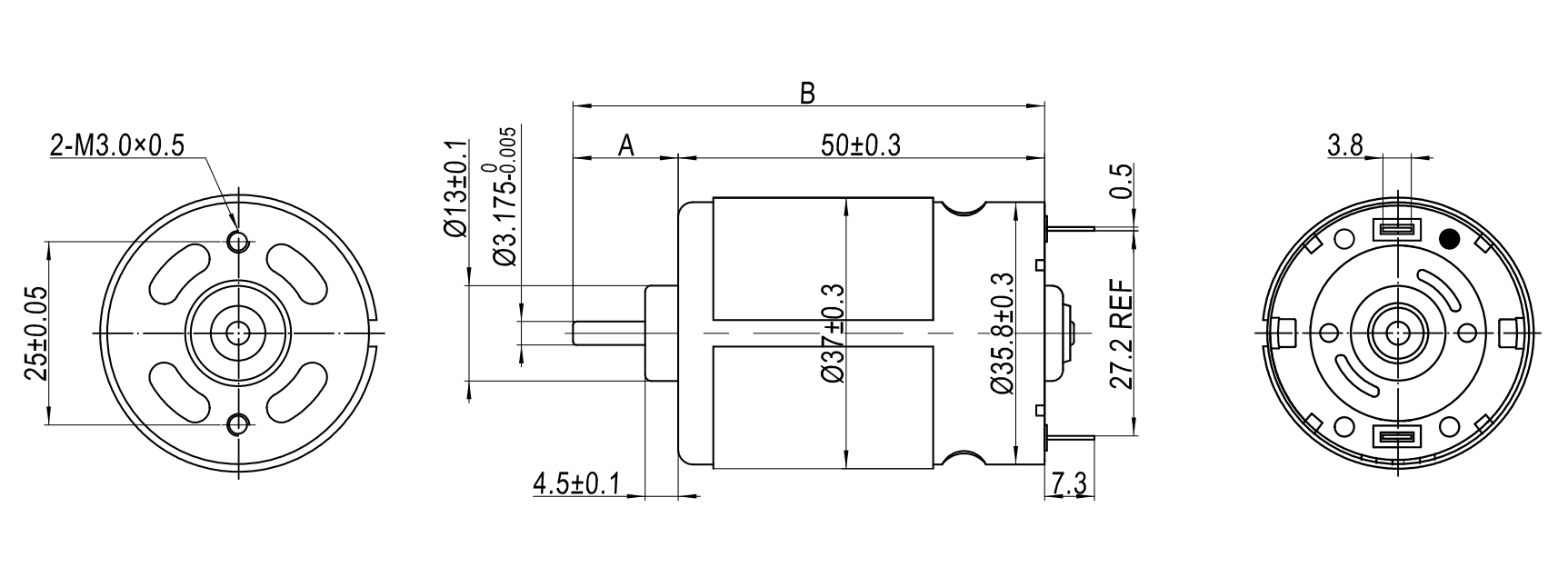

RS - 545 A

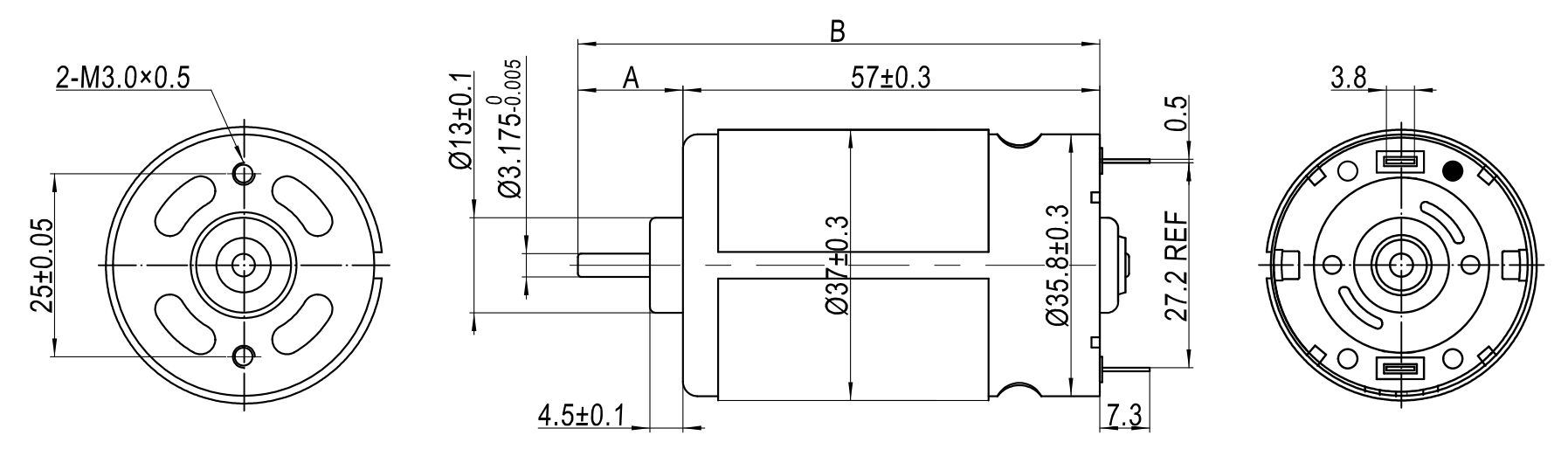

RS - 555 A

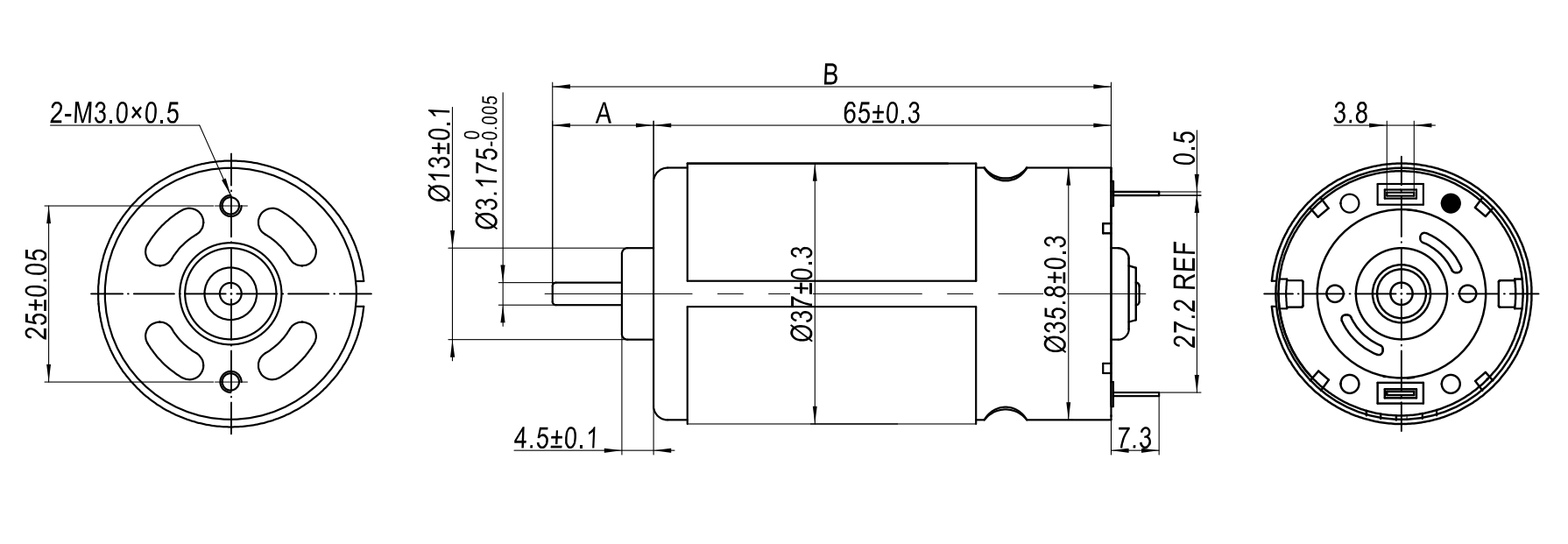

RS - 575 A
The length of shaft can be customized, Please contact us for customization requests.
Reference Datasheet
| PMDC MOTOR Technical Data | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Model | Rated Voltage(V) | No-Load | Rated | Stall | |||||||
| Operating Range | Nominal | Speed | Current | Speed | Current | Torque | Power | Current | Torque | ||
| RPM | A | RPM | A | mN.m / gf.cm | W | A | mN.m / gf.cm | ||||
| RS-550H | 23128R | 6.0~24.0 | 24VDC | 4500 | 0.1 | 3932 | 0.39 | 25.7 / 262 | 10.6 | 4.8 | 204 / 2080 |
| 6034 | 6.0~12.0 | 12VDC | 16000 | 1.12 | 13613 | 4.96 | 25.6 / 261.3 | 40.36 | 48.89 | 281.4 / 2870 | |
| RS-555H | 3540 | 6.0~12.0 | 12VDC | 7800 | 0.3 | 6708 | 1.84 | 21.9 / 223.4 | 15.35 | 11.31 | 156 / 1591 |
| 23100 | 6.0~24.0 | 24VDC | 7000 | 0.14 | 6004 | 0.77 | 19.2 / 195.8 | 12.09 | 4.2 | 124.5 / 1270 | |
Recommend Product
Frequently Asked Questions
What operating voltages are available for these micro motors?
Our micro DC motors standard configurations support 6V, 12V, and 24V power sources. Operating ranges can be customized based on your application constraints.
Can the output shaft length and shape be customized?
Yes, the motor shaft dimensions, including length, diameter, flat cuts (D-cut), or threading, can be fully customized to seamlessly fit your design interface.
What applications are these PMDC micro motors suited for?
These motors are highly versatile and widely used in electric car systems, automotive electronics, smart household appliances, office automation equipment, and mechanical actuators.
How do I determine which motor model (RS-545, RS-555, RS-575) I need?
Selection is based on your required torque, speed, and dimensional limitations. Please refer to our Reference Drawings and Technical Datasheet table to compare performance metrics, or contact us for assistance.
Do you provide technical drawings and datasheets for other models?
Yes, we supply detailed technical drawings, performance curves, and custom datasheets upon request. Contact our sales department to receive specialized documentation.
