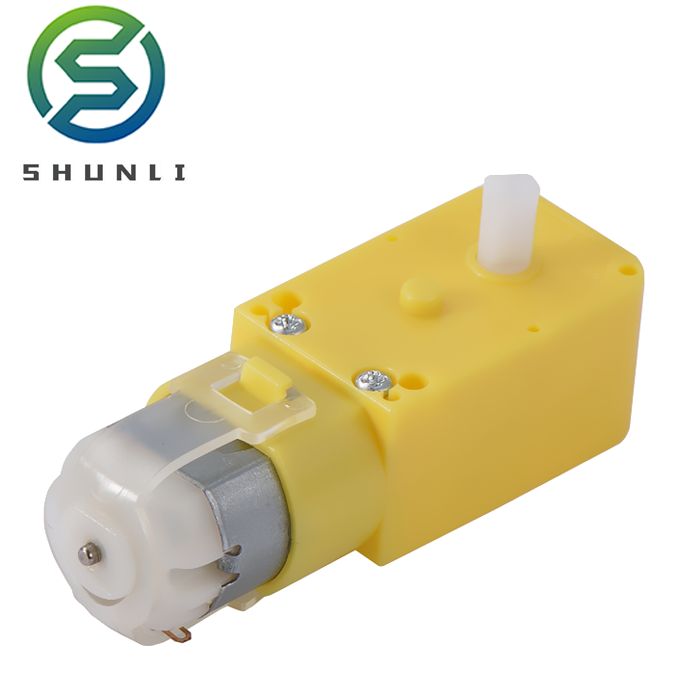

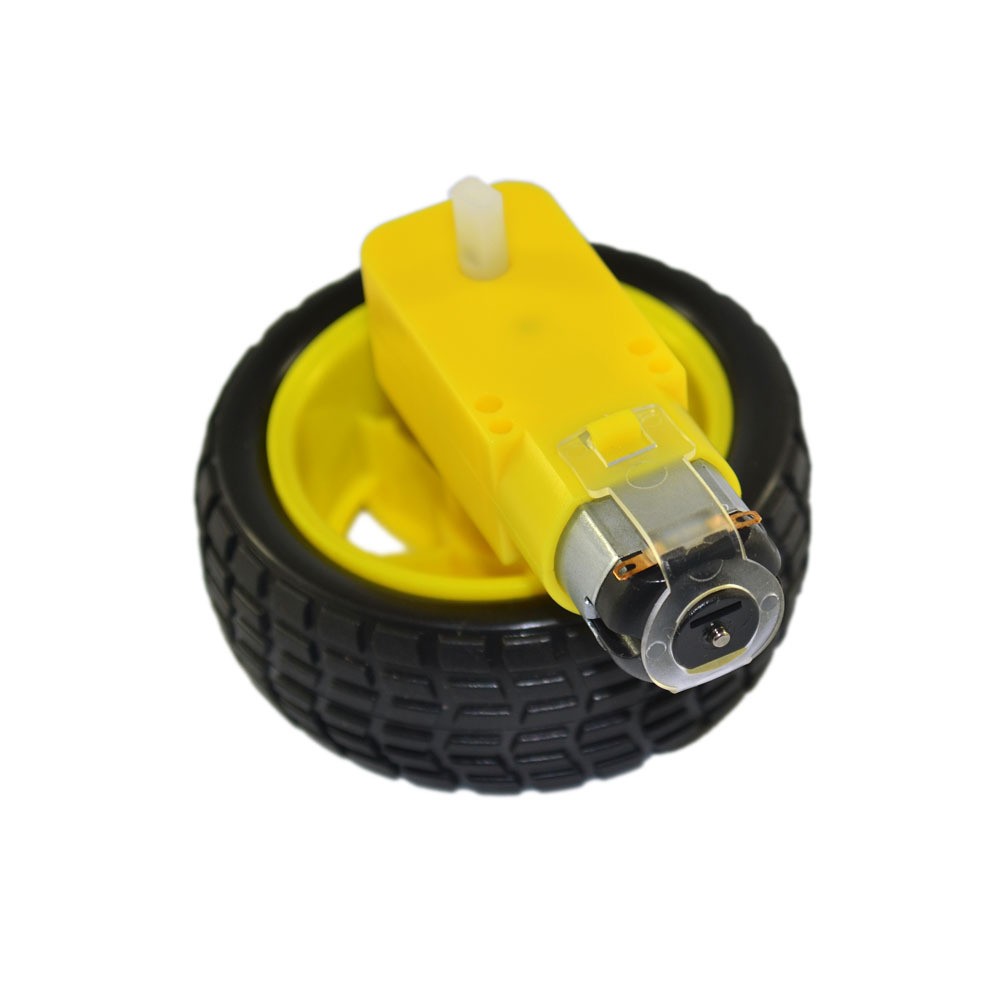

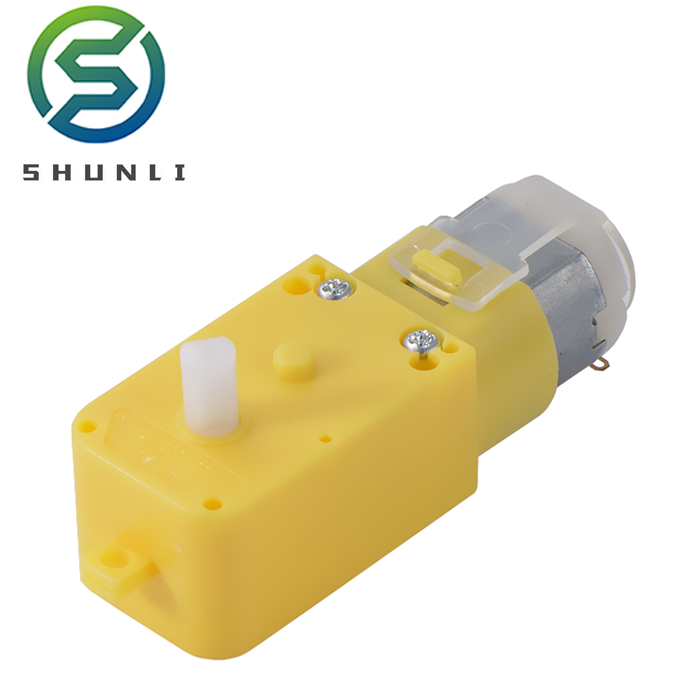

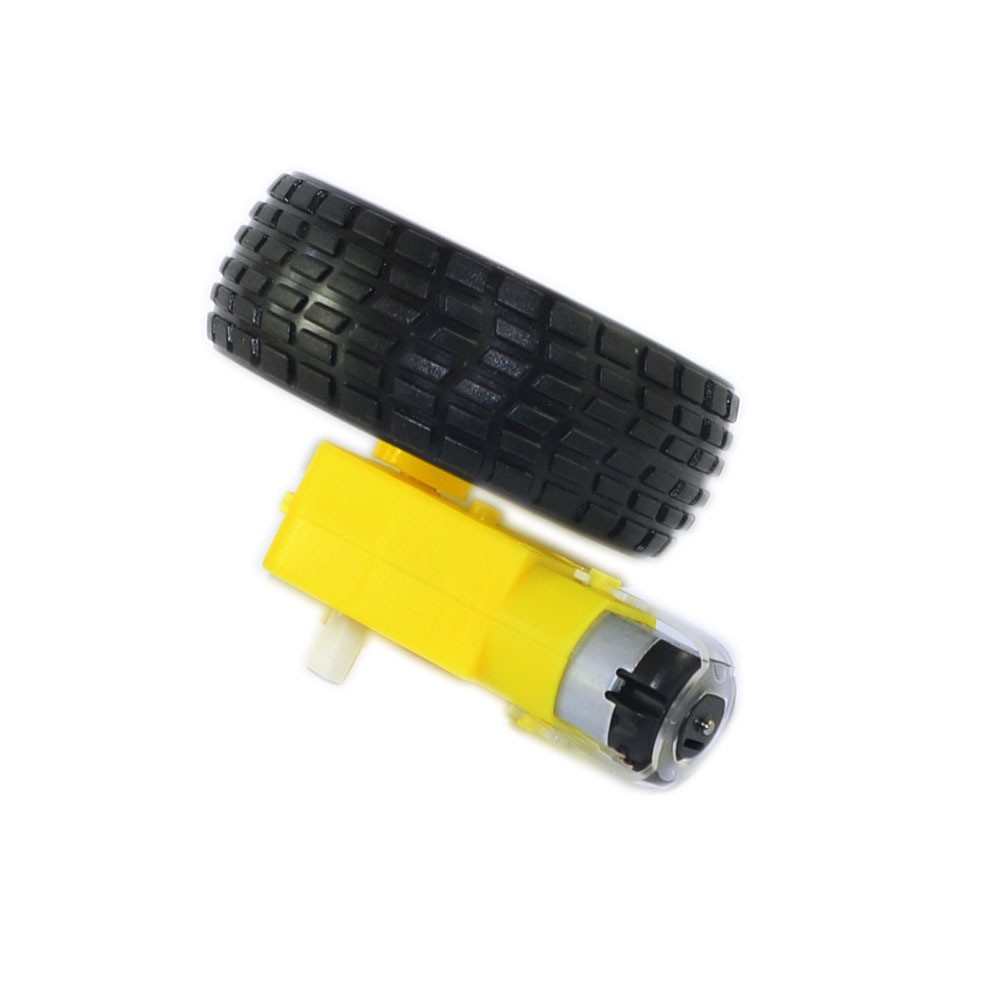

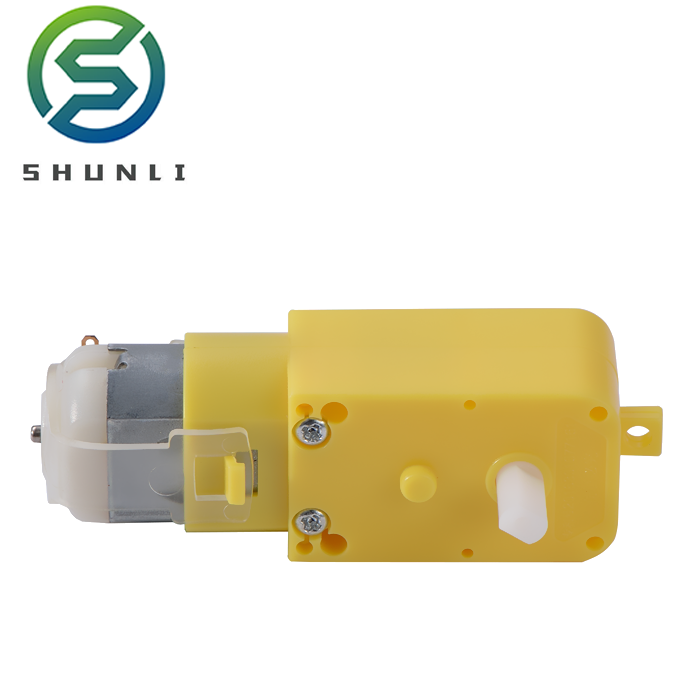

1.5v 3v 4.5v Mini Dc Gear Toy Motor with Reduction Plastic Gearbox for Toy / Toy Car / Robot
Product Description
1.5v 3v 4.5v Mini DC Gear Toy Motor with Reduction Plastic Gearbox for Toy / Toy Car / Robot
Engineered for durability and prolonged operating lifespan.
Optimized performance parameters for maximum energy conversion efficiency.
Consistent output and reliable behavior under variable conditions.
Our motors have long life, high efficiency and good stability. Insert the drive inside the motor to capture data more accurately.
| Model | Voltage | No-load | Load | Stall | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Working Voltage | Rated voltage | Speed | Current | Speed | Current | Torque | Power output | Stall torque | Current | |||
| V | rpm | A | rpm | A | N.m | Kg.m | W | N.m | Kg.m | A | ||
| SGP01S-A130-14150-120 | 3-12.0V | 4.5 | 100 | 0.2 | 87 | 0.5 | 0.066 | 0.675 | 0.4 | 0.265 | 2.7 | 1.25 |
| SGP01S-A130-18100-220 | 3-12.0V | 3.0 | 50 | 0.2 | 40 | 0.3 | 0.120 | 1.233 | 0.6 | 0.393 | 4.003 | 2.15 |
Q1: Are you a trading company or a manufacturer?
A: We are a factory. We specialize in micro DC motors and DC gear motors for more than 14 years.
Q2: What is the payment term for a new customer?
A: We can draw up an Ali Assurance Order Online for our new customer, which can be paid online with Master Card, Visa, etc. Customers can also pay with PayPal or TT etc.
Q3: I can't find a suitable motor on your website, can you customize the motor for me?
A: Yes, we can customize a suitable motor according to our customer's requirements.
Q4: Do you have certificates for the motors?
A: Yes, we have CE, FCC, ISO, etc. If you have other certificate requirements, we can apply for them for you.
Q5: How is your Quality Control?
A: We have professional checking staff on every production line process. After finishing the whole motor, we have dedicated machines to test the motor. These include Hardness Testers, 2.5D Image Testers, Salt Spray Chambers, Life Testers, Temperature Test Machines, Noise testers, etc.
Q6: What is the voltage range supported by these micro gear motors?
A: These motors support a working voltage range of 3.0V to 12.0V, with typical rated options such as 3.0V and 4.5V depending on standard model configurations.
