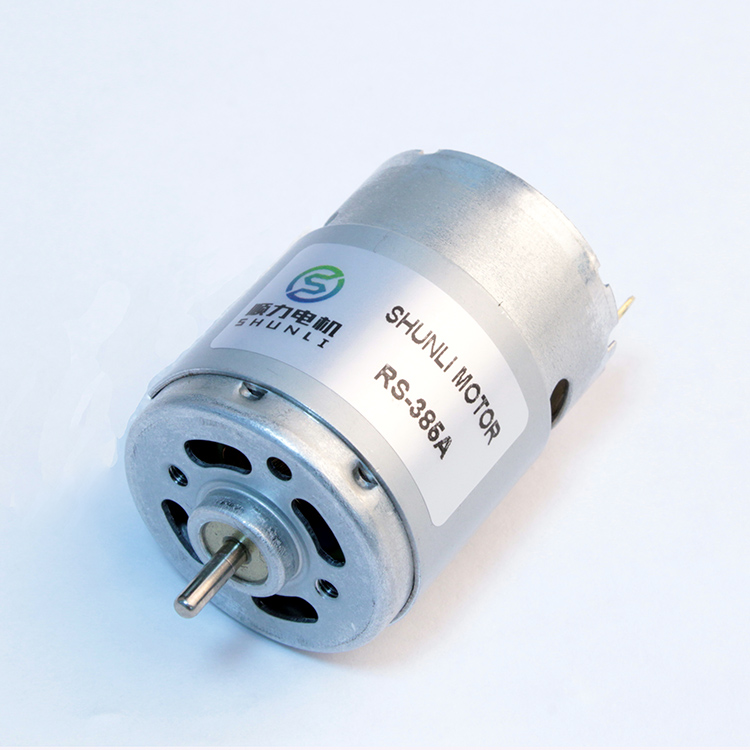

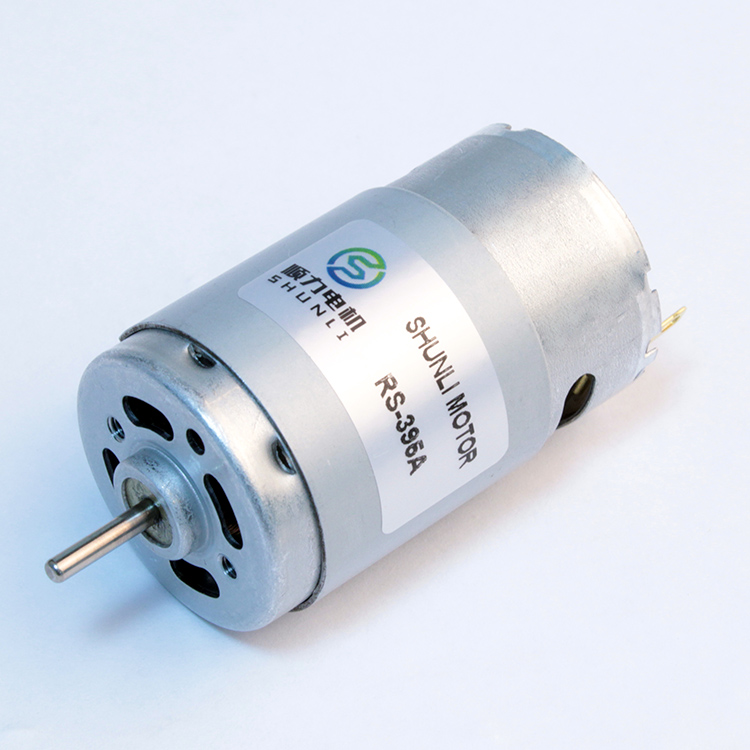

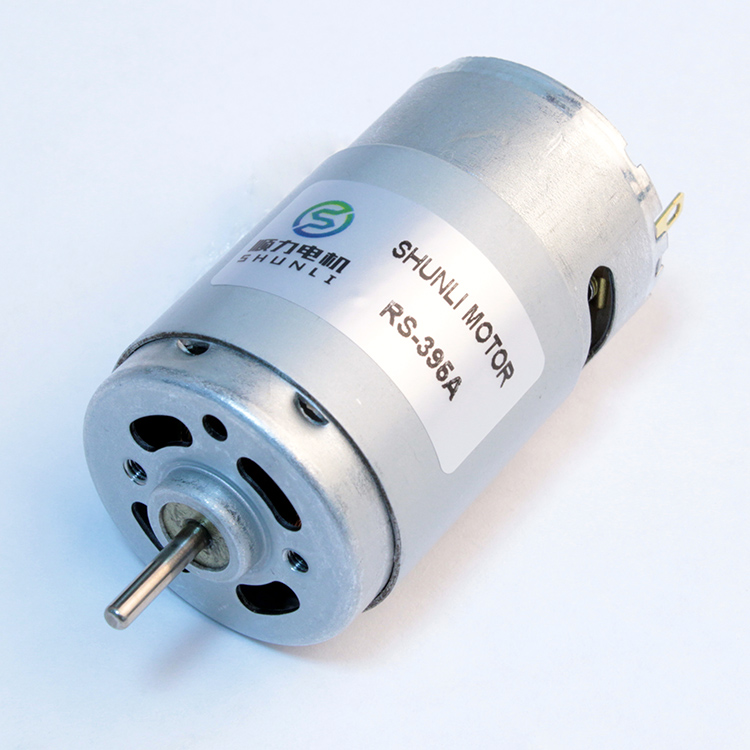

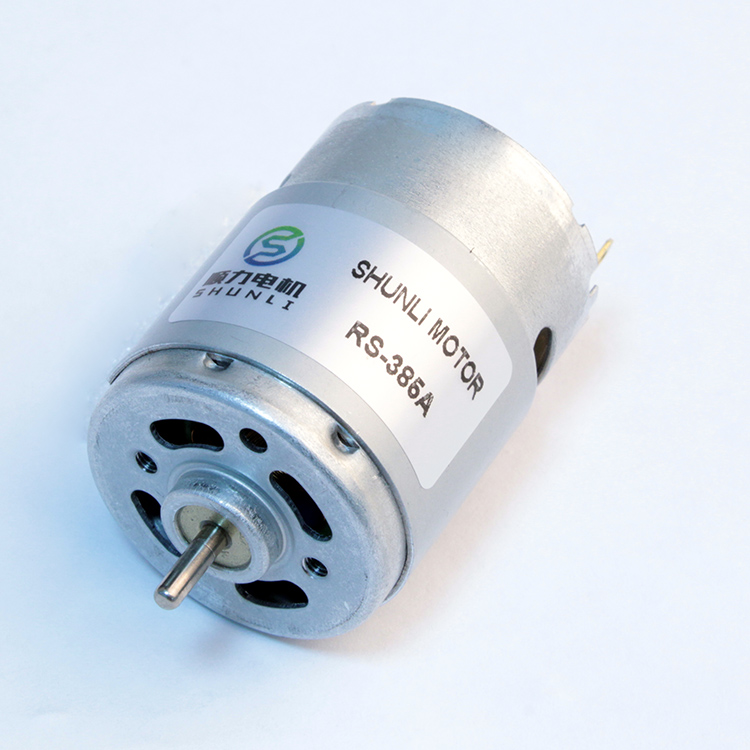

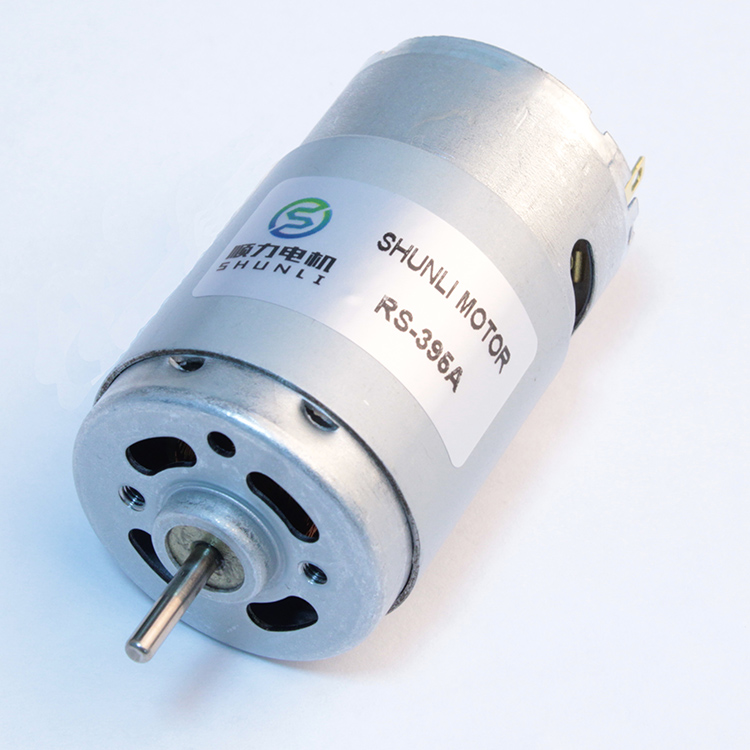

Shunli RS-380 RS-385 Micro 380 DC Motor 12V~24V 13000RPM High Speed Large Torque for Electric Drill Garden Tools Toy Model
Product Description
Product Description
RS-380 RS-385 Micro 380 DC Motor 12V~24V 13000RPM High Speed Large Torque for Electric Drill Garden Tools Toy Model
Product Details

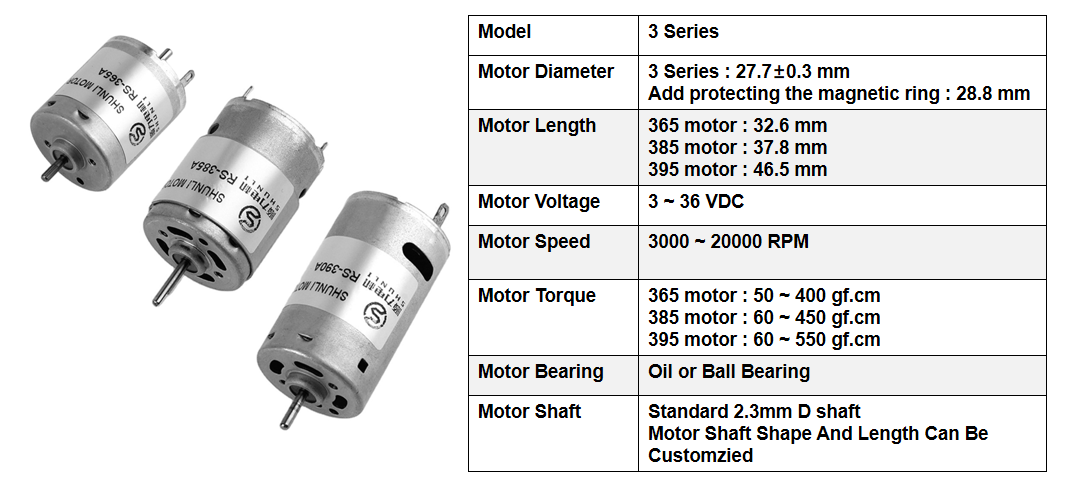

Motor Customized Specification, Please contact me.
Reference Drawings

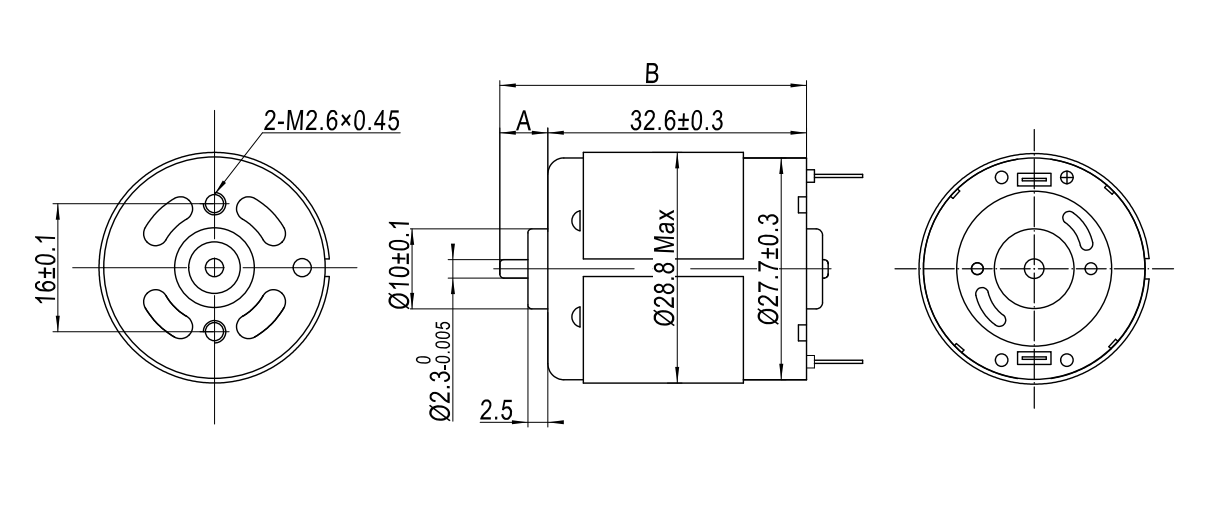

------ RS - 365

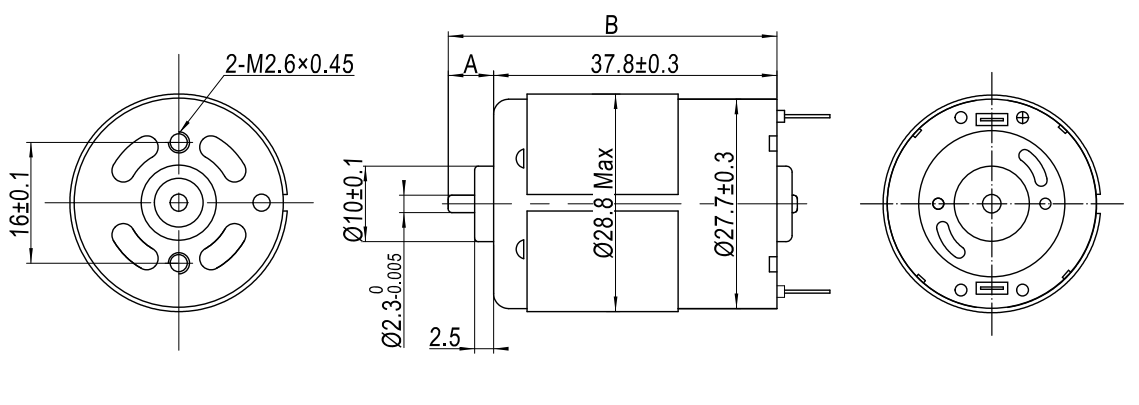

------ RS - 385

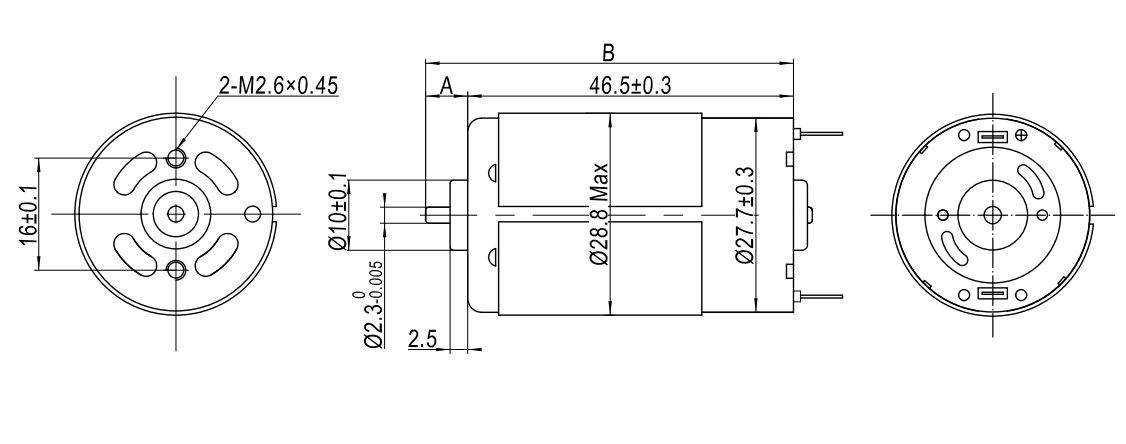

------ RS - 395
The length of shaft can be customized, Please contact me.
Reference Datasheet
| PMDC MOTOR Technical Data | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Model | Rated Voltage (V) | No-Load | Rated | Stall | |||||||
| Operating Range | Nominal | Speed (RPM) | Current (A) | Speed (RPM) | Current (A) | Torque (mN.m / gf.cm) | Power (W) | Current (A) | Torque (mN.m / gf.cm) | ||
| RS-390SH | 20156R | 6.0~12.0 | 12VDC | 5000 | 0.08 | 4243 | 0.33 | 6.07 / 61.9 | 2.72 | 2.22 | 42.2 / 430 |
| 2975 | 6.0~12.0 | 12VDC | 12000 | 0.29 | 10165 | 0.33 | 5.75 / 58.6 | 1.31 | 8.9 | 80.4 / 820 | |
| RS-395SH | 15130 | 6.0~12.0 | 12VDC | 3650 | 0.66 | 2949 | 0.25 | 5.83 / 59.5 | 1.8 | 1.06 | 30.4 / 310 |
| 15100R | 6.0~24.0 | 24VDC | 10300 | 0.07 | 8893 | 0.38 | 7.09 / 72.3 | 6.68 | 2.66 | 54.9 / 560 | |
Recommend Product
Frequently Asked Questions
What is the operating voltage range of these micro DC motors?
The operating voltage ranges from 6.0V to 24.0V depending on the specific model. Check the reference datasheet to choose the appropriate nominal voltage for your application.
Can the shaft length be customized?
Yes, the shaft length and overall motor configurations can be customized to fit your specific device design requirements.
What are the primary applications for the RS-380 and RS-385 series?
These micro DC motors are commonly used in electric drills, garden tools, home appliances, toy models, and other high-speed, high-torque utility devices.
How fast can these motors run?
Depending on the voltage rating and load, these micro motors can achieve no-load speeds up to 13,000 RPM (with specific models reaching 12,000 RPM at 12VDC).
Are these motors energy efficient?
Yes, they are engineered to provide maximum power output with optimized power consumption, making them highly suitable for battery-powered portable tools.
