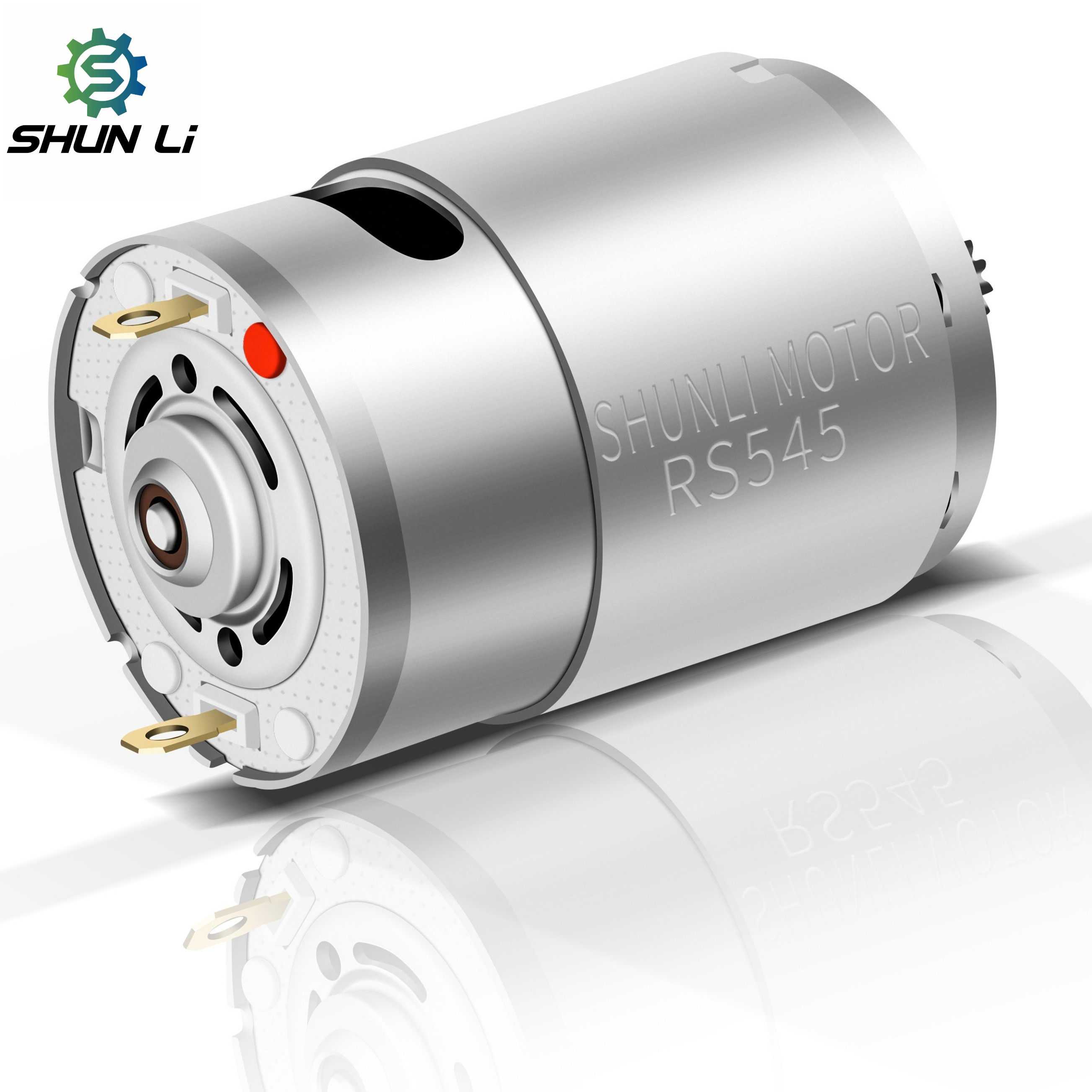

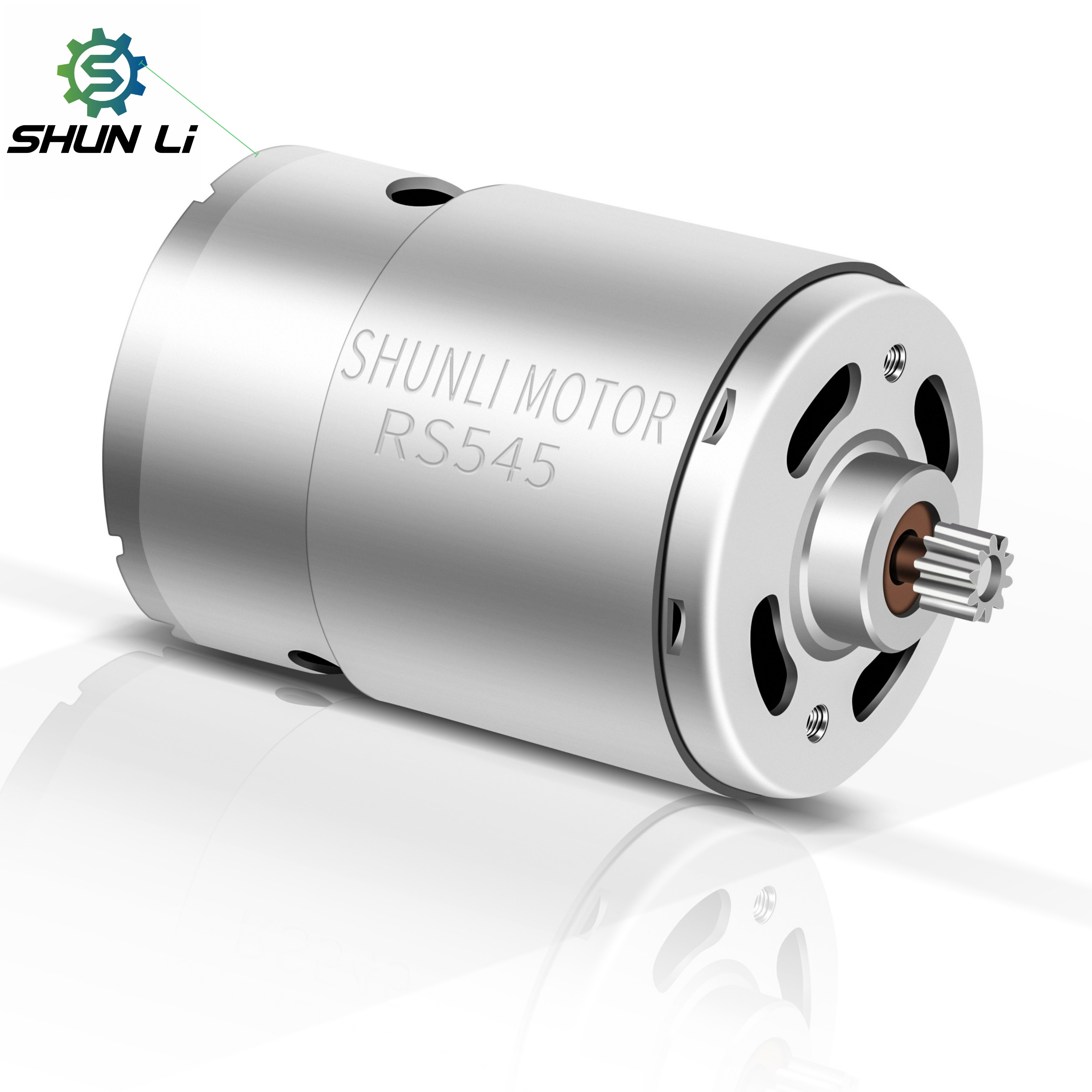

SRS-555 Dc Motor 12v 24v Micro Dc Motor for Toys
Product Description
Product Description
SRS-555 12v 24v micro dc motor for water pump
Motor Customized Specification is available. Please contact us for details.

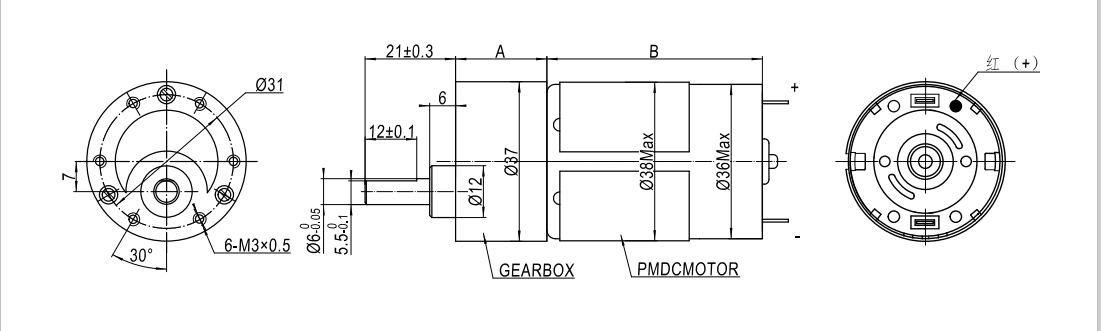

Reference Drawings
RS - 545 A
RS - 555 A
RS - 575 A
The length of the shaft can be customized upon request.
Reference Datasheet
| PMDC MOTOR Technical Data | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Model | Rated Voltage(V) | No-Load | Rated | Stall | |||||||
| Operating Range | Nominal | Speed | Current | Speed | Current | Torque | Power | Current | Torque | ||
| RPM | A | RPM | A | mN.m / gf.cm | W | A | mN.m / gf.cm | ||||
| RS-550H | 23128R | 6.0~24.0 | 24VDC | 4500 | 0.1 | 3932 | 0.39 | 25.7/262 | 10.6 | 4.8 | 204/2080 |
| 6034 | 6.0~12.0 | 12VDC | 16000 | 1.12 | 13613 | 4.96 | 25.6/261.3 | 40.36 | 48.89 | 281.4/2870 | |
| RS-555H | 3540 | 6.0~12.0 | 12VDC | 7800 | 0.3 | 6708 | 1.84 | 21.9/223.4 | 15.35 | 11.31 | 156/1591 |
| 23100 | 6.0~24.0 | 24VDC | 7000 | 0.14 | 6004 | 0.77 | 19.2/195.8 | 12.09 | 4.2 | 124.5/1270 | |

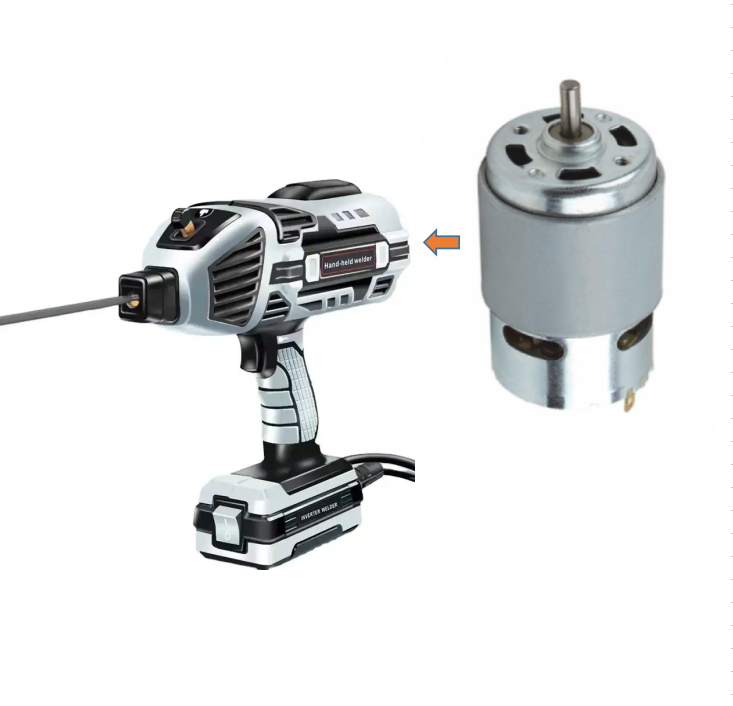

Applications
Certifications
Frequently Asked Questions
Q1: Are you a trading company or a manufacturer?
A: We are a factory. We specialize in micro DC motors and DC gear motors with over 14 years of professional manufacturing experience.
Q2: What is the payment term for a new customer?
A: We can set up an Online Assurance Order, which allows payments via Master Card, Visa, etc. Customers can also make payments using PayPal or T/T.
Q3: I can't find a suitable motor on your website, can you customize it for me?
A: Yes, we can customize and design a suitable motor based on our customers' specific performance and dimensional requirements.
Q4: Do you have certificates for your motors?
A: Yes, our products are compliant with CE, FCC, ISO, and other relevant standardizations. If you require other specific certificates, we can assist in applying for them.
Q5: How do you handle Quality Control?
A: We have dedicated QA/QC inspectors stationed at every stage of the production line. The finished products undergo thorough testing using advanced quality assessment machinery, including Hardness Testers, 2.5D Image Testers, Salt Spray Chambers, Life Cycle Testers, Temperature Test Chambers, and Noise Level meters.
Q6: Can the motor shaft length be customized?
A: Yes. Both the motor shaft length and specific performance ratings (voltage, speed, and torque) can be tailored to meet your requirements.
