Manufacturer Worm 755 Dc Motor 6 Volt Gear Small Micro 12v 15000rpm Permanent Magnet Brush Home Appliance
Product Description
Product Description
6v 12v high rpm 9000rpm 15000rpm 750/755 dc motor
Product Details
Motor Customized Specification, Please contact us.

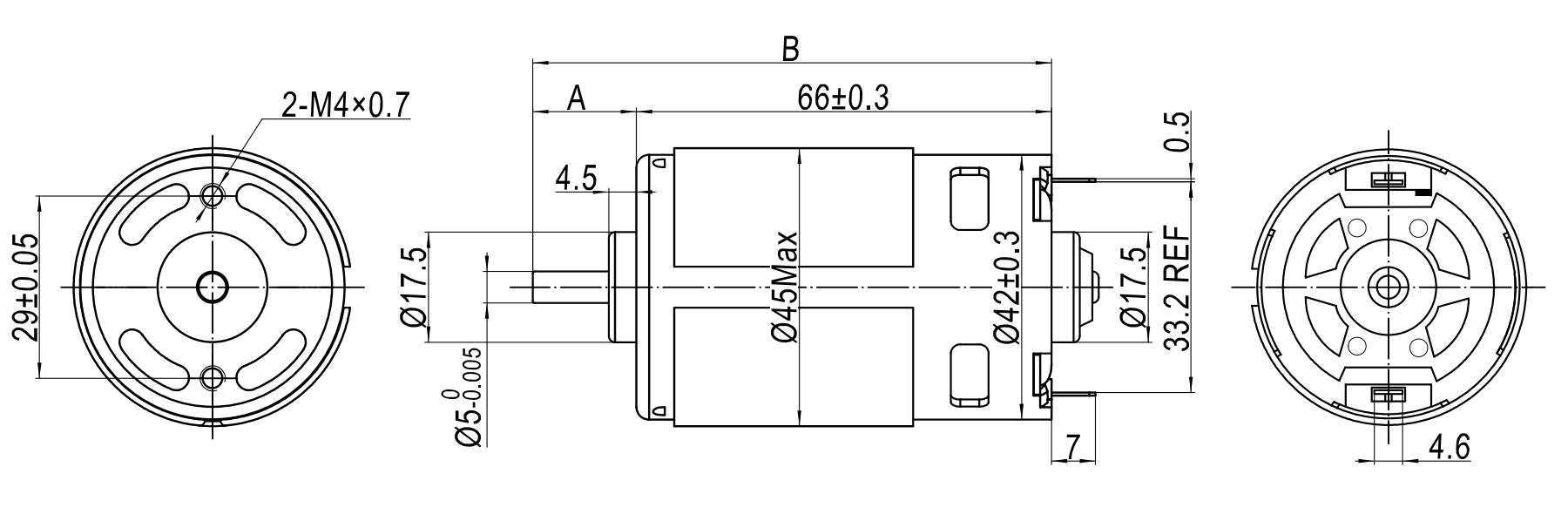

Reference Drawing
------ RS - 755 H
------ RS - 775 H
The length of shaft can be customized, Please contact us.

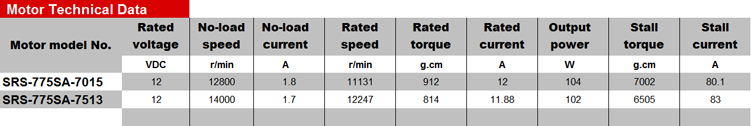

| PMDC MOTOR Technical Data | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Model | Rated Voltage (V) | No-Load | Rated | Stall | |||||||
| Operating Range | Nominal | Speed (RPM) | Current (A) | Speed (RPM) | Current (A) | Torque (mN.m / gf.cm) | Power (W) | Current (A) | Torque (mN.m / gf.cm) | ||
| RS-750H | 7032R | 6.0~12.0 | 12 VDC | 15000 | 1.79 | 12671 | 7.52 | 48.6/496 | 66.6 | 55.6 | 393.1/4010 |
| RS-755H | 7512R | 3.0~6.0 | 6 VDC | 9500 | 2.26 | 8123 | 9.31 | 45.1/460 | 38.2 | 66.34 | 306.9/3130 |
Application
Certifications
Why Choose Us
1. Our Factory
We are a factory specialized in producing motors for more than 14 years. With three specialized manufacturing facilities, a professional R&D team, mature management, and an experienced engineering sales team, we ensure a smooth and professional business experience.
2. Quality Control
To guarantee the highest quality standards, every step of the process—from incoming material inspection to final shipment—is carefully checked. Consistent quality is the foundation of our development.
3. Our Service
Gold seller status in possession of high credibility.
100% on-time delivery rate, ensuring your products arrive on schedule.
Standard samples produced within 2 weeks; customized samples within 3 weeks.
Timely response—your messages and inquiries will be replied to within 2 hours.
FAQ
1. Q: Are you a trading company or manufacturer?
A: We are a factory. We specialize in micro DC motors and DC gear motors with over 14 years of manufacturing experience.
2. Q: What is the payment term for a new customer?
A: We can draft an Online Assurance Order for new customers, which allows payment online via Master Card, Visa, etc. Customers can also pay via PayPal or T/T wire transfer.
3. Q: I cannot find a suitable motor on your website, can you customize the motor for me?
A: Yes, we can customize motors based on our customer's specific technical, size, and performance requirements.
4. Q: Do you have certifications for the motors?
A: Yes, we have CE, FCC, ISO, and other relevant standard credentials. If you require other specific certifications, we can apply for them on your behalf.
5. Q: How is your Quality Control managed?
A: We have professional inspection staff on every production line process. After full motor assembly, we utilize specialized testing equipment, including Hardness Testers, 2.5D Image Testers, Salt Spray Chambers, Life Testers, Temperature Test Chambers, and Noise Testers.
6. Q: How long does it take to produce samples?
A: Standard samples are generally prepared within 2 weeks, while customized specifications require approximately 3 weeks.
