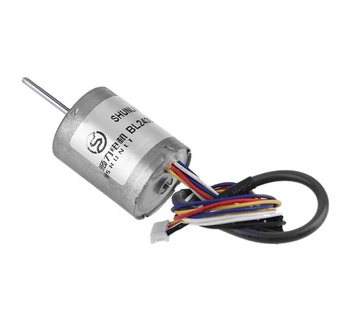

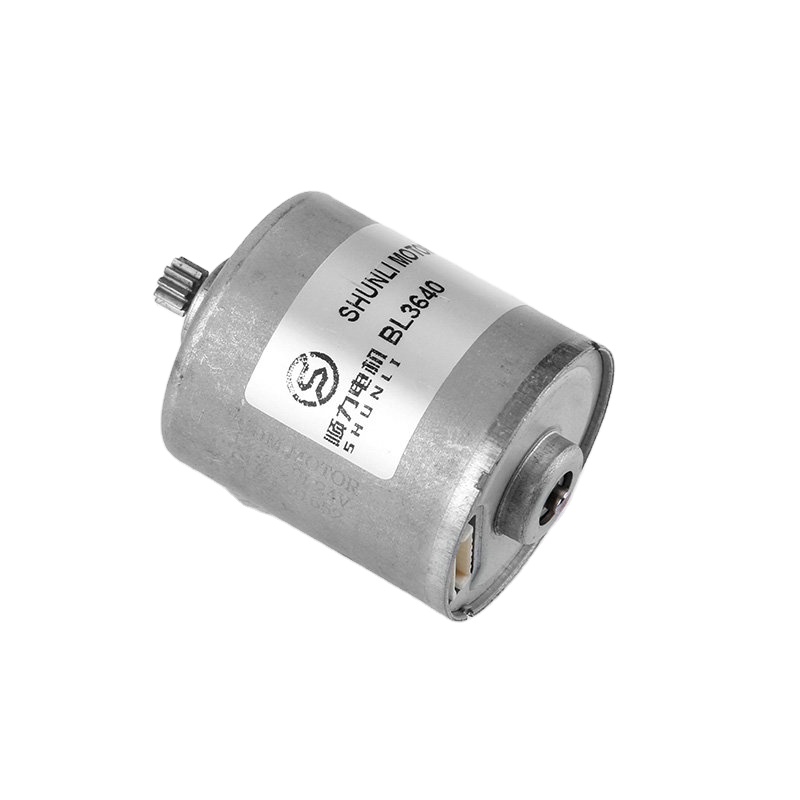

12V 18V 24V High Speed 20000 RPM 30000RPM 40000 RPM 100 G.CM 150 G.CM 36 mm Brushless DC Motor for Fan
Product Description
12V 18V 24V high speed 20000 RPM 30000RPM 40000 RPM 100 G.CM 150 G.CM 36 mm Brushless DC motor for fan
Product Details
⚙️
Motor Customized Specification, Please Contact Us.
Reference Technical Specification
BLDC MOTOR Terminations
| PIN NO. | PIN Arrangement |
|---|---|
| 1 | VCC |
| 2 | FG |
| 3 | CW/CCW |
| 4 | GND |
| 5 | PWM |
Reference Datasheet

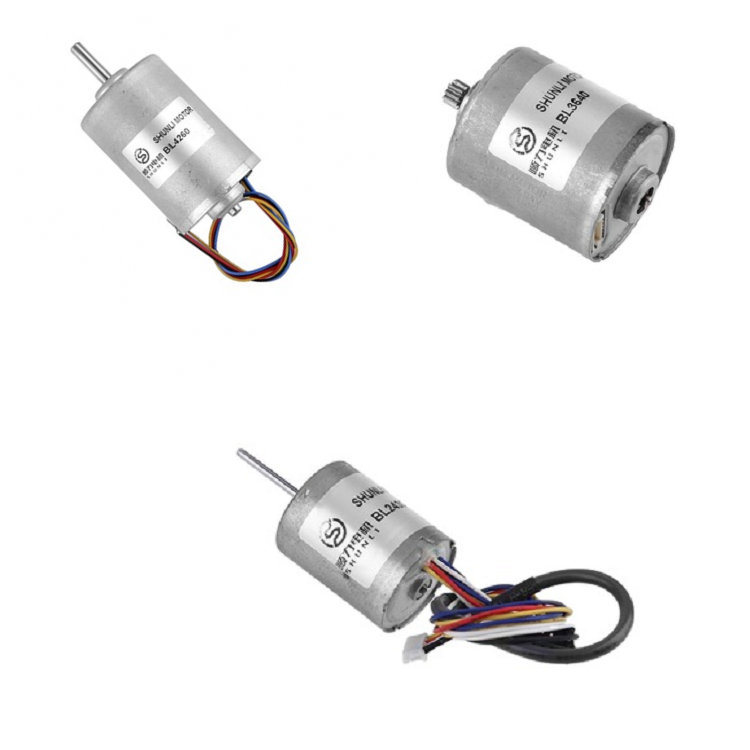

Product Showcase
❓ Frequently Asked Questions (FAQ)
What are the input voltage options for this brushless DC motor?
This high-speed brushless DC motor is designed to operate efficiently across multiple voltage configurations, including 12V, 18V, and 24V DC.
What speeds can this 36mm BLDC motor achieve?
Depending on the input voltage and specific tuning, this motor can reach ultra-high speeds of 20,000 RPM, 30,000 RPM, up to 40,000 RPM.
What is the torque rating for this high-speed motor?
The motor delivers high-performance output torque options ranging between 100 G.CM and 150 G.CM, ideal for high-pressure cooling fans and blowing applications.
How are the electrical terminals structured for this BLDC motor?
The motor features a 5-PIN termination interface: PIN 1 (VCC) for Power, PIN 2 (FG) for Feedback/Tachometer signal, PIN 3 (CW/CCW) for Direction control, PIN 4 (GND) for Ground, and PIN 5 (PWM) for Pulse Width Modulation speed control.
Can I customize the mechanical and electrical specifications of the motor?
Yes, we support comprehensive customization for specifications including voltage configuration, speed ranges, torque profiles, shaft designs, and mounting dimensions. Please contact our support team for customized requests.
