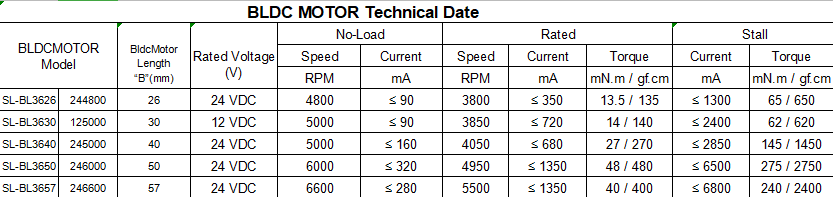

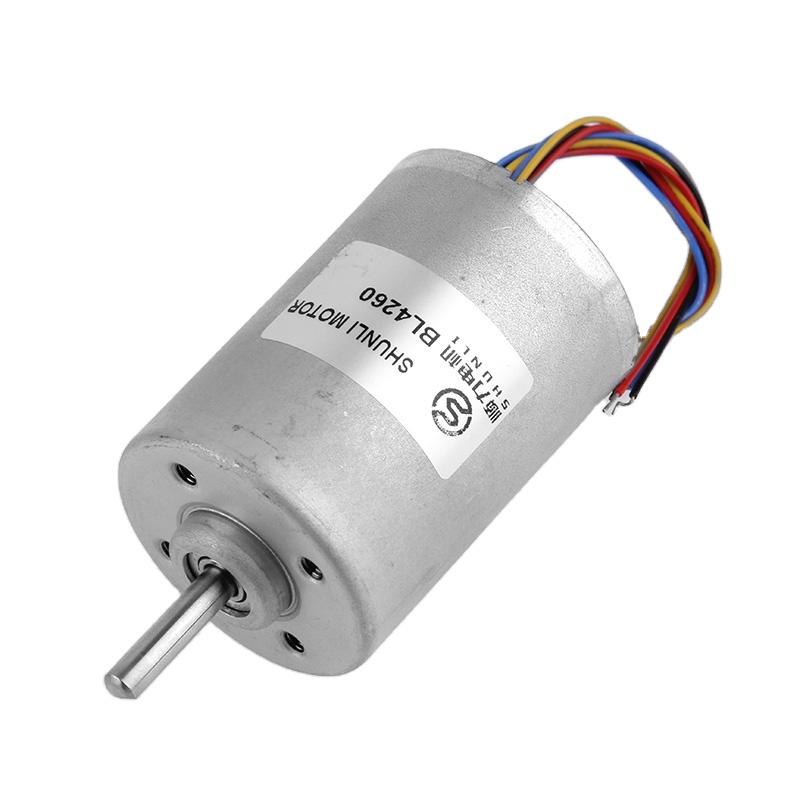

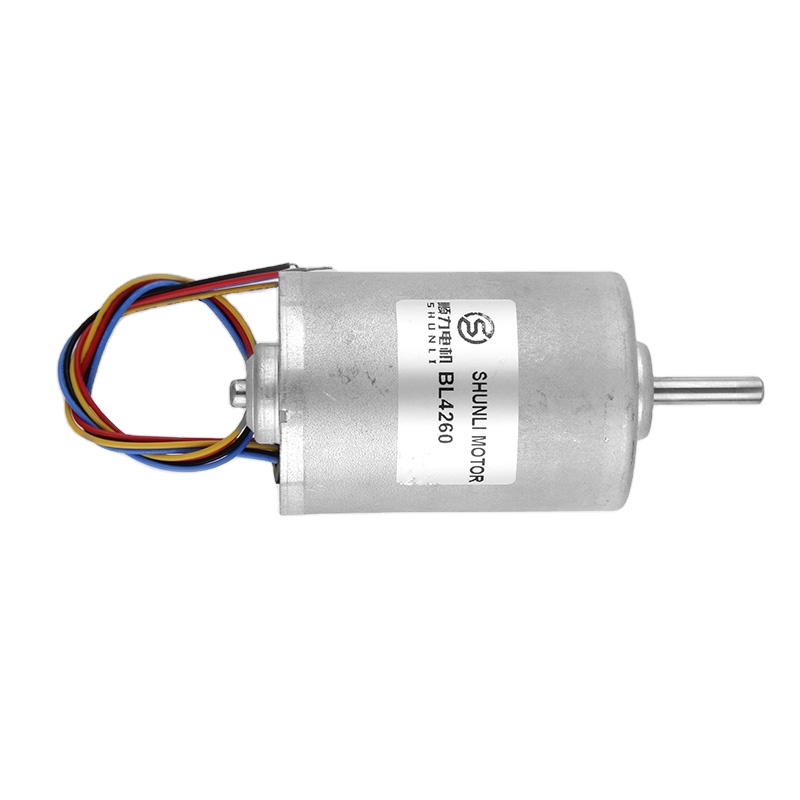

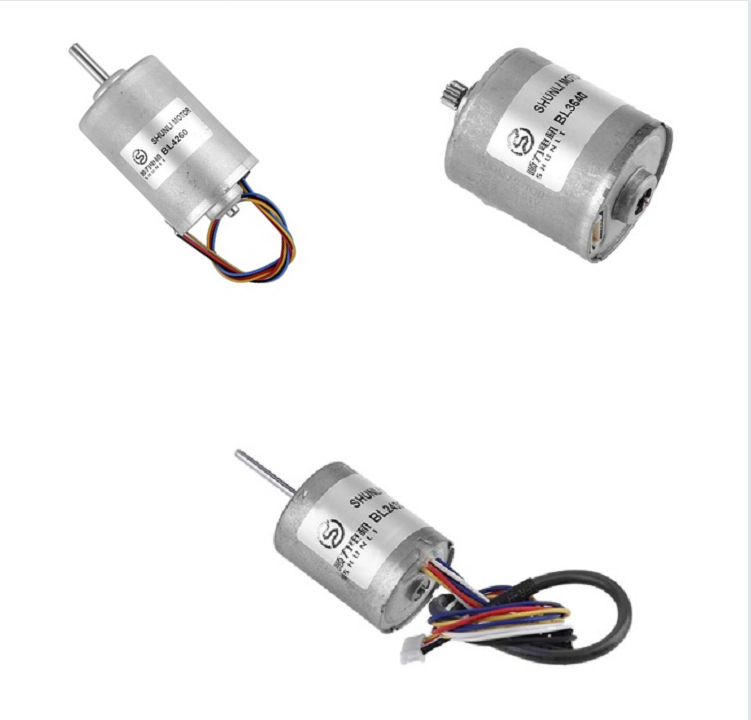

Q1: What voltage options are available for this brushless DC motor?

A1: This micro permanent magnet brushless DC motor is designed to operate efficiently across multiple voltage options, including 12V, 18V, and 24V configurations, depending on your application requirements.

Q2: What speed ratings (RPM) can this motor achieve?

A2: The motor is engineered for high performance with reference speed options of 1500 RPM, 3000 RPM, and 4000 RPM.

Q3: What are the primary applications for this micro BLDC motor?

A3: With its high torque and durable permanent magnet design, this motor is ideal for washing machines, RC planes, DIY technical tools, fans, robotic systems, and fluid pumps.

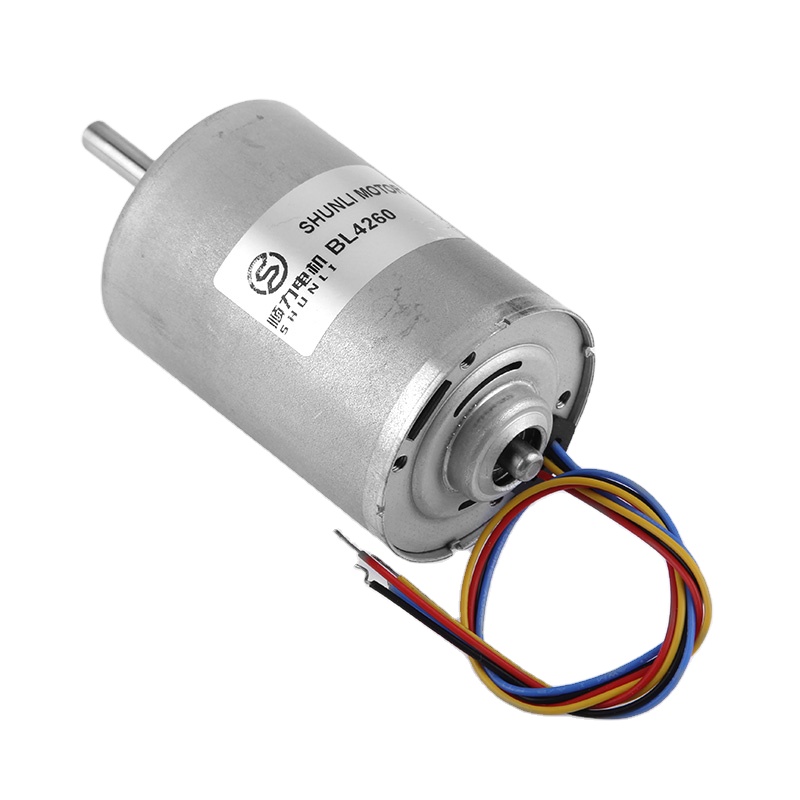

Q4: How is the BLDC motor wiring terminated?

A4: The motor features a 5-pin termination interface: Pin 1 (VCC) for power input, Pin 2 (FG) for speed signal output, Pin 3 (CW/CCW) for direction control, Pin 4 (GND) for ground connection, and Pin 5 (PWM) for speed control adjustment.

Q5: Can I request customized motor specifications?

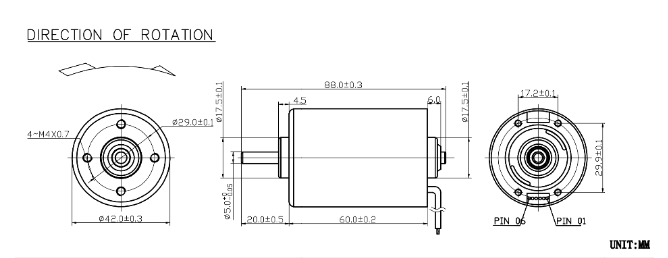

A5: Yes. The technical parameters, mounting dimensions, and shaft configurations of our brushless motors can be customized to suit your specific project requirements.
