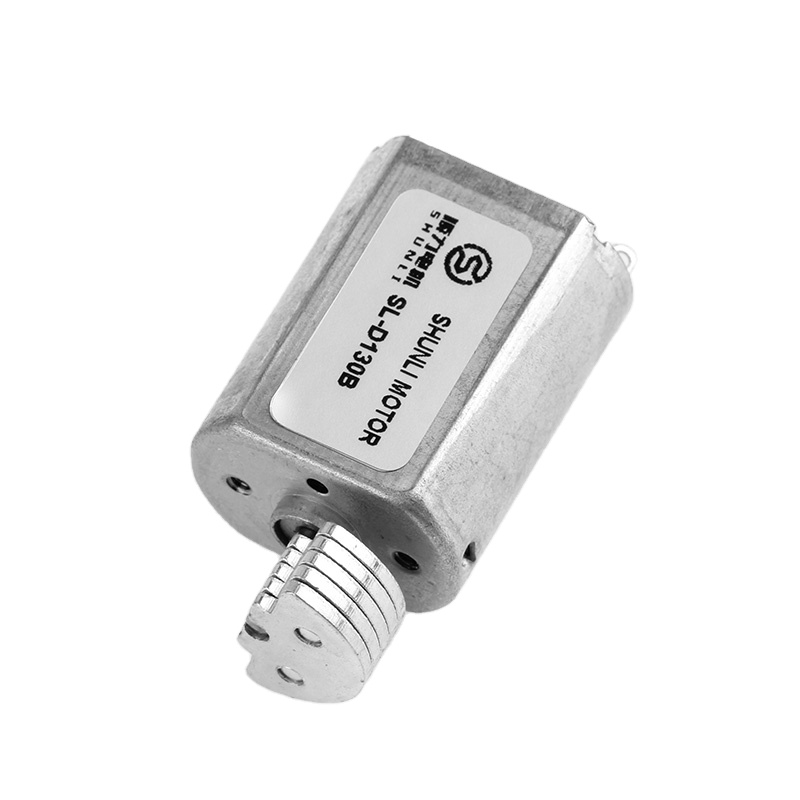

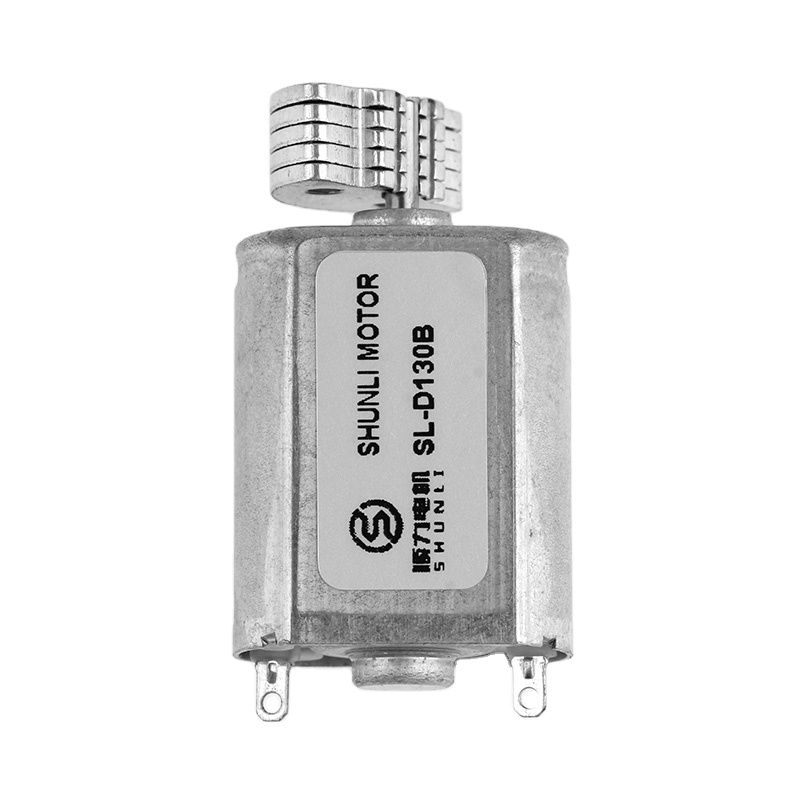

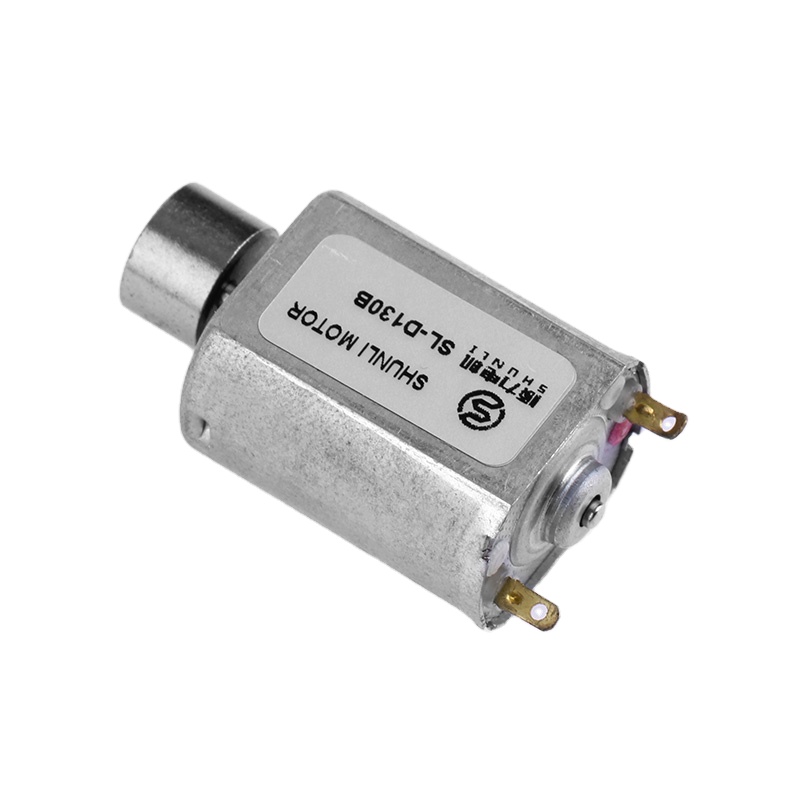

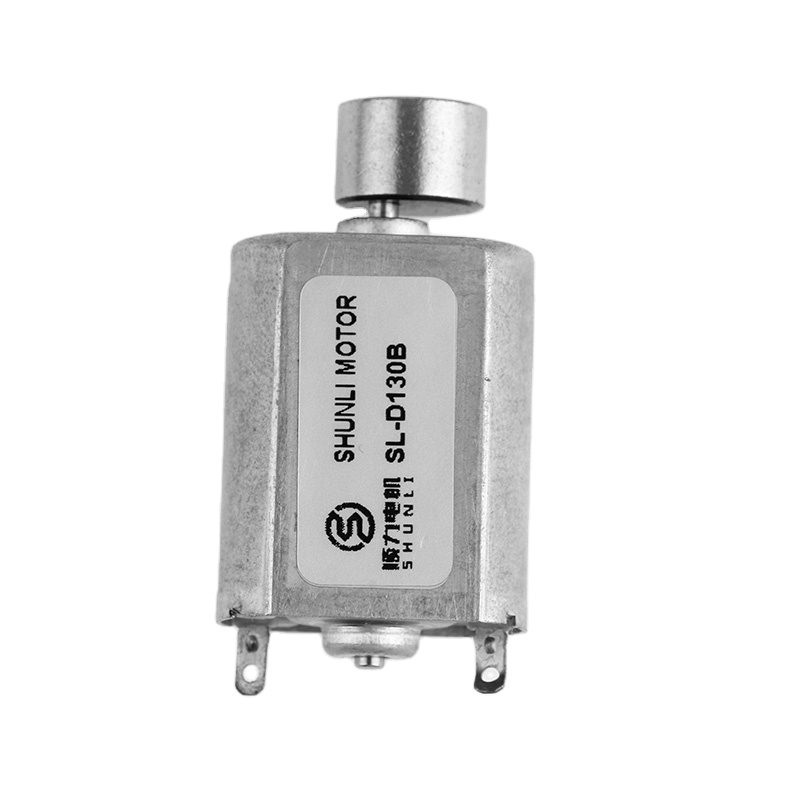

Small Electric Magnetic N20 3v Dc Vibration Motor
Product Description
| PMDC MOTOR Technical Data | ||||||||
|---|---|---|---|---|---|---|---|---|
| PMDC MOTOR Model | Eccentric size | Voltage (V) | Rated | Stall | ||||
| Operating Range | Nominal | Start Voltage | Speed | Current | Current | |||
| RPM | mA | mA | ||||||
| SL-DN20 | 08250 | R5.8*4.8 | 3.0~5.0 | 4VDC | 1.2VDC | 7600 | 110 | 380 |
| 08200 | R5.8*3.6 | 3.0~5.0 | 3.7VDC | 0.8VDC | 8500 | 130 | 480 | |
| 12110 | R5.8*6.0 | 1.5~3.0 | 2.4VDC | 0.8VDC | 9100 | 330 | 1100 | |
| 10145 | R5.8*2.4 | 1.5~4.0 | 3.VDC | 0.6VDC | 10600 | 160 | 700 | |
We are a factory specializing in producing motors for more than 14 years, operating three factories. Our professional R&D team, mature management, and experienced engineers ensure a high-quality production standard and a pleasant purchasing experience.
To guarantee absolute quality, every step of the process—from receiving raw materials to final shipment—is carefully checked and monitored. Continuous quality improvement is the foundation of our business development.
We are a highly trusted manufacturer with a strong reputation in the micro DC motor industry.
Efficient shipping schedules guarantee that your products arrive exactly on time.
Standard samples are ready within 2 weeks. Customized motor samples are completed within 3 weeks.
Our professional customer support team will reply to all inquiries within 2 hours.
We are a dedicated factory. We have specialized in micro DC motors and DC gear motors for over 14 years.
We can set up secure online orders, allowing payment via Master Card, Visa, and similar credit options. We also accept payments through PayPal, TT, and other major methods.
Yes, we can customize a motor's technical parameters and features to meet your specific application requirements.
Yes, our motors are certified with CE, FCC, ISO, and other relevant industry standards. If you need other specific certifications, we can apply for them.
We have dedicated quality control inspectors assigned to every process of the production line. Final motors undergo comprehensive checks using specialized equipment including Hardness Testers, 2.5D Image Testers, Salt Spray Chambers, Life Testers, Temperature Test Machines, and Noise Testers.
We can customize the operating voltage, nominal speed, current, lead wires, connector configurations, as well as the eccentric wheel dimensions and weight to suit your vibration feedback intensity needs.
